Amesbury P3000 Multipoint Lock Gear – 45mm Backset, 92mm PZ, 36" Handle Height

Amesbury P3000 Multipoint Lock Gear – 45mm Backset, 92mm PZ, 36" Handle Height

SKU: 16-30017LA

$150.80 - $150.80
$150.80
$150.80 - $150.80
$150.80
  • PZ: 92mm (3-5/8")
  • Backset: 45mm (1-3/4")
  • Faceplate Width: 16mm (5/8")
  • Handle Height: 36" (914mm)
  • Lower Rhino Hook: 24.87" (632mm)
  • Configuration: 5-point system with Rhino hooks and shootbolts
  • Key Position: Above handle
  • Compatible with multiple upper extensions for various door heights
  • Requires separate upper extension based on door panel height
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Not sure this is the right part?
Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .
*We have a fully-staffed customer support team happy to help!

Amesbury P3000 Multipoint Lock Gear – 45/92, 36" Handle (16-30017LA)

This Amesbury P3000 multipoint lock gear is designed for 5-point locking systems featuring Rhino hooks and shootbolts. The key cylinder is positioned above the handle for convenient access.

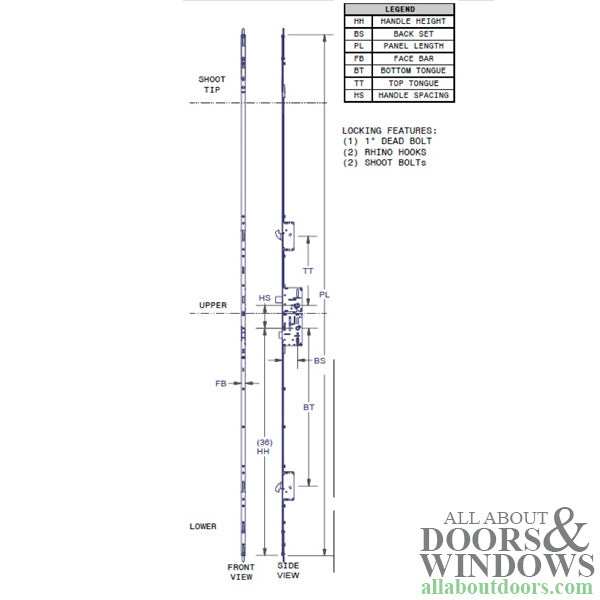

The gear features a 45mm (1-3/4 inch) backset, 92mm (3-5/8 inch) PZ (handle spacing), and a 36-inch (914mm) handle height. The faceplate width measures 16mm (5/8 inch). The lower Rhino hook is positioned at 24.87 inches (632mm) from the handle center.

This P3000 gear is designed to work with multiple upper extensions depending on your door panel height. Select the appropriate upper extension based on your door size for a complete multipoint locking solution.

Technical Information

  • Lock Type: 5-point multipoint with Rhino hooks and shootbolts
  • Key Position: Above handle
  • Backset: 45mm (1-3/4 inches)
  • PZ (Handle Spacing): 92mm (3-5/8 inches)
  • Faceplate Width: 16mm (5/8 inch)
  • Handle Height: 36 inches (914mm)

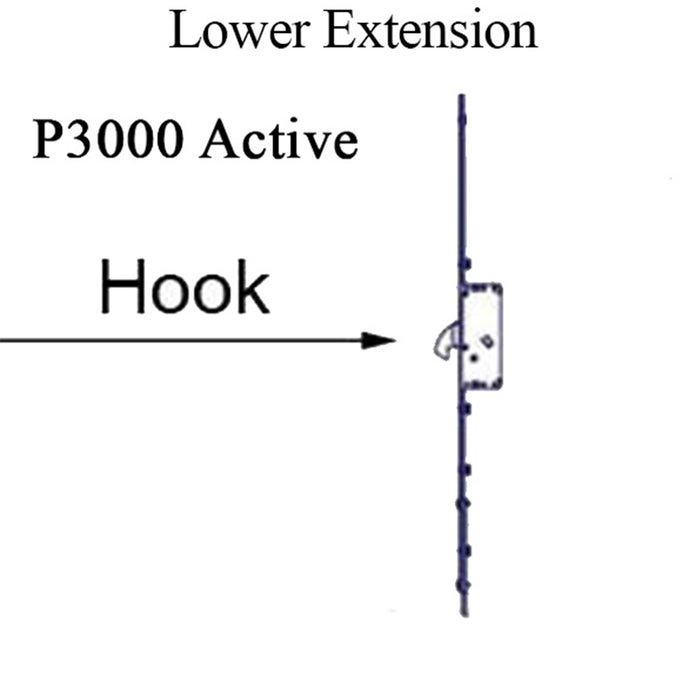

  • Lower Rhino Hook Position: 24.87 inches (632mm)

Related Parts

  • Upper (Middle) Extensions:
    • 664530017UA - For doors 69-82.5 inches, upper hook at 14.47 inches
    • 664530018UA - For doors 82-95.5 inches, upper hook at 27.47 inches
    • 664530019UA - For doors 95-108.5 inches, upper hook at 40.47 inches
    • 664530020UA - For doors 108-121.5 inches, upper hook at 53.47 inches
  • Top Shootbolt Extension: 16-3468
  • Latch and Deadbolt Strike Plates: Curved lip 3475-82, Flat lip 3476-82, Passive 3477-82
  • Shootbolt Strike Plates: Single 3087 (replace with 2098911), Double 3088
  • Rhino Hook / Tongue Strike Plates: 2856-82
  • Passive Gear for Double Doors: 16-30013LA (16mm faceplate, 45/92, 36 inch handle height)

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

How do I choose the right upper extension for this P3000 gear?

Select the upper extension based on your door panel height: 664530017UA for 69-82.5 inch doors, 664530018UA for 82-95.5 inch doors, 664530019UA for 95-108.5 inch doors, or 664530020UA for 108-121.5 inch doors.

What is a Rhino hook in a multipoint lock system?

A Rhino hook is a heavy-duty locking hook that engages into a strike plate on the door frame, providing enhanced security and resistance to forced entry compared to standard hooks.

What does 'key above handle' mean?

This indicates that the key cylinder is positioned above the door handle, which is a common European-style configuration for multipoint locks.
