HOPPE Spindles & Set Screws for Multipoint Locks

HOPPE spindles and set screws are essential components for connecting lever handles to multipoint lock mechanisms. This collection includes split shaft spindles, panic spindles, handle bushings, and stainless steel set screws sized for standard door thicknesses from 1-3/8 inch sliding doors to 2-3/4 inch thick entry doors.

Hoppe HLS7 Series Multipoint Lock Spring Cartridge – Key-Above-Handle

$1.40 - $1.40
$1.40
$1.40 - $1.40
$1.40

Hoppe HLS7 Spring Cartridge (2702170)This Hoppe spring cartridge is designed specifically for HLS7 Series multipoint lock trim hardware in key-abov...

View full details
$1.40 - $1.40
$1.40
$1.40 - $1.40
$1.40

Hoppe Clear Plastic Handle Bushing – 11/16" Handle Diameter

$0.36 - $0.36
$0.36
$0.36 - $0.36
$0.36

Hoppe Clear Handle Bushing (649798)This clear plastic handle bushing is designed to work with most Hoppe and Fuhr door handles. The bushing provide...

View full details
$0.36 - $0.36
$0.36
$0.36 - $0.36
$0.36

Hoppe Split Shaft Spindle – 8mm x 120mm for 45mm Doors

$9.85 - $9.85
$9.85
$9.85 - $9.85
$9.85

Hoppe Split Shaft Spindle – 8mm x 120mm (517565)This Hoppe 517565 split shaft spindle measures 5/16 x 4-11/16 inches (8mm x 120mm) and is designed ...

View full details
$9.85 - $9.85
$9.85
$9.85 - $9.85
$9.85

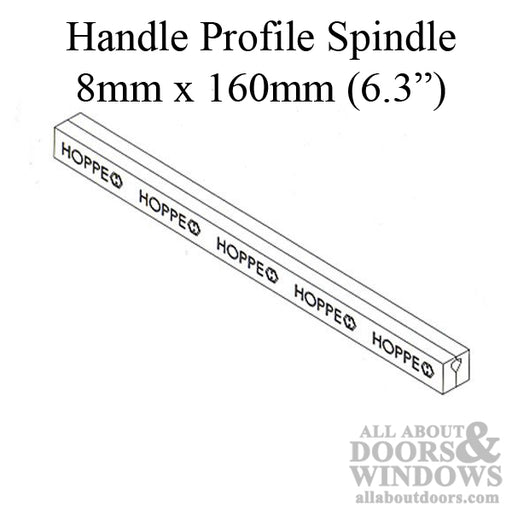

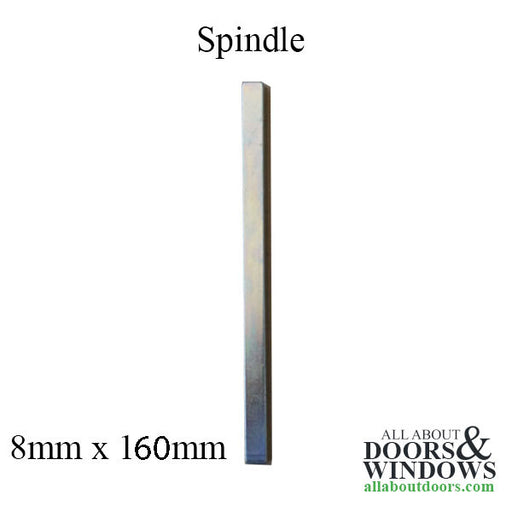

Hoppe Split Shaft Spindle for HL S9000 – 8mm x 160mm, 2-3/4" to 3" Doors

$4.94 - $4.94
$4.94
$4.94 - $4.94
$4.94

Hoppe Split Shaft Spindle – 8mm x 160mm (519200)This Hoppe 519200 split shaft spindle measures 8mm x 160mm (5/16 x 6-1/4 inches) and is designed fo...

View full details
$4.94 - $4.94
$4.94
$4.94 - $4.94
$4.94

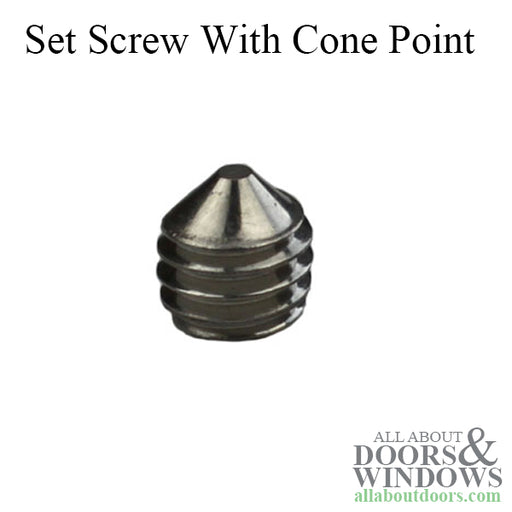

Hoppe Set Screw for Lever Handle – M6 x 12mm, Stainless Steel

$1.85 - $1.85
$1.85
$1.85 - $1.85
$1.85

Hoppe Set Screw – M6 x 12mm, Stainless Steel (2294874)This Hoppe set screw is designed for use with Hoppe and Fuhr lever door handles. It secures t...

View full details
$1.85 - $1.85
$1.85
$1.85 - $1.85
$1.85

Hoppe Gold Tone Plastic Handle Bushing

$0.81 - $0.81
$0.81
$0.81 - $0.81
$0.81

Hoppe Gold Tone Handle Bushing (386060)This gold tone plastic handle bushing is designed to work with most Hoppe and Fuhr door handles. The bushing...

View full details
$0.81 - $0.81
$0.81
$0.81 - $0.81
$0.81

Hoppe Square Panic Spindle – 8mm x 120mm for 1-3/4" Doors

$18.69 - $18.69
$18.69
$18.69 - $18.69
$18.69

Hoppe Square Panic Spindle – 8mm x 120mm (87107098)This Hoppe square panic spindle is designed specifically for use with Hoppe Multitronic electron...

View full details
$18.69 - $18.69
$18.69
$18.69 - $18.69
$18.69

Quick Connect Handleset Spindle – 1-3/4" Door Thickness, 4-3/4" Length

$9.85 - $9.85
$9.85
$9.85 - $9.85
$9.85

Quick Connect Spindle – 1-3/4" Door (519170)This spindle is designed for use with Quick Connect handleset trim on doors with a 1-3/4 inch (45mm) th...

View full details
$9.85 - $9.85
$9.85
$9.85 - $9.85
$9.85

Hoppe Quick Fit Spindle for 2-1/4" Doors – 5-1/2" Length

$9.85 - $9.85
$9.85
$9.85 - $9.85
$9.85

Hoppe Quick Fit Spindle – 2-1/4" Door (519194)This Hoppe solid spindle is designed for use with Quick Connect (Quick Fit) handle set trim on doors ...

View full details
$9.85 - $9.85
$9.85
$9.85 - $9.85
$9.85

Replacement Hardware Part – 7011950

$1.01 - $1.01
$1.01
$1.01 - $1.01
$1.01

Hardware Part (7011950)This is a replacement hardware component with SKU 7011950. Due to limited product information available, please contact our ...

View full details
$1.01 - $1.01
$1.01
$1.01 - $1.01
$1.01

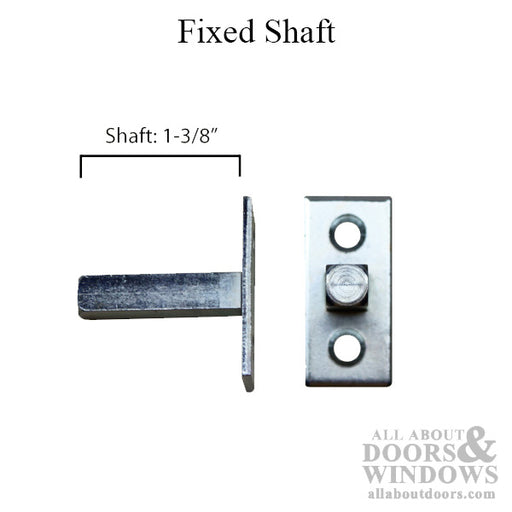

Hoppe Fixed Shaft for Dummy Handle – 1-3/8" Shaft, 1-3/4" Door

$15.89 - $15.89
$15.89
$15.89 - $15.89
$15.89

Hoppe Fixed Shaft for Dummy Handle (8750331)This Hoppe fixed shaft is designed for use with Hoppe dummy handles on standard 1-3/4 inch (45mm) thick...

View full details
$15.89 - $15.89
$15.89
$15.89 - $15.89
$15.89

Hoppe Square Panic Spindle – 8mm x 140mm for 2-1/4" Doors

$18.69 - $18.69
$18.69
$18.69 - $18.69
$18.69

Hoppe Square Panic Spindle – 8mm x 140mm (87107099)This Hoppe square panic spindle is designed for use with Hoppe Multitronic multipoint electronic...

View full details
$18.69 - $18.69
$18.69
$18.69 - $18.69
$18.69

Hoppe Spindle Sleeve for Egress Function Lock – 1-3/16" Length

$13.36 - $13.36
$13.36
$13.36 - $13.36
$13.36

Hoppe Spindle Sleeve (524631)This stainless steel spindle sleeve is designed to increase the diameter of Hoppe spindles for compatibility with Hopp...

View full details
$13.36 - $13.36
$13.36
$13.36 - $13.36
$13.36

Hoppe 2-Piece Spindle for HLS9000 Sliding Door Handleset – 4-1/4" Length, 1-3/8" Door

$9.85 - $9.85
$9.85
$9.85 - $9.85
$9.85

Hoppe 2-Piece Spindle – HLS9000, 1-3/8" Door (517596)This 2-piece spindle is designed specifically for Hoppe HLS9000 sliding door handlesets. The s...

View full details
$9.85 - $9.85
$9.85
$9.85 - $9.85
$9.85

Hoppe Split Shaft Spindle – 8mm x 140mm for 2-1/4" Doors

$9.85 - $9.85
$9.85
$9.85 - $9.85
$9.85

Hoppe Split Shaft Spindle 8mm x 140mm (517589)This Hoppe split shaft spindle measures 8mm x 140mm (5/16 x 5-1/2 inches) and is designed for use wit...

View full details
$9.85 - $9.85
$9.85
$9.85 - $9.85
$9.85

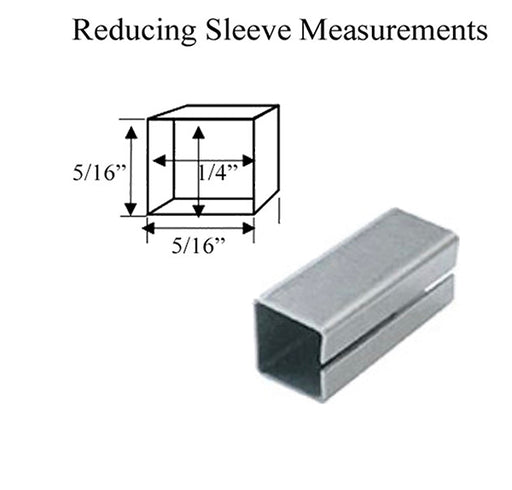

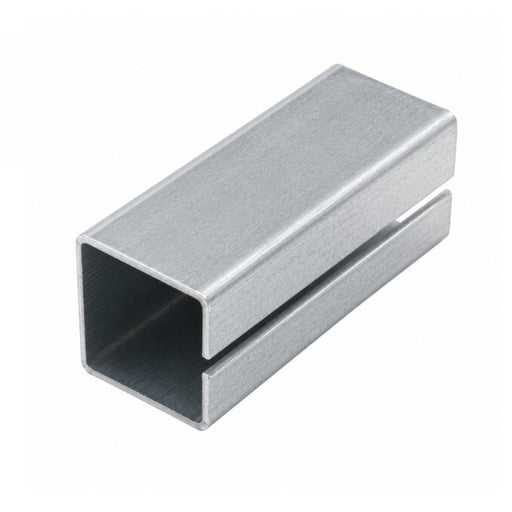

Spindle Adapter Sleeve – 7mm to 8mm Conversion

$2.24 - $2.24
$2.24
$2.24 - $2.24
$2.24

Spindle Adapter Sleeve – 7mm to 8mm (524624)This spindle adapter sleeve provides a simple solution for converting a 7mm spindle to 8mm. The square ...

View full details
$2.24 - $2.24
$2.24
$2.24 - $2.24
$2.24

Hoppe Solid Spindle for Quick Connect Trim – 2-3/4" Door, 6-9/32" Length

$10.37 - $10.37
$10.37
$10.37 - $10.37
$10.37

Hoppe Solid Spindle – 2-3/4" Door (666782)This Hoppe solid spindle is designed for use with Quick Connect handle set trim on doors with a 2-3/4 inc...

View full details
$10.37 - $10.37
$10.37
$10.37 - $10.37
$10.37

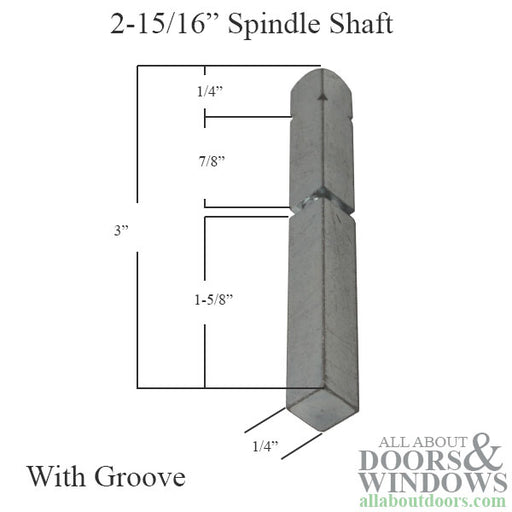

Hoppe HLS7 Solid Spindle with Groove – 2-1/2" (62.5mm)

$1.04 - $1.04
$1.04
$1.04 - $1.04
$1.04

Hoppe HLS7 Solid Spindle – 62.5mm (7192208)This Hoppe HLS7 solid spindle with groove is a semi-finished component designed for use with Hoppe HLS7 ...

View full details
$1.04 - $1.04
$1.04
$1.04 - $1.04
$1.04

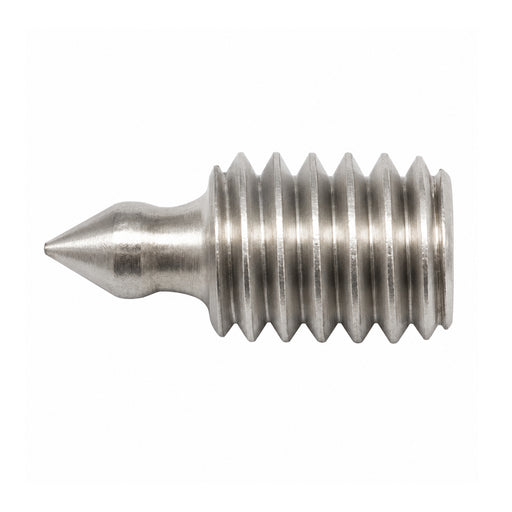

Hoppe Set Screw for Dallas Sliding Door Handle – M4 x 12mm

$4.27 - $4.27
$4.27
$4.27 - $4.27
$4.27

Hoppe Set Screw M4 x 12mm (7519321)This M4 x 12mm set screw is designed specifically for the Hoppe Dallas sliding door handle thumb latch. When you...

View full details
$4.27 - $4.27
$4.27
$4.27 - $4.27
$4.27

Hoppe HLS7 Solid Spindle with Groove – 68mm Length

$3.09 - $3.09
$3.09
$3.09 - $3.09
$3.09

Hoppe HLS7 Solid Spindle – 68mm (7196765)This Hoppe HLS7 solid spindle with groove is a semi-finished component designed for use with Hoppe HLS7 lo...

View full details
$3.09 - $3.09
$3.09
$3.09 - $3.09
$3.09

Replacement HOPPE Spindles and Set Screws for Multipoint Lock Handles

When a multipoint lock handle feels loose, wobbles, or fails to operate the lock mechanism properly, the spindle or set screw is often the culprit. MPLocks carries the complete range of HOPPE spindles designed to work with both HOPPE and Fuhr multipoint lock systems. These precision-engineered components ensure that your interior and exterior door handles connect securely through the lock case, transmitting the turning motion that retracts latch bolts and engages the multipoint lock. Whether you're replacing worn components or completing a handle installation, having the correct spindle length for your door thickness is critical for proper function.

Spindle Lengths Matched to Door Thickness

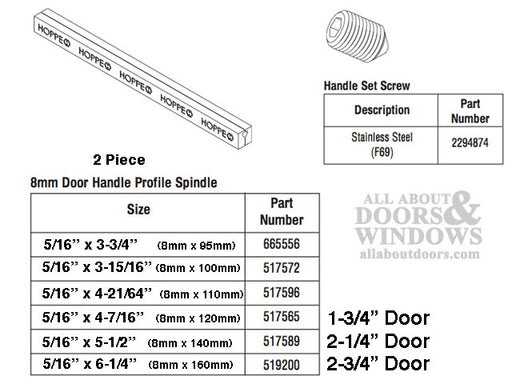

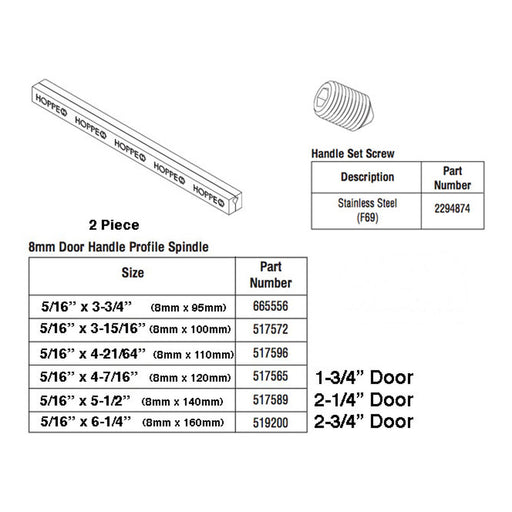

HOPPE spindles are manufactured in specific lengths to accommodate different door thicknesses commonly found in residential and commercial applications. The 110mm spindle fits 1-3/8 inch sliding doors, while the 120mm version is designed for standard 1-3/4 inch entry doors. For thicker doors, the 140mm spindle works with 2-1/4 inch doors, and the 160mm spindle accommodates doors from 2-3/4 to 3 inches thick. Using the correct spindle length ensures that handles sit flush against escutcheon plates and operate smoothly without binding or excessive play.

Two-Piece and Split Shaft Spindle Designs

This collection includes both standard two-piece spindles and split shaft configurations. Two-piece spindles are assembled during installation—the spindle is disassembled, inserted through the lock case from each side, and then connected with a screw. Split shaft spindles feature a design that allows the set screw to engage properly, creating a secure connection between handle and spindle. Panic spindles with swivel designs are also available for use with HOPPE Multitronic electronic multipoint locks, providing the panic function operation required in certain applications.

Selecting the Right Spindle and Hardware

To choose the correct spindle, first measure your door thickness accurately. Standard exterior doors are typically 1-3/4 inches thick, but older homes and custom doors may vary. The spindle width is consistently 8mm across HOPPE products, fitting the standard square hub in HOPPE lever handles. When replacing spindles, installing new set screws is strongly recommended—the M6 stainless steel set screws in this collection provide corrosion resistance and reliable handle retention. Handle bushings are also available to ensure a proper fit between lever handles and escutcheon plates.

If you're unsure which spindle length or component is right for your HOPPE multipoint lock system, our team can help you identify the correct part. Call (816) 221-6543 to speak with a knowledgeable specialist, or use our free Multipoint Lock Identifier to submit details about your hardware for expert review.
