Hoppe Multipoint Lock Replacement Kit for 93" Fuhr – 35mm Backset, 92mm PZ

SKU: 4990280-KIT

$314.42 - $314.42

$314.42

$314.42 - $314.42

$314.42

Backset: 35mm (1-3/8")
PZ: 92mm
Handle Height: 36" (914.4mm)
Bottom Roller Position: 29-1/2" (749.3mm) below handle
Faceplate Width: 16mm (5/8")
Door Height Range: 91-3/8" to 95-5/16" (2320.9mm to 2421mm)
Finish: Stainless Steel

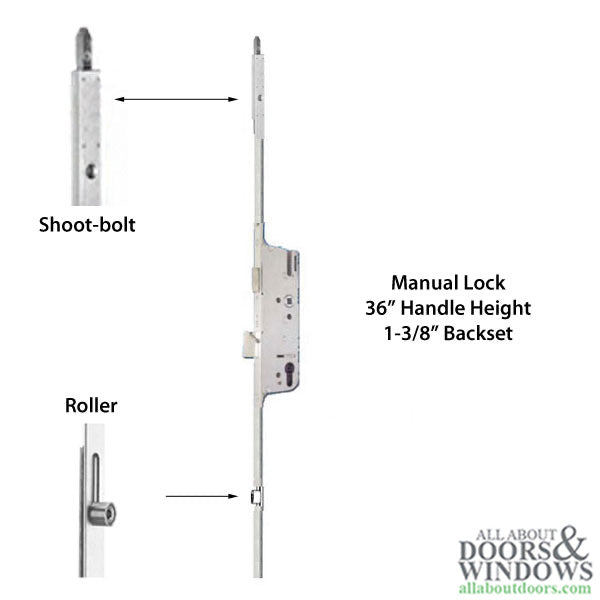

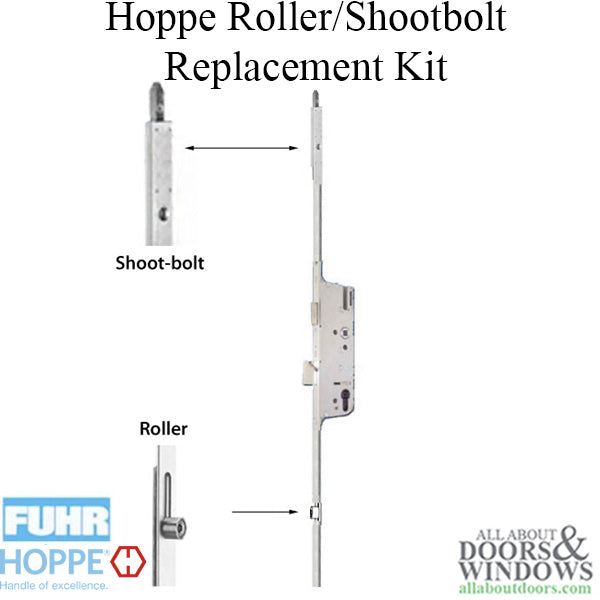

Replaces 93" Fuhr multipoint lock (automatic and manual versions)
Features bottom roller and top shootbolt (no top roller)
Must be cut to length during installation
Kit includes bottom gear, middle extension, top extension with shootbolt, socket strike, screws, and coverplate

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .

*We have a fully-staffed customer support team happy to help!

Product Details

Hoppe Multipoint Lock Replacement Kit – 35mm Backset, 92mm PZ (4990280-KIT)

This Hoppe Multipoint Lock Replacement Kit is designed to replace the 93-inch Fuhr multipoint lock in both automatic and manual versions. The kit accommodates doors ranging from 91-3/8 inches to 95-5/16 inches tall and requires cutting to the appropriate length during installation.

The replacement lock features a 35mm (1-3/8 inch) backset and 16mm (5/8 inch) faceplate width, matching the original Fuhr specifications. The handle height is 36 inches, which is 1 inch taller than the original Fuhr lock. During installation, simply cut off the extra 1-inch portion that extends past the bottom of the door using a hacksaw.

A key difference from the original Fuhr lock is the top locking mechanism. This replacement kit does not include a top roller. Instead, it uses a shootbolt at the extreme top end of the lock. The top shootbolt extension must be cut to the correct length, and a socket strike must be installed. The bottom roller remains in the same position as the Fuhr lock at 29-1/2 inches below the handle.

Technical Information

Backset: 35mm (1-3/8 inches)
PZ: 92mm
Handle Height: 36 inches (914.4mm)
Faceplate Width: 16mm (5/8 inches)
Bottom Roller Position: 29-1/2 inches below handle
Door Height Range: 91-3/8 inches to 95-5/16 inches
Finish: Stainless Steel

Kit Includes

Bottom gear
Middle extension
Top extension with shootbolt
Socket strike
Stainless steel screws
Coverplate (covers attachment seam between middle and top extensions)

Notes

Original Fuhr lock finish is Yellow Dichromate (gold); replacement kit is Stainless Steel
Original Fuhr has automatic release roller 7-1/4 inches up from handle and top roller 49-3/4 inches up from handle; this replacement has neither
Lock can be rehanded

Replaces / Replaced by

Fuhr 93" Multipoint Lock - Automatic Version (part #499010399)
Fuhr 93" Multipoint Lock - Manual Version (part #499010699)

Additional Resources

Priced and sold as a complete kit.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What is the difference between this replacement kit and the original Fuhr lock?

This replacement kit uses a shootbolt at the top instead of a top roller. It also has a 36-inch handle height (1 inch taller than Fuhr) and comes in stainless steel instead of yellow dichromate finish.

Do I need to cut this lock during installation?

Yes, the lock must be cut to fit your door height. The kit fits doors from 91-3/8 inches to 95-5/16 inches tall. You will also need to cut off the extra 1-inch portion at the bottom and trim the top shootbolt extension to the correct length.

Can I change the handing on this multipoint lock?

Yes, Hoppe multipoint locks can be rehanded. Refer to the included resources or contact us for guidance on changing the handing direction.
