Fuhr Automatic 3 Roller Multipoint Lock – 35mm Backset, 93" Length (Discontinued)

SKU: 499010399

Status: Discontinued – see replacement options below
Backset: 35mm (1-3/8")
PZ: Not specified in original data
Faceplate Width: 16mm (5/8")
Overall Length: 93" (2362mm)
Handle Height: 35" (889mm)

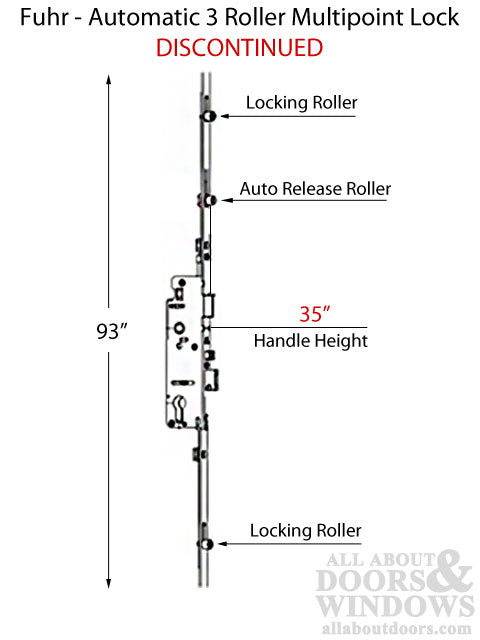

Configuration: 3 roller version – 1 auto release roller, 2 locking rollers
Auto Release Roller: 7-1/4" (184mm) up from handle cylinder
Top Roller Position: 49-3/4" (1264mm) up from handle cylinder
Bottom Roller Position: 29-1/2" (749mm) down from handle cylinder
Finish: Yellow Dichromate (gold)

This product has been discontinued and is no longer available

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .

*We have a fully-staffed customer support team happy to help!

Product Details

Fuhr 93" Automatic 3 Roller Lock (499010399)

This item is discontinued. Please see the replacement options listed below.

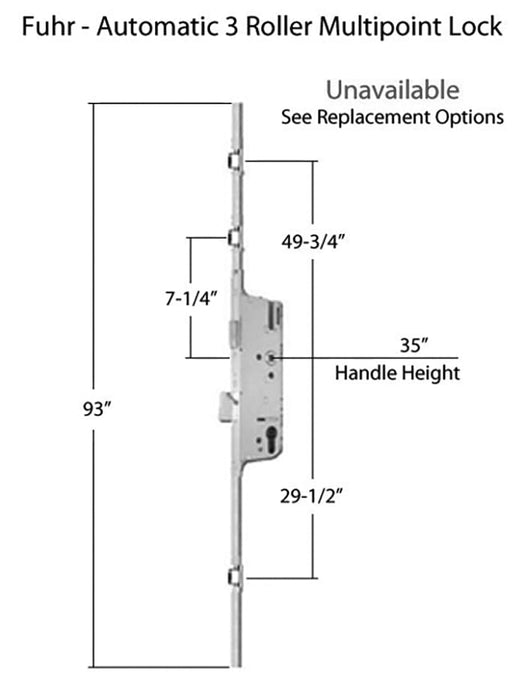

The Fuhr 93-inch Automatic 3 Roller Multipoint Lock features three rollers: one automatic release roller and two locking rollers. This lock was designed for automatic engagement when the door closes. The faceplate measures 16mm (5/8 inches) wide with an overall length of 93 inches and a handle height of 35 inches. The backset is 35mm (1-3/8 inches).

Technical Information

Backset: 35mm (1-3/8 inches)
Faceplate Width: 16mm (5/8 inches)
Overall Length: 93 inches (2362mm)
Handle Height: 35 inches (889mm)
Auto Release Roller Position: 7-1/4 inches up from handle cylinder
Top Roller Position: 49-3/4 inches up from handle cylinder
Bottom Roller Position: 29-1/2 inches down from handle cylinder
Finish: Yellow Dichromate (gold)

Replaces / Replaced by

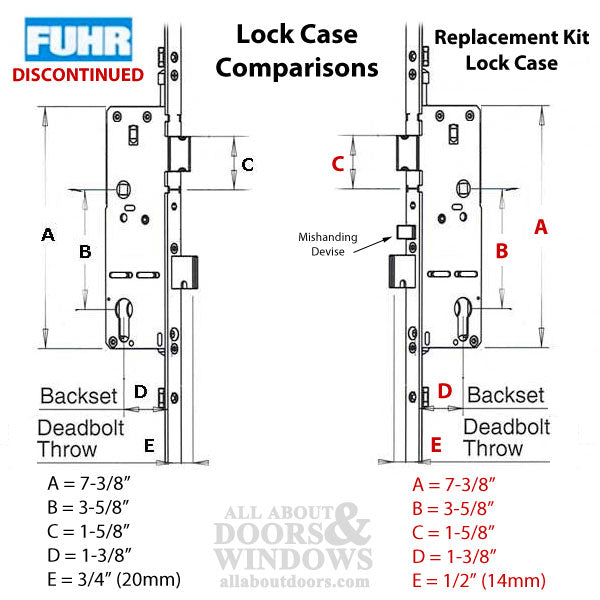

Option 1 - 4990280: Hoppe replacement with roller on bottom and shootbolt on top. This is the easiest replacement option as it does not require moving roller strikes on the door jamb. The top extension fits doors from 91-3/8 inches to 95-5/16 inches tall and will need to be cut to length. Kit includes bottom gear, middle extension, top shootbolt, socket strike, and stainless steel installation screws.
Option 2 - 4990205: Hoppe replacement with 2 rollers. This is a more complex replacement that involves moving strikes on the door jamb. Fits doors from 89-3/4 inches to 99-7/16 inches tall and will need to be cut to length. Kit includes bottom gear, top extension, and stainless steel installation screws.

Notes

Both replacement kits have a handle height of 36 inches. Replacement requires trimming 1 inch off the bottom of the new lock so the handle aligns at 35 inches to match your existing door bore holes.
Both replacement kits operate manually – unlike the original Fuhr lock, the replacements will not automatically lock when the door is closed.
For replacement guide for option 1, see: Replacing FUHR with HOPPE Roller/Shootbolt
For replacement guide for option 2, see: Replacing FUHR with HOPPE Roller
Additional resource: How to Change the Handing on a Fuhr Lock (change direction of slope of latch)

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What are my replacement options for this discontinued Fuhr lock?

There are two Hoppe replacement options: 4990280 (roller on bottom, shootbolt on top) is the easier replacement that doesn't require moving door jamb strikes, or 4990205 (2 rollers) which is more complex and requires moving strikes.

Will the replacement locks automatically engage like my original Fuhr lock?

No, both replacement kits operate manually. Unlike the original Fuhr lock, the Hoppe replacements will not automatically lock when the door is closed.

Do I need to modify the replacement lock to fit my door?

Yes, both replacement kits have a 36-inch handle height and require trimming 1 inch off the bottom so the handle aligns at 35 inches to match your existing door bore holes.
