Hoppe Multipoint Lock Replacement Kit for FUHR 93" Doors – 35mm Backset, 92mm PZ, Two Roller

SKU: 4990205-KIT

$284.58 - $284.58

$284.58

$284.58 - $284.58

$284.58

Lock Type: Manual, Two Roller
Backset: 1-3/8" (35mm)
PZ (Handle to Cylinder): 3-5/8" (92mm)
Faceplate Width: 5/8" (16mm)
Deadbolt Throw: 1" (25.4mm)

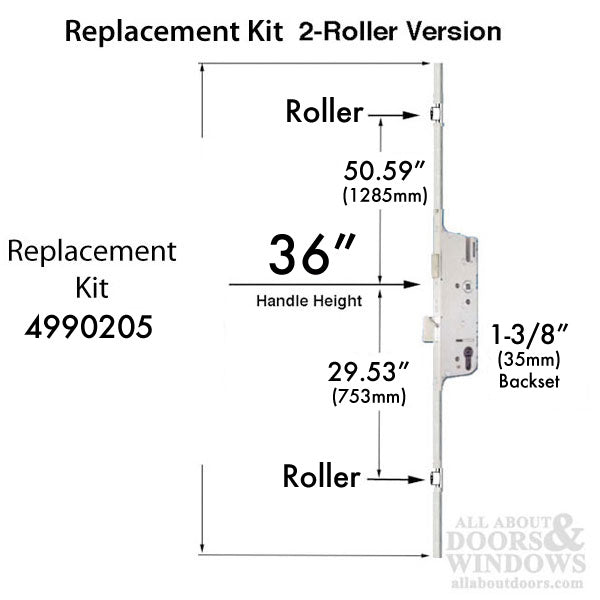

Handle Height: 36" (914mm)
Top Roller Position: 50.59" (1285mm)
Bottom Roller Position: 29.53" (750mm)
Overall Length: Fits doors 89.76" - 99.41" (2280mm - 2525mm)
Croppable: Yes, max cutoff from top extension 2.36" (60mm)
Finish: Stainless Steel
Kit includes bottom gear, top extension, and stainless steel screws

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .

*We have a fully-staffed customer support team happy to help!

Product Details

Hoppe Multipoint Lock Replacement Kit – 35/92, Two Roller (4990205-KIT)

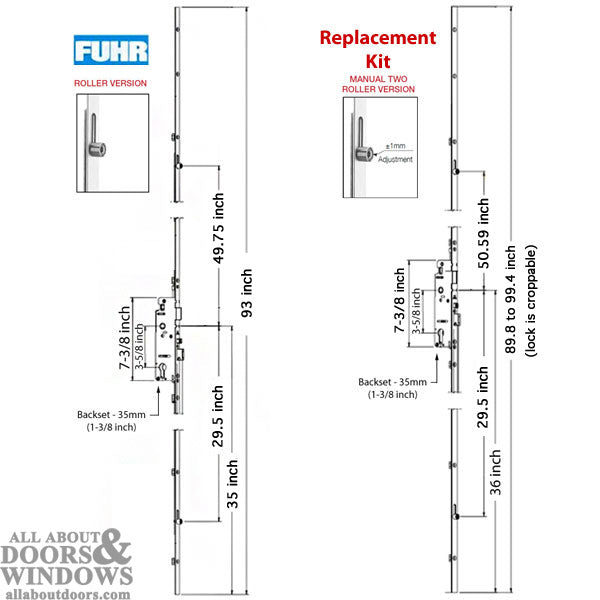

This Hoppe multipoint lock replacement kit is designed to replace both automatic and manual versions of FUHR 93-inch 2-roller multipoint locks. The kit provides a complete solution for doors equipped with Old Hoppe, Fuhr, Roto, Weather Shield, or other multipoint lock brands that may no longer be available.

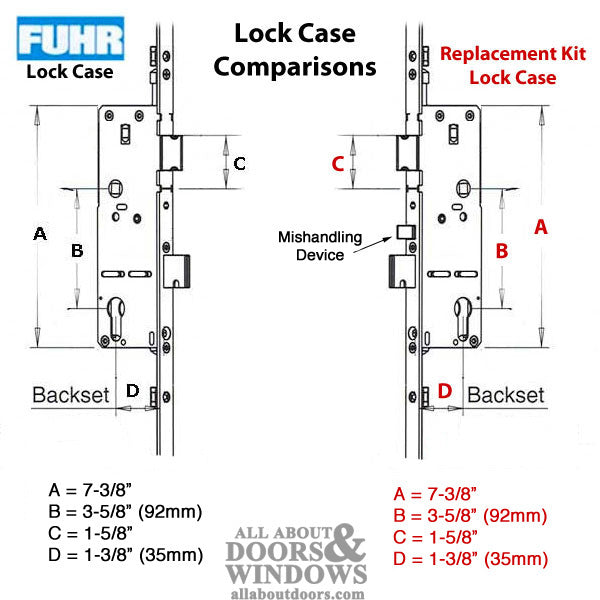

The lock features a manual operation with two rollers for secure door engagement. With a 1-3/8 inch (35mm) backset and 3-5/8 inch (92mm) PZ measurement, this kit fits a wide range of door configurations. The 5/8 inch (16mm) wide faceplate and 1 inch (25.4mm) deadbolt throw provide reliable security.

This multipoint lock can be trimmed to fit different height doors, accommodating overall door lengths from 89.76 inches to 99.41 inches (2280mm to 2525mm). The top extension allows for a maximum cutoff of 2.36 inches (60mm).

Technical Information

Lock Type: Manual, Two Roller
Backset: 1-3/8 inches (35mm)
PZ (Handle to Cylinder): 3-5/8 inches (92mm)
Faceplate Width: 5/8 inch (16mm)
Deadbolt Throw: 1 inch (25.4mm)
Handle Height: 36 inches (914mm)
Top Roller Position: 50.59 inches (1285mm)
Bottom Roller Position: 29.53 inches (750mm)
Overall Length: Fits doors 89.76 - 99.41 inches (2280mm - 2525mm)
Croppable: Yes, max cutoff 2.36 inches (60mm) from top extension

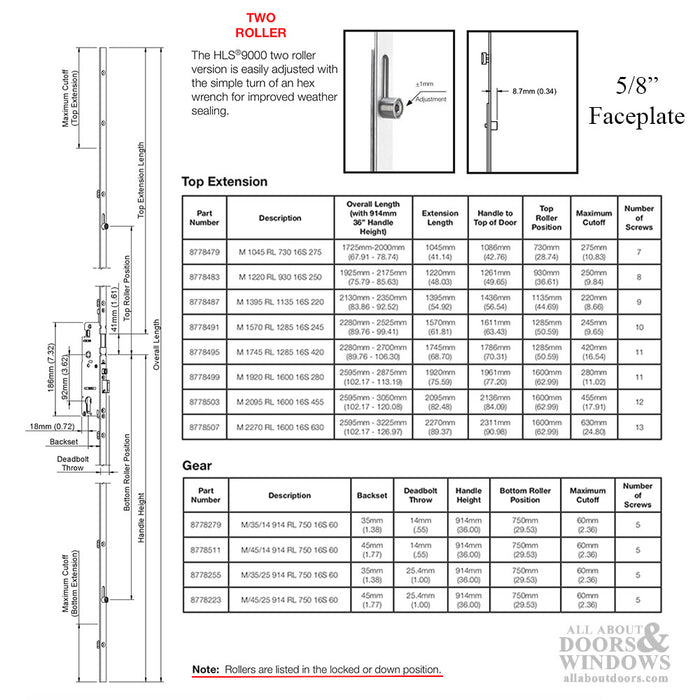

Kit Contents

8778255 - Bottom Gear with 5/8 inch wide faceplate, Manual, 1-3/8 inch backset, Bottom Roller at 29.53 inches, 1 inch deadbolt
8778491 - Top Extension with 5/8 inch wide faceplate, Roller at 50.59 inches (1285mm), Length 61.81 inches (1570mm)
8785695 - Installation Screws, 1-3/8 inch length (35mm) - Stainless Steel (20 pieces)

Notes

Rollers are measured with rollers in locked position
Lock will need to be trimmed on bottom due to difference in handle height between new and old locks
Top extension will also need trimming to fit your specific door height
Replacement process may involve modification to door jamb—roller strikes may need to be moved up or down

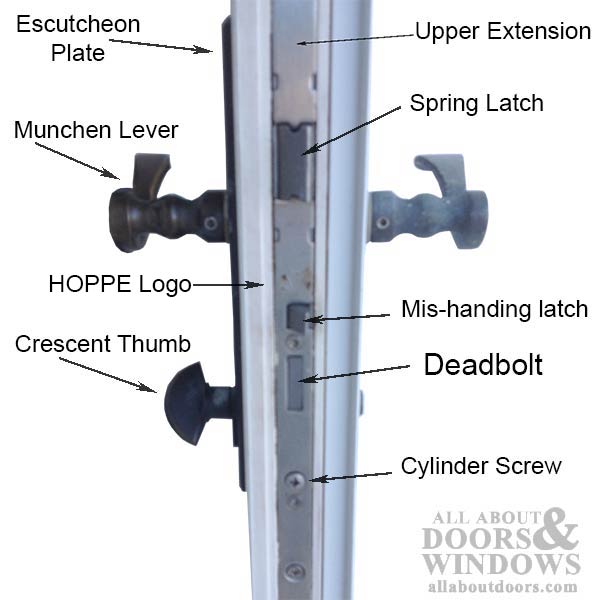

The small mis-handing latch must be depressed to operate lock

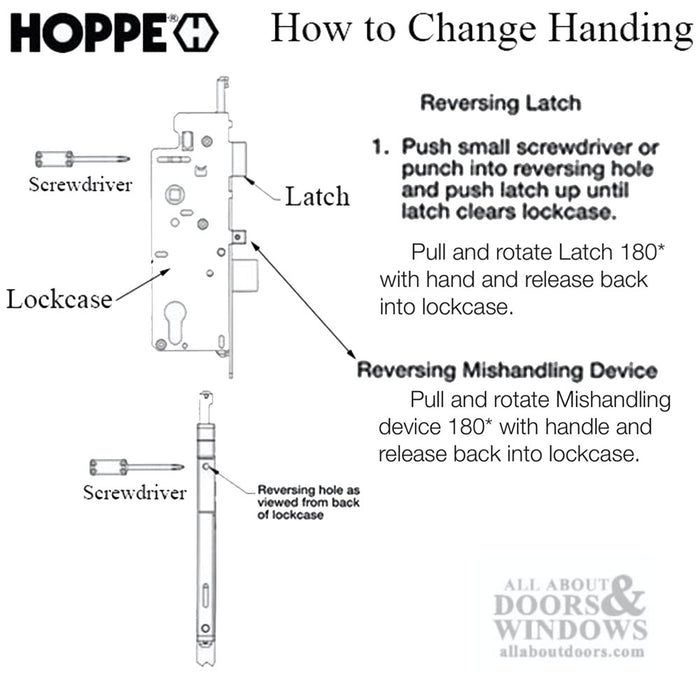

Latch handing can be changed by inserting a small screwdriver into the hole on the back of the latch, pushing forward, twisting, and releasing

Replaces / Replaced by

Replaces FUHR 93 inch 2-roller multipoint locks (both automatic and manual versions)
Replaces part #499010399
Replaces part #499010699

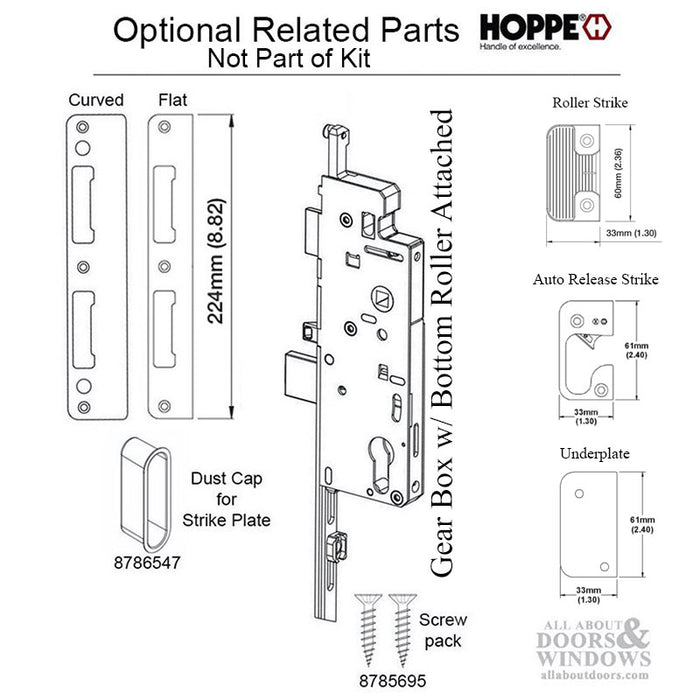

Related Parts

8783867 - Auto-Release Strike Plate - Brass
8783871 - Auto-Release Strike Plate - Nickel
8784775 - Underplate for Auto Release - Brass
8784783 - Underplate for Auto Release - Nickel
8785003 - Roller Strike Plate - Brass
8784999 - Roller Strike Plate - Nickel
1963554 - Latch & Deadbolt Strike Plate, Curved 1-3/4 inch (45mm) door - Stainless Steel
2342311 - Latch & Deadbolt Strike Plate, Flat 1-3/4 inch (45mm) door - Stainless Steel
8786547 - Dust cap for strike plate

Please confirm all measurements to ensure this is the correct replacement for your door.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

How do I trim this multipoint lock to fit my door?

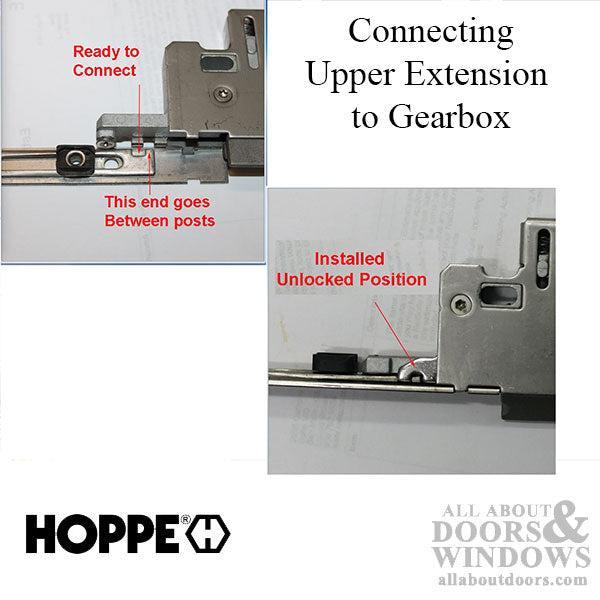

Attach the top extension to the lower assembly, lay the old and new locks side by side to determine the correct length, mark the top extension, and use a hacksaw to cut the excess from the top. The maximum cutoff from the top extension is 2.36 inches (60mm).

Can I reverse the latch handing on this lock?

Yes, insert a small screwdriver into the hole on the back of the latch, push forward, twist the latch, and release to change the handing direction.

What door heights does this multipoint lock kit fit?

This kit fits doors with overall lengths from 89.76 inches to 99.41 inches (2280mm to 2525mm) and can be trimmed to accommodate different door heights within that range.
