Hoppe 2 Roller Multipoint Lock Replacement Kit – 35mm Backset, 36" Handle Height

SKU: 4990200-KIT

$272.49 - $272.49

$272.49

$272.49 - $272.49

$272.49

Backset: 1-3/8" (35mm)
PZ: Not specified - contact us for details
Handle Height: 36" (914mm)
Faceplate Width: 5/8" (16mm)
Deadbolt Throw: 1" (25.4mm)
Top Roller Position: 28.74" (730mm) up from handle
Bottom Roller Position: 29.53" (750mm) down from handle
Door Height Range: Fits doors 67.91" to 78.74" (at 36" handle height)
Finish: Stainless Steel
Includes bottom gear, top extension, and stainless steel screws
Replaces discontinued FUHR roller multipoint locks (manual and automatic versions)

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .

*We have a fully-staffed customer support team happy to help!

Product Details

Hoppe 2 Roller Multipoint Lock Kit – 35mm Backset, 36" Handle Height (4990200-KIT)

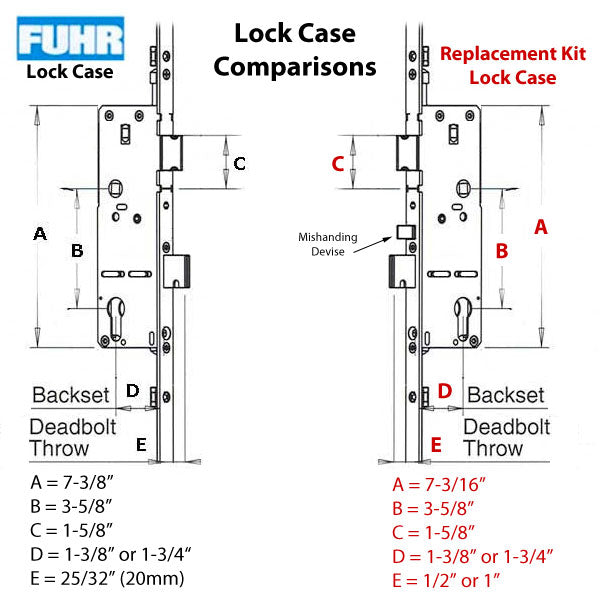

This Hoppe 2 Roller Manual Multipoint Lock Replacement Kit is designed as a direct replacement for discontinued FUHR roller multipoint locks. It works with both manual and automatic FUHR versions, including parts #499010199 and #499010299.

The complete kit includes the bottom gear, top extension, and stainless steel screws needed for installation. With a 1-3/8 inch (35mm) backset and 5/8 inch (16mm) faceplate width, this kit fits doors ranging from approximately 68 to 79 inches tall depending on handle height placement.

Technical Information

Backset: 1-3/8 inches (35mm)
Handle Height: 36 inches (914mm)
Faceplate Width: 5/8 inches (16mm)
Deadbolt Throw: 1 inch (25.4mm)
Top Roller Position: 28.74 inches (730mm) up from handle
Bottom Roller Position: 29.53 inches (750mm) down from handle
Door Height Range: 67.91 to 78.74 inches (at 36 inch handle height); up to 79.74 inches at 37 inch handle height

Notes

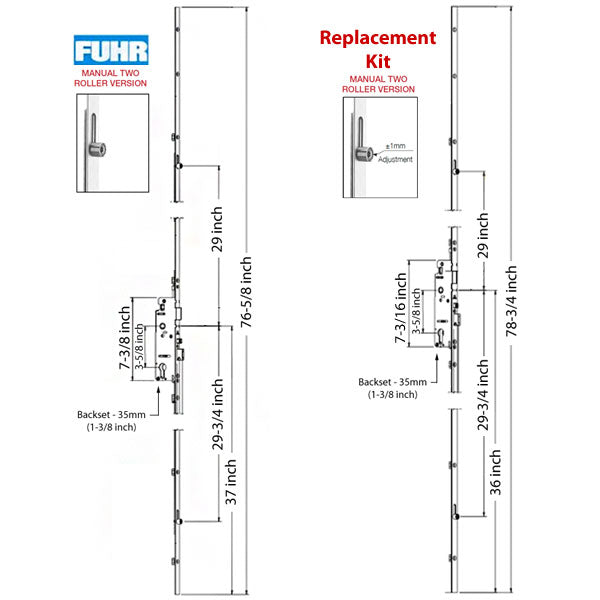

This kit is designed for 36 inch handle height. When used as a replacement for FUHR locks with 37 inch handle height, the metal faceplate will be 1 inch shorter, leaving a gap at the bottom of the door panel.
The gap can usually be filled with the cutoff from the top extension if desired.
The lock handing can be changed. See installation resources for instructions.

Replaces / Replaced by

Replaces discontinued FUHR roller multipoint locks #499010199 (manual) and #499010299 (automatic)

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

Will this kit work if my FUHR lock has a 37 inch handle height?

Yes, but the faceplate will be 1 inch shorter, leaving a small gap at the bottom of the door panel. This gap can typically be filled with the cutoff piece from the top extension.

Can I change the handing on this Hoppe multipoint lock?

Yes, the lock handing can be reversed. Hoppe provides instructions for changing the handing direction.

What door heights does this replacement kit fit?

At 36 inch handle height, it fits doors from approximately 68 to 79 inches tall. At 37 inch handle height, it can fit doors up to about 80 inches tall.
