Hoppe Multipoint Lock Replacement Kit – 35mm Backset, 92mm PZ, 16mm Faceplate

SKU: 49902-1635T-09-Kit

$276.00 - $276.00

$276.00

$276.00 - $276.00

$276.00

PZ (Handle to Cylinder): 3-5/8" (92mm)
Backset: 1-3/8" (35mm)
Faceplate Width: 5/8" (16mm)
Deadbolt Throw: 1" (25.4mm)
Handle Height: 36" (914mm)
Top Tongue Position: 37.20" (945mm)
Bottom Tongue Position: 29.65" (753mm)
Door Height Range: 79.13" - 92.52"
Croppable: Yes, max cutoff 3.94" (100mm) from top extension
Finish: Stainless Steel
Operation: Manual function
Kit includes bottom gear, top extension, and stainless steel screws
Latch handing can be reversed

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .

*We have a fully-staffed customer support team happy to help!

Product Details

Hoppe Multipoint Lock Kit – 35/92, 16mm Faceplate (49902-1635T-09-Kit)

This Hoppe multipoint lock replacement kit is designed for doors with Old Hoppe, Fuhr, Roto, or other multipoint lock brands. The kit provides a complete solution with a bottom gear assembly, top extension, and stainless steel installation screws.

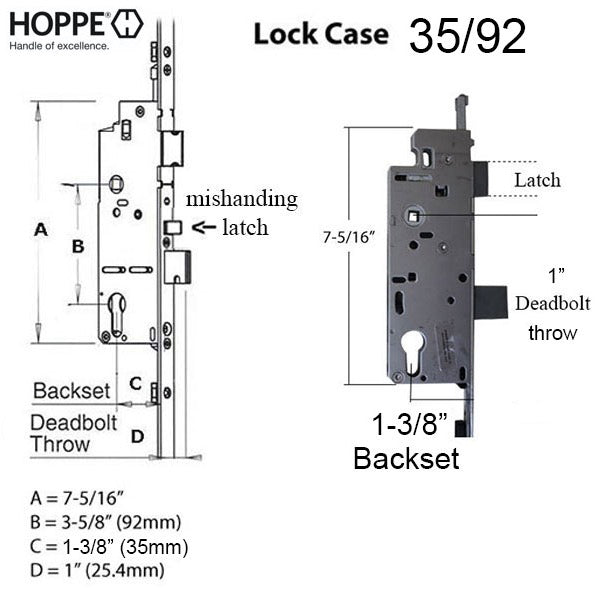

The lock features a 1-3/8 inch (35mm) backset and 3-5/8 inch (92mm) PZ measurement (handle center to cylinder center). The 5/8 inch (16mm) faceplate width and 1 inch (25.4mm) deadbolt throw provide secure locking. Handle height is positioned at 36 inches (914mm).

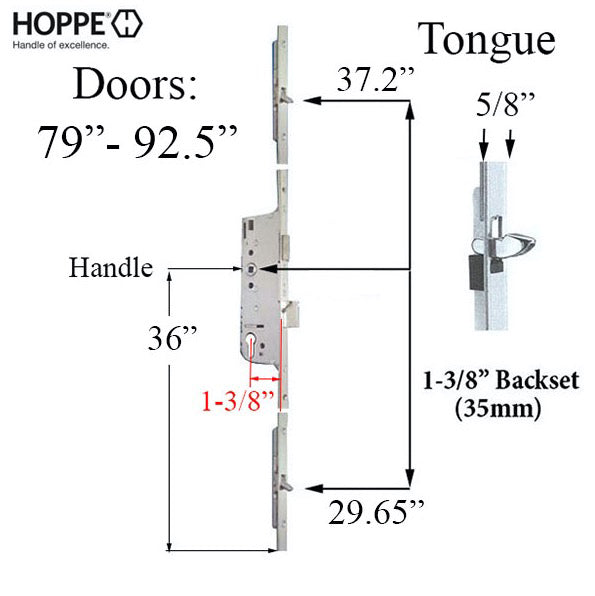

This kit fits doors ranging from 79.13 inches to 92.52 inches in height. The top extension can be trimmed up to 3.94 inches (100mm) to accommodate different door heights.

Technical Information

Faceplate Width: 5/8 inch (16mm)
Backset: 1-3/8 inch (35mm)
PZ (Handle to Cylinder): 3-5/8 inch (92mm)
Deadbolt Throw: 1 inch (25.4mm)
Handle Height: 36 inches (914mm)
Top Tongue Position: 37.20 inches (945mm)
Bottom Tongue Position: 29.65 inches (753mm)
Door Height Range: 79.13 inches - 92.52 inches
Croppable: Yes, max cutoff 3.94 inches (100mm)

Kit Contents

8778143: 16mm Manual Gear, 35/92 with 1 inch (25.4mm) deadbolt throw, 36 inch (914mm) handle height
8778555: 16mm Manual Top Extension, tongue at 37.20 inches (945mm)
8785695: Installation Screws, 1-3/8 inch (35mm) length - Stainless Steel (20 pieces)

Notes

Operation: Manual function - lift handle and turn thumbturn or key to extend deadbolt; turn thumbturn or key and depress lever to unlock

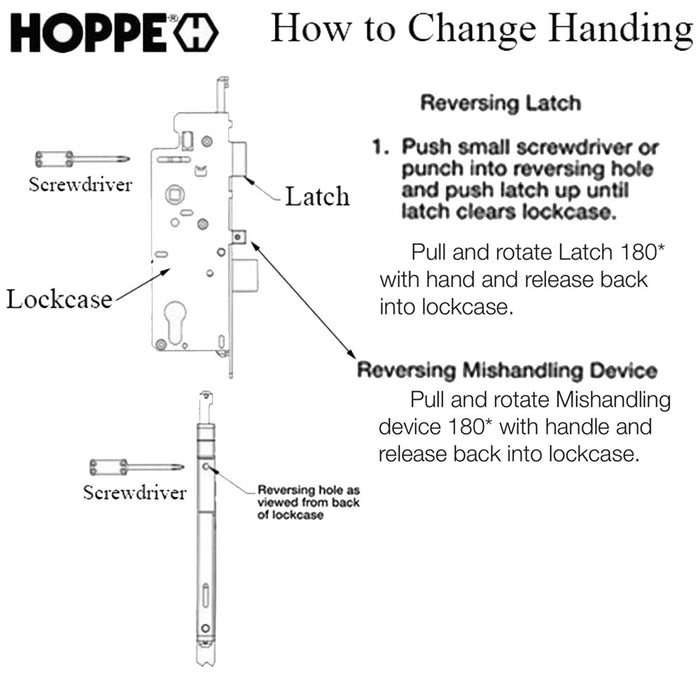

Latch Handing: Can be reversed by inserting a small screwdriver into the hole on the back of the latch, pushing forward, twisting, and releasing
Mis-handing Latch: The small mis-handing latch must be depressed to operate the lock - test operation before closing door

Installation Instructions

Lay the old lock and new lock side by side to determine length
Mark the top extension for proper length (extension is longer than needed)
Use a hacksaw to cut excess from top of extension
Attach top extension to lower assembly
Install complete lock, ensuring handle height matches original position
Test operation before closing door

Related Parts

1964522 - Curved Lip Tongue Strike (1-3/4" door, Stainless Steel)
2025199 - Radius Lip Tongue Strike (1-3/4" door, Stainless Steel)
8784707 - Flat Tongue Strike
1963554 - Latch & Deadbolt Strike Plate, Curved (1-3/4" / 45mm door, Stainless Steel)
2342311 - Latch & Deadbolt Strike Plate, Flat (1-3/4" / 45mm door, Stainless Steel)
8786547 - Dust Cap for Strike Plate

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

How do I cut this lock kit to fit my door?

Lay the old and new locks side by side to determine the correct length. Mark the top extension, then use a hacksaw to cut the excess from the top. The extension can be trimmed up to 3.94 inches (100mm).

Can the latch handing be reversed?

Yes, insert a small screwdriver into the hole on the back of the latch, push forward, twist the latch, and release.

What door heights does this kit fit?

This kit fits doors ranging from 79.13 inches to 92.52 inches in height. The top extension can be trimmed to accommodate different door sizes within this range.
