Hoppe Multipoint Lock Replacement Kit – 35mm Backset, 92mm PZ, 16mm Faceplate

SKU: 49902-1635T-03-Kit

$276.00 - $276.00

$276.00

$276.00 - $276.00

$276.00

PZ (Handle to Cylinder): 3-5/8" (92mm)
Backset: 1-3/8" (35mm)
Faceplate Width: 5/8" (16mm)
Deadbolt Throw: 1" (25.4mm)
Handle Height: 36" (914mm)
Top Tongue Position: 29.25" (743mm)
Bottom Tongue Position: 29.65" (753mm)
Door Height Range: 71.06" - 78.94" (1805mm - 2000mm)
Croppable: Yes, max cutoff 3.94" (100mm) from top extension
Operation: Manual function
Finish: Stainless Steel
Kit includes bottom gear, top extension, and stainless steel screws
Latch handing can be reversed

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .

*We have a fully-staffed customer support team happy to help!

Product Details

Hoppe Multipoint Lock Kit – 35/92, 16mm Faceplate (49902-1635T-03-Kit)

This Hoppe multipoint lock replacement kit is designed for doors with existing Hoppe, Fuhr, Roto, or other multipoint lock systems. The kit provides everything needed to replace your worn or damaged multipoint lock, including the bottom gear assembly, top extension, and stainless steel installation screws.

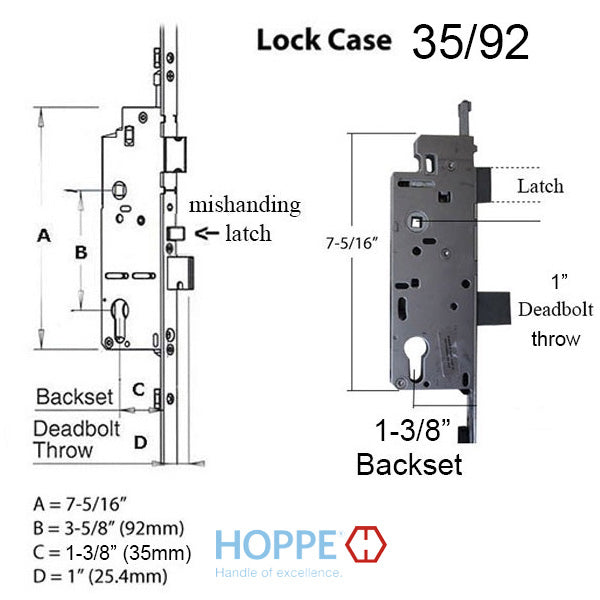

The lock features a 1-3/8 inch (35mm) backset and 3-5/8 inch (92mm) PZ measurement (handle center to cylinder center). The 5/8 inch (16mm) faceplate width accommodates standard multipoint lock mortise pockets. With a 1 inch (25.4mm) deadbolt throw, this lock provides secure engagement with your strike plate.

This kit fits doors ranging from 71.06 inches to 78.94 inches (1805mm to 2000mm) in height. The top extension can be trimmed up to 3.94 inches (100mm) to accommodate shorter doors. The handle height is set at 36 inches (914mm) from the bottom of the lock.

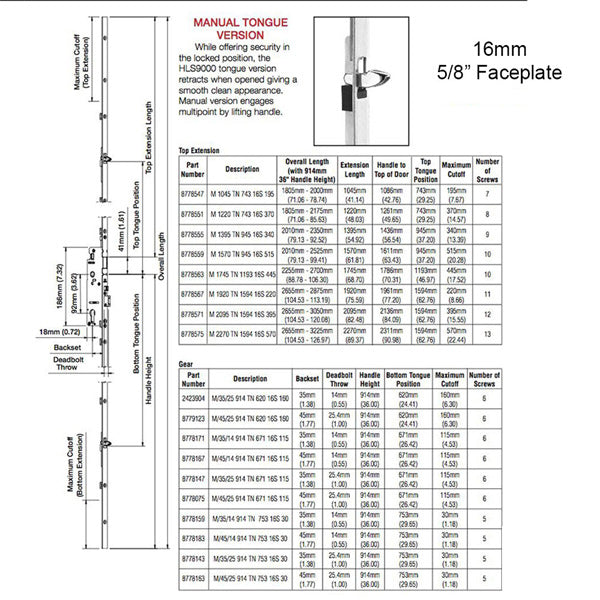

Technical Information

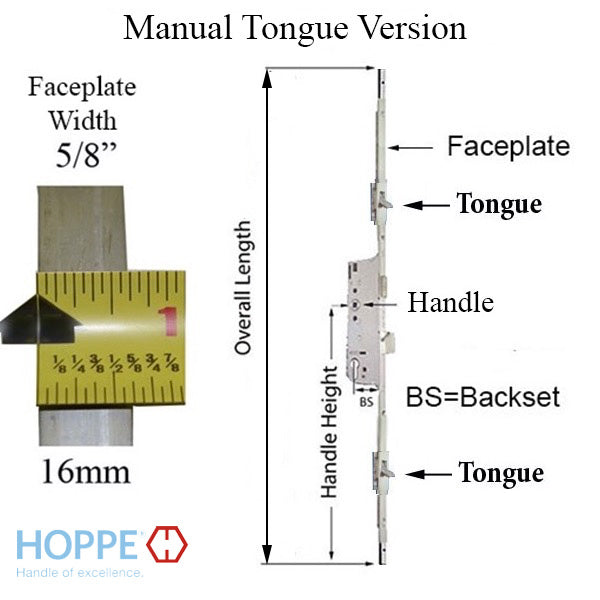

Faceplate Width: 5/8 inch (16mm)
Backset: 1-3/8 inch (35mm)
PZ (Handle to Cylinder): 3-5/8 inch (92mm)
Deadbolt Throw: 1 inch (25.4mm)

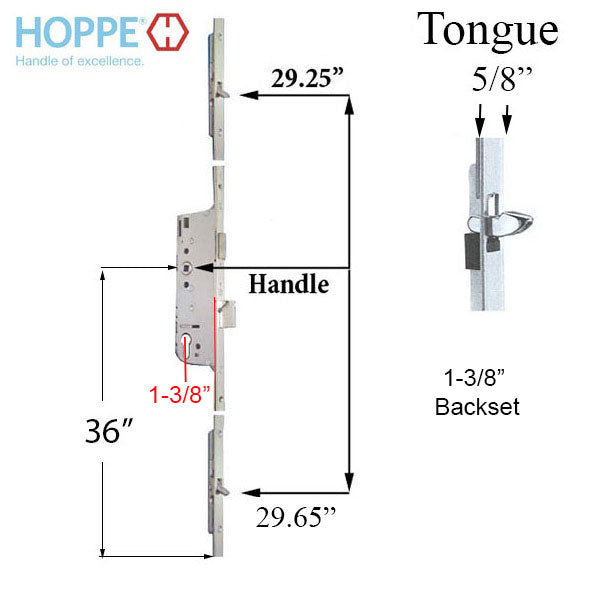

Handle Height: 36 inches (914mm)
Top Tongue Position: 29.25 inches (743mm)
Bottom Tongue Position: 29.65 inches (753mm)
Overall Length Range: 71.06 - 78.94 inches (1805 - 2000mm)
Croppable: Yes, max cutoff 3.94 inches (100mm) from top extension
Operation: Manual function

Kit Contents

8778143: 16mm Manual Gear, 35/92, 1 inch deadbolt throw, 36 inch handle height
8778547: 16mm Manual Top Extension, tongue at 29.25 inches (743mm)
8785695: Installation Screws, 1-3/8 inch (35mm) length - Stainless Steel (20 pieces)

Notes

Please confirm all measurements before ordering to ensure correct fit
Compatible with doors using Hoppe, Fuhr, Roto, or similar multipoint lock systems

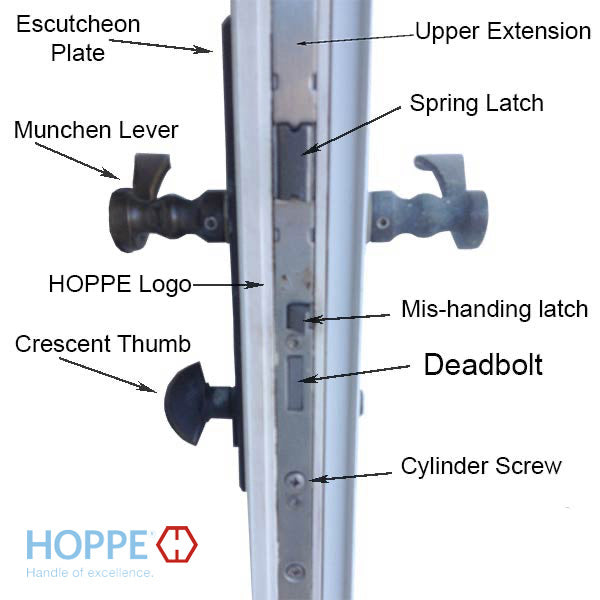

The mis-handing latch must be depressed to operate the lock - test operation before closing door

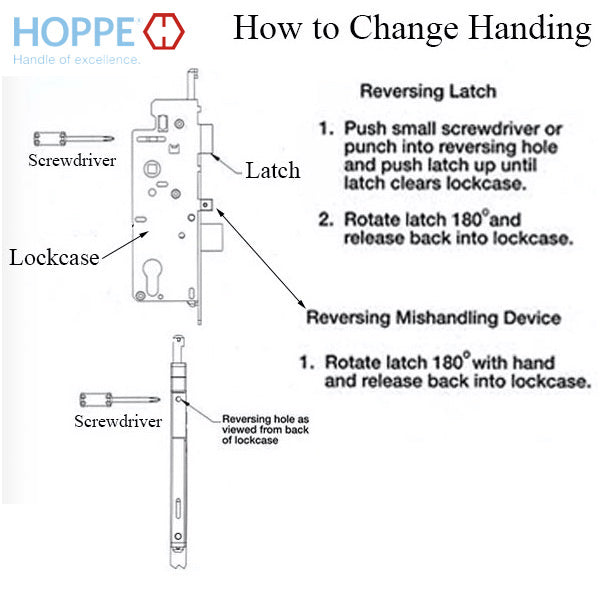

Latch handing can be reversed by inserting a small screwdriver into the hole on the back of the latch, pushing forward, twisting, and releasing

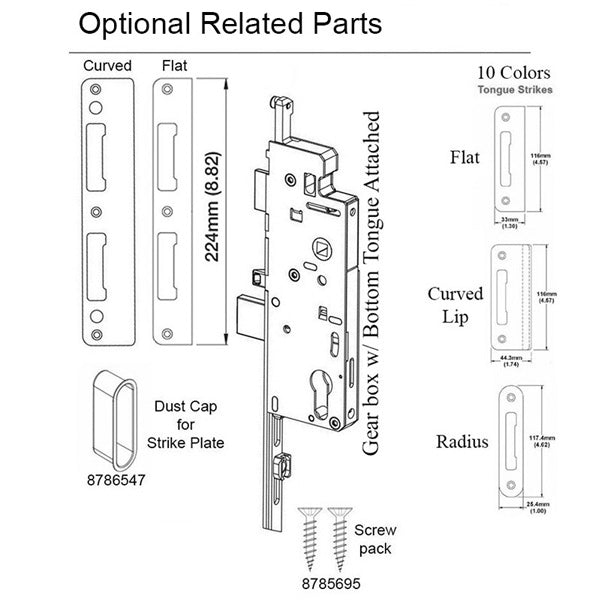

Related Parts

1964522 - Curved Lip Tongue Strike (1-3/4" door, Stainless Steel)
2025199 - Radius Lip Tongue Strike (1-3/4" door, Stainless Steel)
8784707 - Flat Tongue Strike (1-3/4" door, Stainless Steel)
1963554 - Latch & Deadbolt Strike Plate, Curved (1-3/4" door, Stainless Steel)
2342311 - Latch & Deadbolt Strike Plate, Flat (1-3/4" door, Stainless Steel)
8786547 - Dust Cap for Strike Plate

Installation Instructions

Lay the old lock and new lock side by side to determine correct length
Mark the top extension for proper length (extension is longer than needed)
Using a hacksaw, cut excess from top of extension

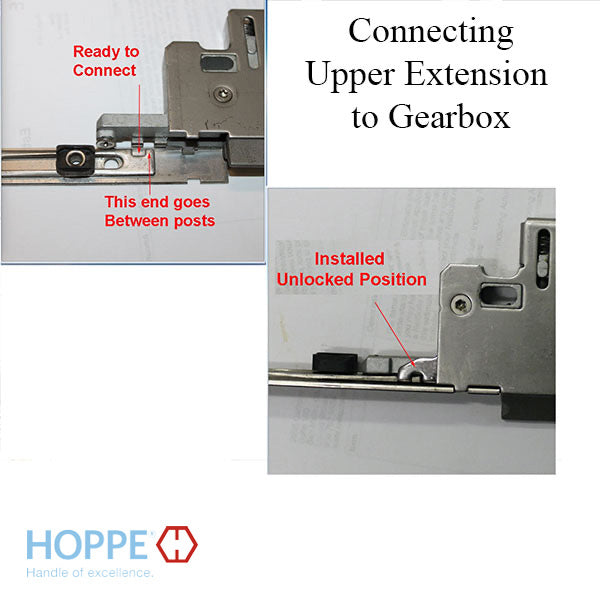

Attach top extension to lower assembly
Install complete lock, ensuring handle height matches previous installation
Test operation of door BEFORE closing

Sold as a complete kit.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

Can I trim this lock to fit a shorter door?

Yes, the top extension can be trimmed up to 3.94 inches (100mm) using a hacksaw to accommodate doors shorter than the maximum 78.94 inch height.

How do I reverse the latch handing on this lock?

Insert a small screwdriver into the hole on the back of the latch, push forward, twist the latch to the desired direction, and release.

What door brands is this lock compatible with?

This kit is designed to replace multipoint locks on doors originally equipped with Hoppe, Fuhr, Roto, or similar multipoint lock systems. Always confirm measurements before ordering.
