GU Cremona Inactive Multipoint Lock with Bottom Shootbolt – 35mm Backset, 92mm PZ

GU Cremona Inactive Multipoint Lock with Bottom Shootbolt – 35mm Backset, 92mm PZ

SKU 6-33270-01-0-FG

$243.11 - $243.11
$243.11
$243.11 - $243.11
$243.11
  • Backset: 1-3/8" (35mm)
  • PZ: 92mm
  • Handle Height: 35" (889mm)
  • Overall Length: 74-3/4" (1899mm)
  • Finish: Silver Ferguard
  • Configuration: Inactive/passive door only with bottom shootbolt attached
  • Faceplate: 1 hole for deadbolt only (no latch hole)
  • Requires astragal and strike plate
  • Top shootbolt not included
Visa Mastercard American Express Discover
Estimated Delivery
Between December 13 and December 17
*Delivery dates are estimates and may vary based on availability and shipping method

GU Cremona Inactive Multipoint Lock – 35/92 (6-33270-01-0-FG)

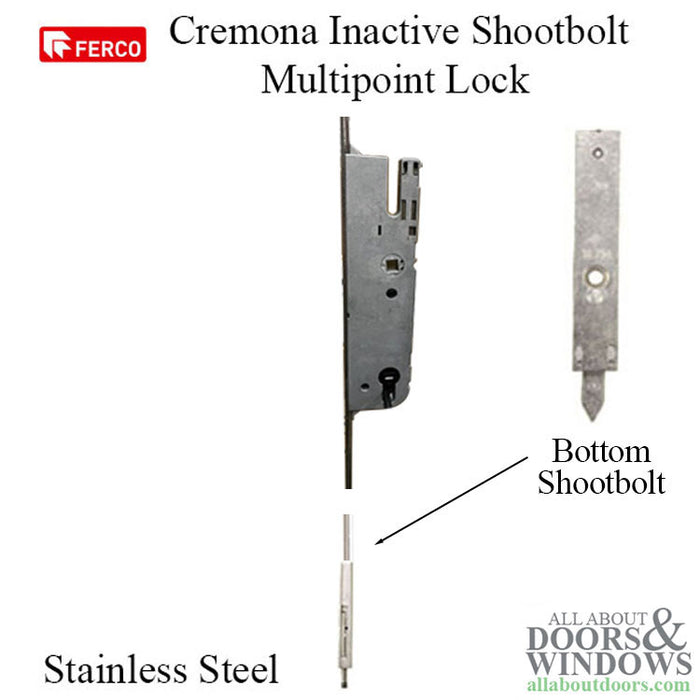

This GU Cremona 35/92 inactive multipoint lock is designed specifically for the passive or inactive door in a French door configuration. The lock comes with the bottom shootbolt already attached, providing secure bottom engagement for your door system.

This lock body features a single hole in the faceplate for the deadbolt only. There is no latch hole, as this configuration requires an astragal and strike plate for proper operation. The top shootbolt is not included with this unit and must be ordered separately if needed.

Technical Information

  • Backset: 1-3/8 inches (35mm)
  • PZ (Handle to Cylinder Center): 92mm
  • Handle Height: 35 inches (889mm)
  • Overall Length: 74-3/4 inches (1899mm)
  • Finish: Silver Ferguard
  • Door Type: Inactive/Passive door only

Related Parts

  • G-16798-00-0 - Reversing Gear, Cremona (top shootbolt)
  • 40325 - Extension, Cremona (for doors taller than 6' 8")
  • 9-29525-00-0-0 - Brass Sleeves, Round Socket Strike
  • 6-U-0050-00-0 - Silver Attachment Screws (20/bag)

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

Why does this lock have no latch hole?

This is an inactive/passive door lock designed to work with an astragal and strike plate rather than a traditional latch mechanism.

Do I need to purchase the top shootbolt separately?

Yes, this lock comes with only the bottom shootbolt attached. The top shootbolt (G-16798-00-0 Reversing Gear) must be ordered separately if needed.

What if my door is taller than 6 feet 8 inches?

For doors taller than 6 feet 8 inches, you will need the Cremona extension (part 40325) to ensure proper shootbolt engagement.
