GU Wolverine 2-Point Door Locking Gear with Bottom Shootbolt – 45mm Backset, 92mm PZ

GU Wolverine 2-Point Door Locking Gear with Bottom Shootbolt – 45mm Backset, 92mm PZ

SKU 6-29385-01-0-FG

$320.77 - $320.77
$320.77
$320.77 - $320.77
$320.77

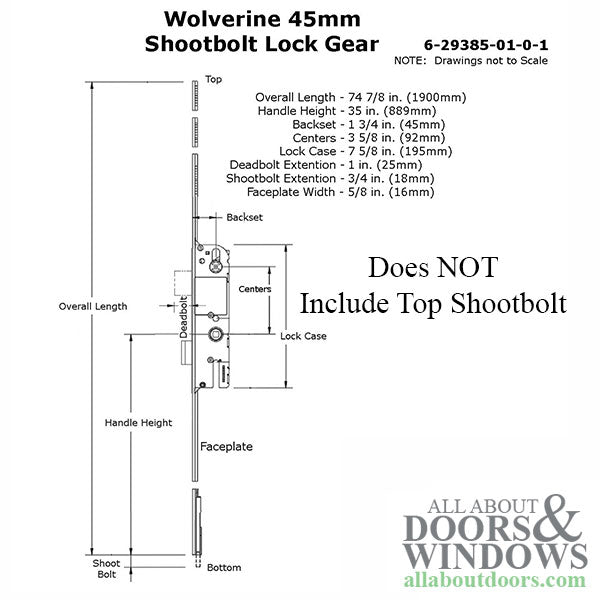

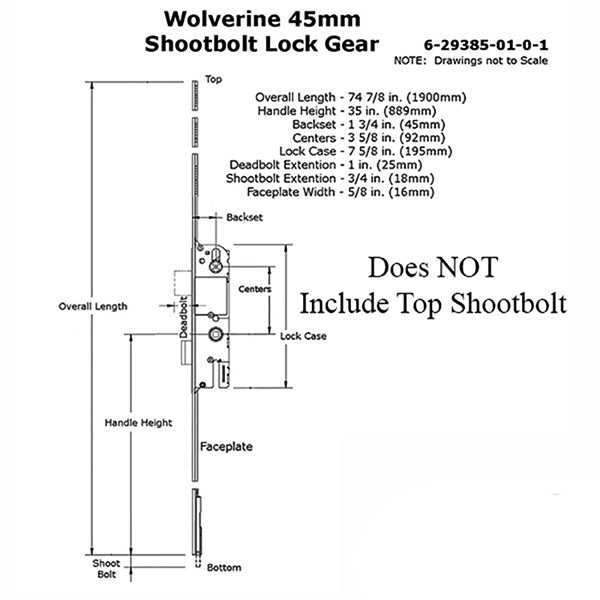

  • PZ (Handle to Cylinder Spacing): 3-5/8" (92mm)
  • Backset: 1-3/4" (45mm)
  • Faceplate Width: 5/8" (16mm)
  • Handle Height: 35" (889mm)
  • Deadbolt Throw: 1" (25.4mm)
  • Cylinder Type: American cylinder system with 90° turn
  • Handle Position: Key above handle (New Breed)
  • Faceplate Finish: Silver
  • Spindle Size: 8mm square
  • 2-point locking gear with bottom shootbolt only
  • Top shootbolt sold separately
  • Non-handed design with reversible latch
  • Sold individually
Visa Mastercard American Express Discover
Estimated Delivery
Between December 13 and December 17
*Delivery dates are estimates and may vary based on availability and shipping method

GU Wolverine 2-Point Lock Gear – 45/92, Silver (6-29385-01-0-FG)

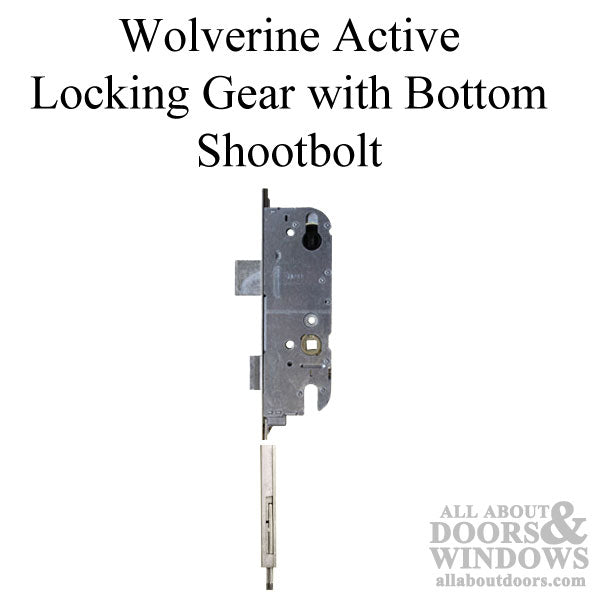

This GU Wolverine 2-point door locking gear is part of the New Breed series and features a bottom shootbolt for vertical extension into the door panel. The top shootbolt is sold separately, allowing you to configure your multipoint locking system as needed.

The lock operates with an American cylinder system using a 90-degree turn of key or thumbturn. It features a key-above-handle configuration and is designed for doors with a 35-inch handle height. The non-handed design with easily reversible latch makes installation straightforward for both left and right-hand doors.

The Wolverine 3-point locking system features double reinforced shootbolts for maximum security and protection against door panel warping. The heavy-duty mortise construction includes a reinforced lever return spring system for long-lasting performance.

Technical Information

  • Series: New Breed - 2 Point Door Locking Gear with Bottom Shootbolt Only
  • PZ (Handle to Cylinder Spacing): 3-5/8 inches (92mm)
  • Backset: 1-3/4 inches (45mm)
  • Faceplate Width: 5/8 inches (16mm)
  • Handle Height: 35 inches (889mm)
  • Deadbolt Throw: 1 inch (25.4mm)
  • Spindle Size: 8mm square
  • Cylinder Type: American cylinder system (90° turn)
  • Handle Position: Key above handle
  • Function: Shootbolt version - extends vertically into door panel
  • Faceplate Finish: Silver
  • Handing: Non-handed, latch easily reversible

Notes

  • Top shootbolt not included - sold separately
  • Also available in stainless steel finish (6-29385-11-0-8, non-stock)
  • Extensions available for taller doors
  • Compatible with Schlage "C" keyway systems
  • Same hardware groove detail throughout entire GU door lock program (router bits available)

Related Parts

  • G-16798-00-0-0 - Reversing gear (Top Shootbolt)
  • G-16790-05-0-1 - 500mm Extension Arm without Lock Point in Silver
  • 9-29525-00-0-0 - Brass sleeve, 10mm I.D.
  • 9-33342-00-0-0 - Brass sleeve, 12mm I.D.
  • 6-U0050-00-0-2 - Screws, hardware installation
  • 6-29385-01-0-1 - Wolverine 2 Point Lock Gear in Silver
  • 6-29385-11-0-8 - Wolverine 2 Point Lock Gear in Stainless Steel (non-stock)

Sold individually. Top shootbolt sold separately.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

Does this lock include the top shootbolt?

No, this 2-point locking gear includes only the bottom shootbolt. The top shootbolt (part G-16798-00-0-0) is sold separately.

Can this lock be installed on both left and right-hand doors?

Yes, this lock features a non-handed design with an easily reversible latch, making it suitable for both left and right-hand door installations.

What cylinder type does this lock use?

This lock uses an American cylinder system with a 90-degree turn of key or thumbturn, compatible with Schlage "C" keyway systems.
