Fuhr Single Point Mortise Lock – 35mm Backset

Fuhr Single Point Mortise Lock – 35mm Backset

SKU: 49901003

Sold out
$0.00 - $0.00
$0.00
$0.00 - $0.00
$0.00
  • Backset: 1-3/8" (35mm)
  • Faceplate: 5/8" (16mm) wide x 10-7/8" (276mm) stainless steel
  • Faceplate Screw Holes: 10-1/8" (257mm) apart
  • Compatibility: Used by Norco, Weather Shield, Kolbe & Kolbe, Hurd and others from the mid 90s
  • Replacement: Replace with HOPPE Single Point Mortise Lock (11517475)
  • Sold individually
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Not sure this is the right part?
Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543.
*We have a fully-staffed customer support team happy to help!

Fuhr Single Point Mortise Lock (49901003)

This Fuhr single point mortise lock was commonly used by door manufacturers including Norco, Weather Shield, Kolbe & Kolbe, and Hurd during the mid 1990s. If you have a door from this era with a Fuhr lock that needs replacement, this listing provides the specifications to help you identify your existing hardware.

The Fuhr lock features a 1-3/8 inch (35mm) backset with a 5/8 inch (16mm) wide stainless steel faceplate measuring 10-7/8 inches (276mm) in length. The faceplate screw holes are spaced 10-1/8 inches (257mm) apart.

Technical Information

  • Backset: 1-3/8 inches (35mm)
  • Faceplate Width: 5/8 inches (16mm)
  • Faceplate Length: 10-7/8 inches (276mm)
  • Faceplate Screw Hole Spacing: 10-1/8 inches (257mm)
  • Faceplate Material: Stainless steel

Replaces / Replaced by

  • Replace this Fuhr lock with HOPPE Single Point Mortise Lock 11517475 – the Fuhr and HOPPE locks are similar in size

Notes

  • Used by Norco, Weather Shield, Kolbe & Kolbe, Hurd and other manufacturers in the mid 1990s

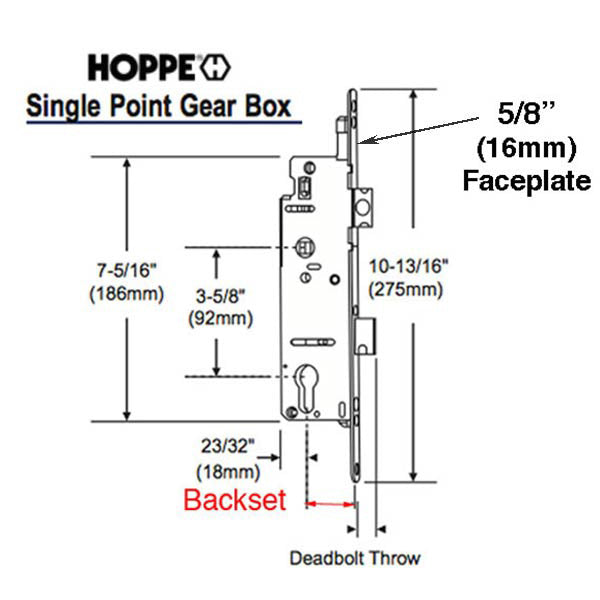

  • See additional images for size comparison between Fuhr and HOPPE locks

Sold individually.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

How do I measure my backset to confirm this is the right lock?

Measure from the edge of the door to the center of the handle bore hole. This lock has a 1-3/8 inch (35mm) backset.

What is the replacement for this Fuhr lock?

The HOPPE Single Point Mortise Lock (11517475) is the recommended replacement. The Fuhr and HOPPE locks are similar in size.

What door brands used this Fuhr lock?

This lock was commonly used by Norco, Weather Shield, Kolbe & Kolbe, and Hurd in doors manufactured during the mid 1990s.
