Andersen 5-Point Active Lock for Stormwatch Doors – 76-1/2" Panel

SKU: 2579774

$374.34 - $374.34

$374.34

$374.34 - $374.34

$374.34

Lock Type: 5-point multipoint lock (deadbolt, 2 hooks, top and bottom shootbolts)
Door Panel Height: 76-1/2" (1943mm) – fits FWH68 doors
Application: Double active Stormwatch (AP/PA) units
Stamped On Face: 2579774-5F
Effective Date: March 2003 to present
Handing: Reversible – can be changed in the field
Sold individually

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543.

*We have a fully-staffed customer support team happy to help!

Product Details

Andersen 5-Point Active Lock – FWH68 (2579774)

This Andersen 5-point active lock mechanism is designed for double active Stormwatch (AP/PA) hinged patio door units. It provides enhanced security with five locking points: a deadbolt, two hooks, and shootbolts at both the top and bottom of the door.

This lock fits door panels measuring 76-1/2 inches (1943mm) in height, corresponding to the FWH68 door size. The lock face is stamped with "2579774-5F" for easy identification, where the "5" indicates a 5-point locking system.

If your door only has three locking points (no shootbolts), you need part 2579771 instead.

Stamped With

2579774-5F

Technical Information

Lock Points: 5 (deadbolt, 2 hooks, 2 shootbolts)
Door Panel Height: 76-1/2 inches (1943mm)
Door Size Code: FWH68
Effective Date: March 2003 to present

Notes

For double active Stormwatch (AP/PA) units only
Single active Stormwatch units use the standard 3-point active lock (part 2579771)

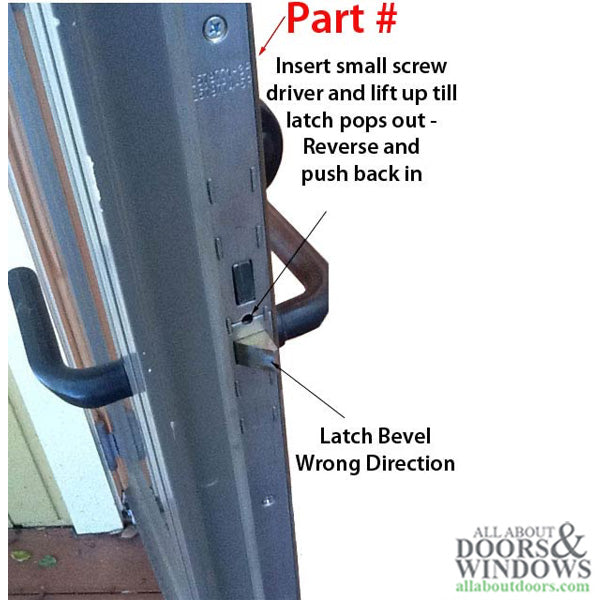

Handing can be reversed in the field: insert a small screwdriver into the hole above the spring latch, lift until the latch pops out, reverse, and push back in
Always check lock operation before closing the door after rehanding

Related Parts

2579771 - Andersen 3-Point Active Lock (for single active Stormwatch units)
2579775 - Andersen 5-Point Active Lock for FWH611 79-1/4" door panel
2579776 - Andersen 5-Point Active Lock for FWH80 92-1/2" door panel

Sold individually.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

How do I change the handing on this Andersen multipoint lock?

Insert a small screwdriver into the hole above the spring latch, lift up until the latch pops out, reverse the latch, and push it back in. Always test the lock operation before closing the door.

How do I know if I need a 5-point or 3-point lock?

Count the locking points on your current lock. If you have a deadbolt, two hooks, and shootbolts at the top and bottom (5 points total), you need this 5-point lock. If you only have 3 locking points with no shootbolts, you need part 2579771.

What door size does this lock fit?

This lock fits Andersen Stormwatch door panels measuring 76-1/2 inches in height (FWH68 size). Check the stamp on your existing lock to confirm compatibility.
