Andersen 5-Point Active Lock Mechanism for Stormwatch Doors – 79-1/4" Panel

Andersen 5-Point Active Lock Mechanism for Stormwatch Doors – 79-1/4" Panel

SKU: 2579775

$342.81 - $342.81
$342.81
$342.81 - $342.81
$342.81
  • Type: 5-Point Active Lock Mechanism
  • Door Panel Height: 79-1/4" (2012.9mm)
  • Application: Double active Stormwatch (AP/PA) units
  • Features: Deadbolt, 2 hooks, and shootbolts at top and bottom
  • Effective Date: March 2003 to Present
  • Handing: Can be reversed using small screwdriver in hole above spring latch
  • Sold individually
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Not sure this is the right part?
Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .
*We have a fully-staffed customer support team happy to help!

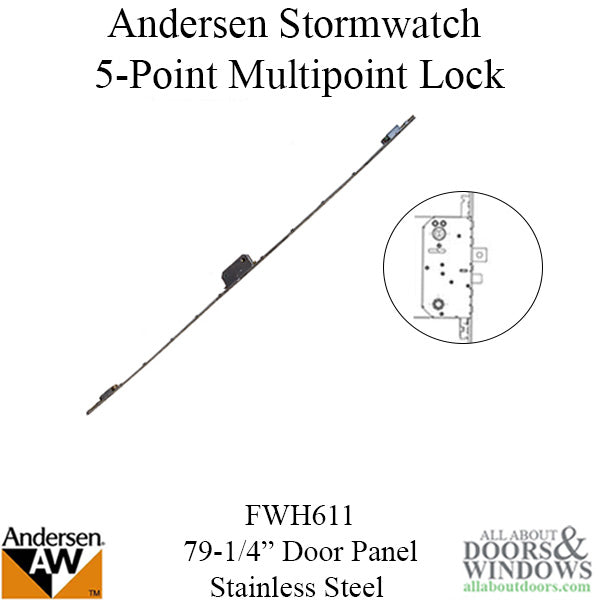

Andersen 5-Point Active Lock – FWH611 (2579775)

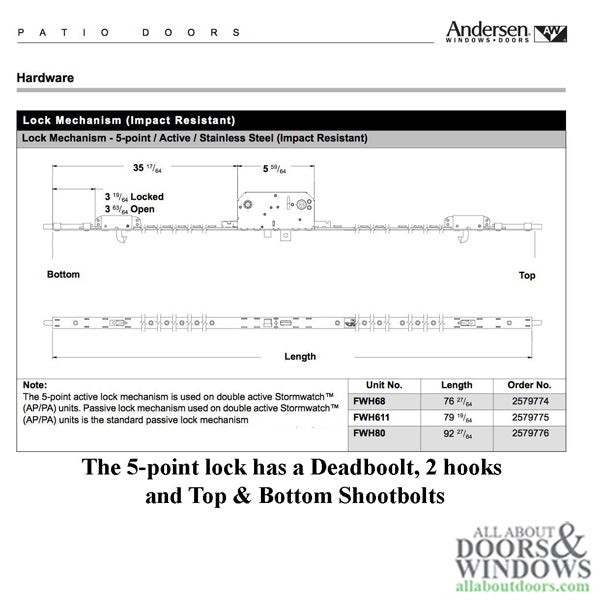

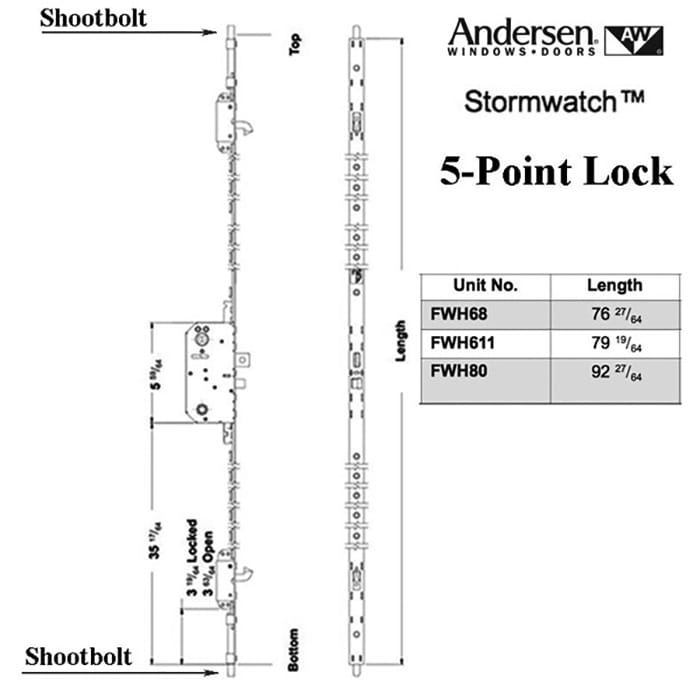

This Andersen 5-Point Active Lock Mechanism is designed for double active Stormwatch (AP/PA) door units with 79-1/4 inch (2012.9mm) door panels. The lock provides enhanced security with a deadbolt, two hooks, and shootbolts at both the top and bottom of the door.

Single active Stormwatch units use the standard 3-point active lock (part numbers 2579773-3F or 2579776-5F). The number designation indicates the lock type: 3 for 3-point lock, 5 for 5-point lock.

Technical Information

  • Part Number: 2579775
  • Model: FWH611
  • Door Panel Height: 79-1/4 inches (2012.9mm)
  • Lock Type: 5-Point (deadbolt, 2 hooks, top and bottom shootbolts)
  • Effective Date: March 2003 to Present

Notes

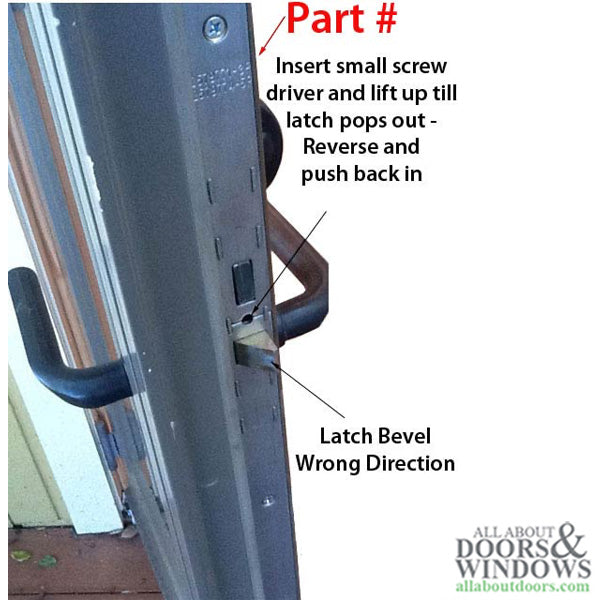

  • To change handing: Insert a small screwdriver into the hole above the spring latch, lift up until the latch pops out, reverse the latch, and push back in
  • Always check the operation of the lock before closing the door

Related Parts

  • 2579774 - FWH68 for 76-1/2 inch door panel
  • 2579776 - FWH80 for 92-1/2 inch door panel
  • 2579773-3F - 3-Point Active Lock
  • 2579776-5F - 5-Point Active Lock

Sold individually.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

How do I change the handing on this Andersen lock?

Insert a small screwdriver into the hole above the spring latch, lift up until the latch pops out, reverse the latch, and push it back in. Always test the lock operation before closing the door.

What is the difference between a 3-point and 5-point lock?

A 3-point lock has three locking points, while a 5-point lock provides additional security with a deadbolt, two hooks, and shootbolts at both the top and bottom of the door.

Which door panel size does this lock fit?

This lock (2579775/FWH611) fits 79-1/4 inch door panels. For 76-1/2 inch panels use 2579774, and for 92-1/2 inch panels use 2579776.
