Winkhaus Mercury Handleset Trim for One-Motion Multipoint Lock – Bright Chrome

SKU: WH-1064522

$222.55 - $222.55

$222.55

$222.55 - $222.55

$222.55

Function: Active, keyed lock with interior thumb turn
Backset/PZ: Fits Winkhaus One-Motion Multipoint Lock (OML)
Door Thickness: 1-3/4" (44.5mm)
Escutcheon Plates: 1-5/8" x 10" (41.3mm x 254mm)
Trim Screw Spacing: 7-7/8" (200mm)
Escutcheon Screw Thread: Metric M5 (American 10-32 also works)
Lever Set Screw: Metric M6
Handle Design: Mercury
Backplate Style: Contemporary, square corners
Finish: Bright Chrome (Polished Chrome)
Includes both handles, both escutcheons, Euro cylinder with keys and thumb turn
Discontinued: Limited to 1 only

Discontinued and no longer available

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please call us at (816) 221-6543 .

*We have a fully-staffed customer support team happy to help!

Product Details

Winkhaus Mercury OML Handleset – Bright Chrome (WH-1064522)

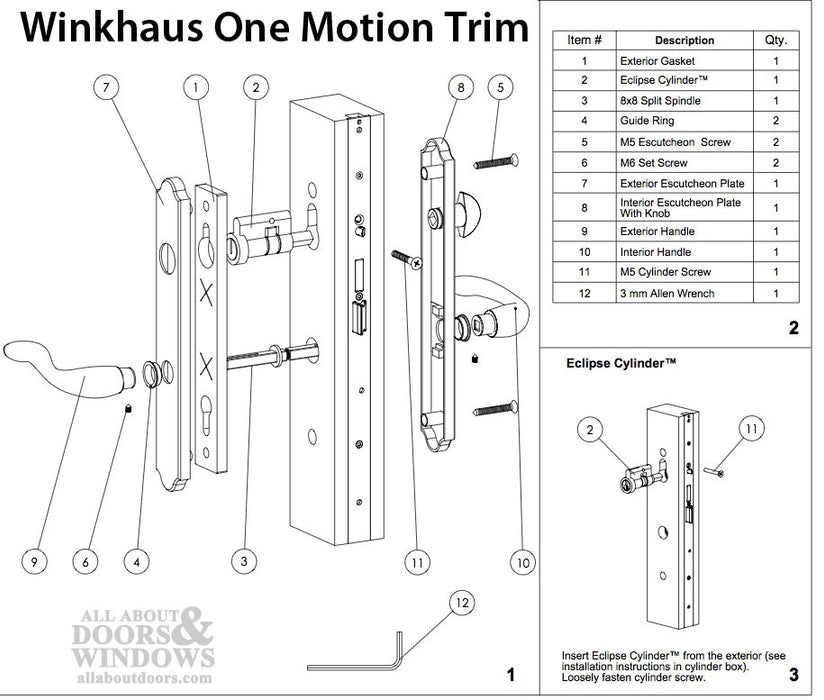

This Winkhaus Active Mercury / STQ trimset is a single cylinder handleset trim designed exclusively for the Winkhaus One-Motion Multipoint Lock (OML). The complete set includes both interior and exterior handles, both escutcheon plates, and a Euro type cylinder with keys and thumb turn.

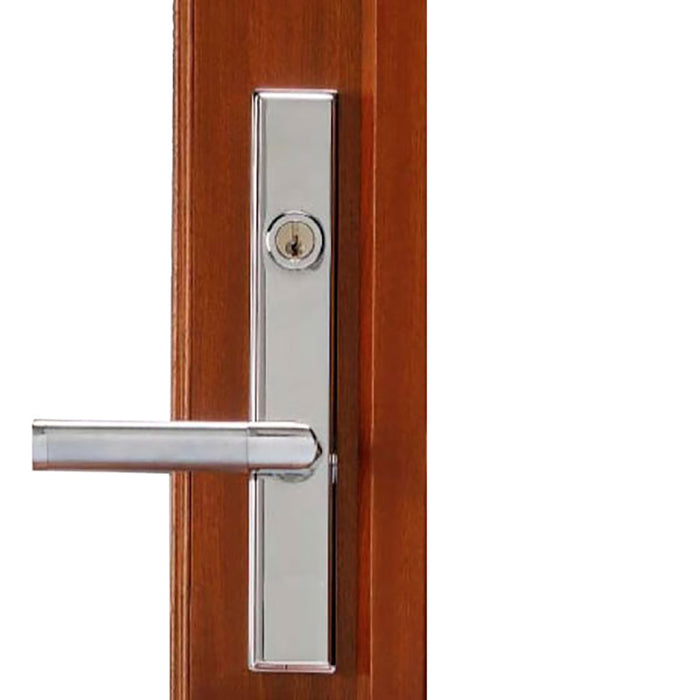

The Mercury handle design features a contemporary aesthetic with square-cornered backplates, finished in bright polished chrome. This active function handleset provides keyed entry from the exterior with a convenient interior thumb turn for easy egress.

Technical Information

Door Thickness: 1-3/4 inches (44.5mm)
Escutcheon Plate Dimensions: 1-5/8 inches x 10 inches (41.3mm x 254mm)
Handleset Trim Screw Spacing: 7-7/8 inches (200mm)
Escutcheon Plate Screw Thread: Metric M5 (American 10-32 compatible)
Lever Set Screw: Metric M6
Cylinder Type: Euro profile
Key Position: Above handle

Notes

This lockset fits ONLY the Winkhaus One-Motion Multipoint Lock (OML)

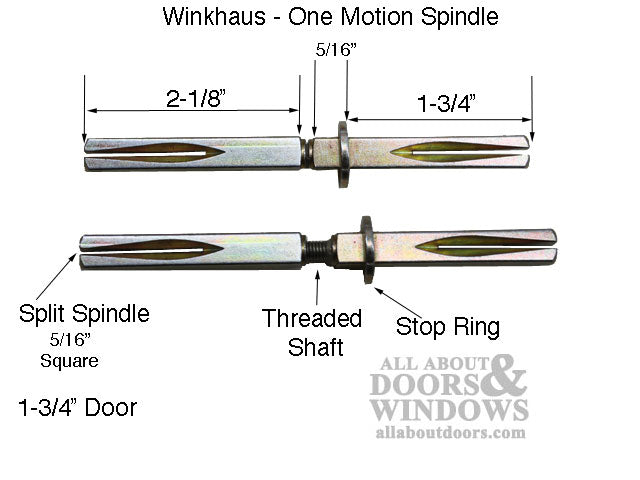

The One-Motion lock uses a 2-piece spindle allowing the inside handle to move independently of the outside handle
When installing the spindle, the outside portion has a washer that prevents it from going in too far – this is critical for proper lock operation
If a solid spindle were used, the one-motion function would work from the outside
Cylinder removal is similar to the CES 90-degree method, except you push UP on the tool

Discontinued item – limited to 1 only.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What lock does this handleset trim fit?

This trim fits only the Winkhaus One-Motion Multipoint Lock (OML). It is not compatible with other multipoint lock systems.

Why does the One-Motion lock use a 2-piece spindle?

The 2-piece spindle allows the inside handle to move independently of the outside handle, which is essential for the one-motion functionality to work correctly.

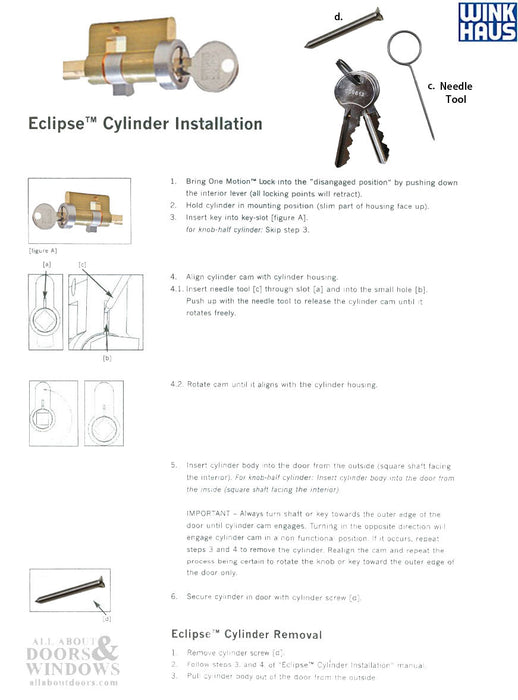

How do I remove the Euro cylinder from this handleset?

Cylinder removal is similar to the CES 90-degree method, but you push UP on the removal tool instead of down. Refer to the additional images for guidance.
