Amesbury P2000 Active Gearbox – 60mm Backset, 92mm PZ, American Cylinder

Amesbury P2000 Active Gearbox – 60mm Backset, 92mm PZ, American Cylinder

SKU P2000-60LC

$130.75 - $130.75
$130.75
$130.75 - $130.75
$130.75
  • PZ: 3-5/8" (92mm)
  • Backset: 2-3/8" (60mm)
  • Deadbolt Throw: 1" (25.4mm)

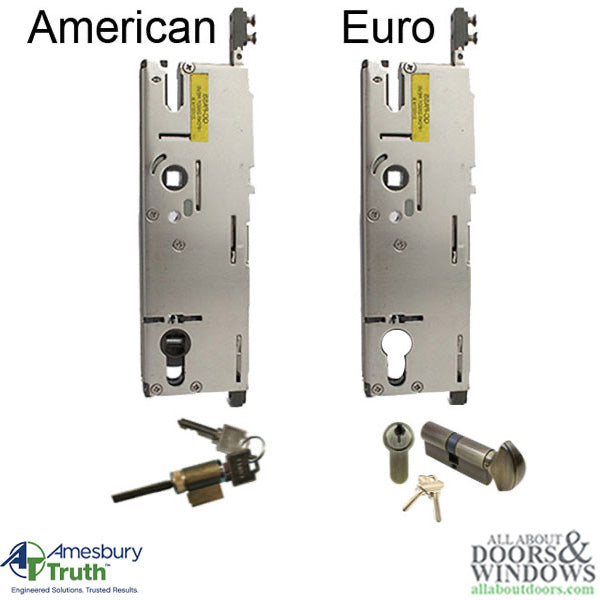

  • Cylinder Type: American
  • Faceplate: None included
  • Gearbox only with deadbolt and spring latch
  • Not a multipoint lock (MPL)
  • Replaces active gearbox on Amesbury MPL with matching size and configuration
  • Latch handing can be reversed
  • T-20 torx screws require 12-13 lbs of torque
  • Sold individually
Visa Mastercard American Express Discover
Estimated Delivery
Between December 11 and December 15
*Delivery dates are estimates and may vary based on availability and shipping method

Amesbury P2000 Active Gearbox – 60/92, American Cylinder (P2000-60LC)

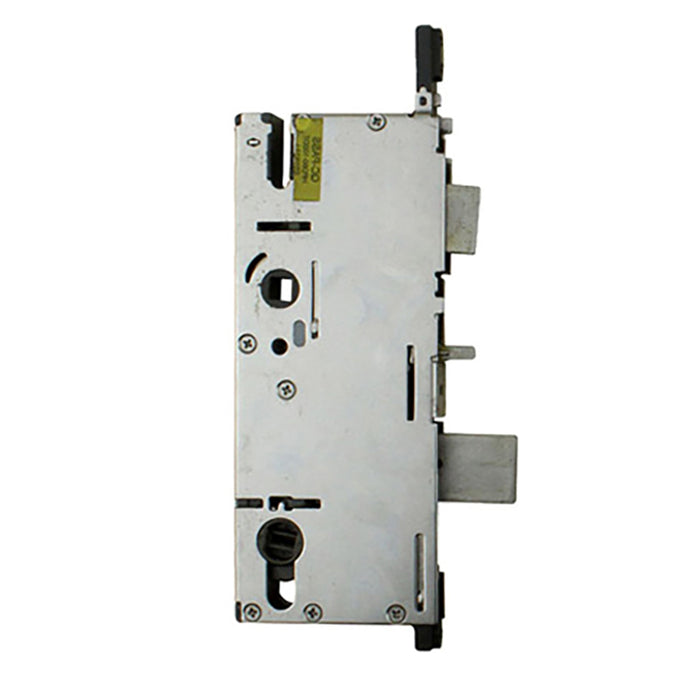

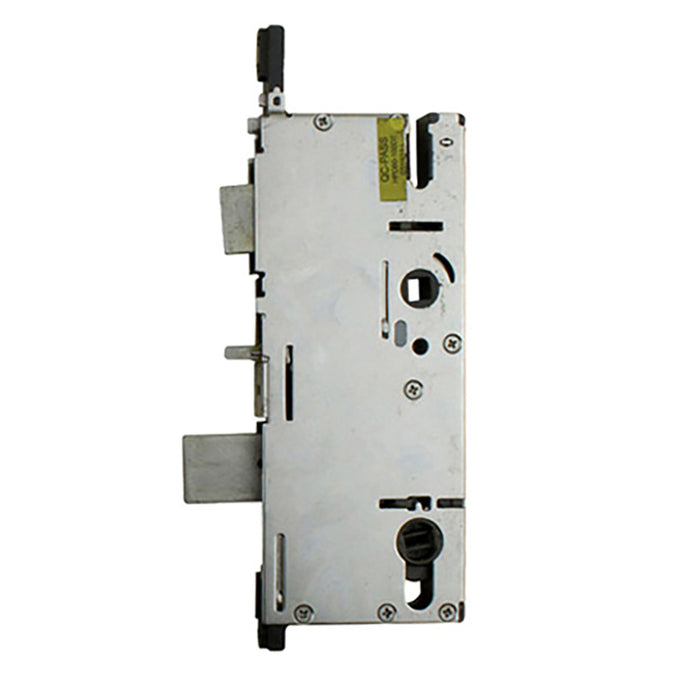

This Amesbury P2000 active gearbox is designed as a replacement lock case for Amesbury multipoint lock systems. It features a deadbolt and spring latch only, making it a gearbox replacement rather than a complete multipoint lock. No faceplate is included with this unit.

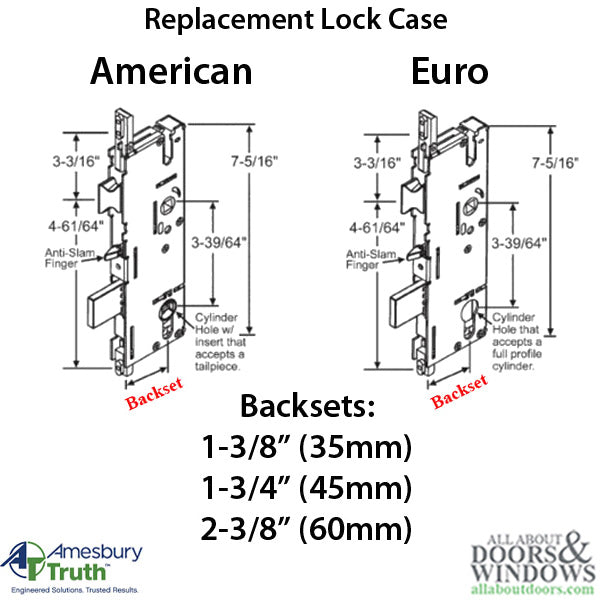

The gearbox is configured for American cylinders with a 2-3/8 inch (60mm) backset and 3-5/8 inch (92mm) PZ (handle center to cylinder center). The deadbolt throw measures 1 inch (25.4mm). This lock case will replace the active gearbox on Amesbury MPL systems with matching size and configuration.

Technical Information

  • Backset: 2-3/8 inches (60mm)
  • PZ: 3-5/8 inches (92mm)
  • Deadbolt Throw: 1 inch (25.4mm)
  • Cylinder Type: American
  • Faceplate Width: None (faceplate not included)

Notes

  • This is the lock case only – the faceplate rail is not included
  • Not a multipoint lock (MPL) – gearbox with deadbolt and spring latch only
  • Amesbury has 3 different locks – please compare measurements and information before ordering
  • T-20 torx star bit screws require 12-13 pounds of torque
  • To change handing/latch reversal: Extend the deadbolt and pull the spring latch out, rotate to correct position, then check the function of the lock before closing the door

Priced and sold each.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

Is this a complete multipoint lock?

No, this is a gearbox only with a deadbolt and spring latch. It does not include a faceplate rail and is not a complete multipoint lock system.

How do I reverse the latch handing?

Extend the deadbolt and pull the spring latch out, rotate it to the correct position, then check the function of the lock before closing the door.

What tools do I need for installation?

You will need a T-20 torx star bit. The screws require 12-13 pounds of torque for proper installation.
