Premier P2000 Multipoint Lock Gearbox – 45mm Backset, 92mm PZ

Premier P2000 Multipoint Lock Gearbox – 45mm Backset, 92mm PZ

SKU: P2000-45EC

$98.46 - $98.46
$98.46
$98.46 - $98.46
$98.46
  • Backset: 1-3/4" (45mm)
  • PZ (Handle to Cylinder Spacing): 3-5/8" (92mm)
  • Cylinder Type: Euro / Profile
  • Compatible Faceplates: 5/8" (16mm) or 25/32" (20mm)
  • Gearbox only – no faceplate included
  • Used to repair or replace broken gears on active multipoint lock doors
  • Installation: Requires T-20 Torx star bit screws with 12-13 lbs of torque
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Not sure this is the right part?
Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543.
*We have a fully-staffed customer support team happy to help!

Premier P2000 Gearbox – 45/92 (P2000-45EC)

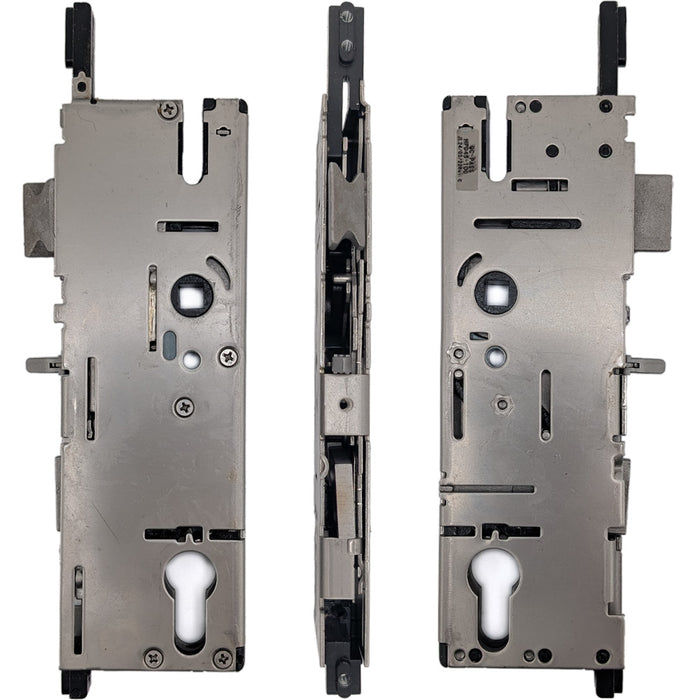

The Premier P2000 gearbox is a replacement component designed for multipoint lock systems. This gearbox-only unit allows you to repair or replace broken gears without replacing the entire lock assembly, making it a cost-effective solution for maintaining your multipoint door hardware.

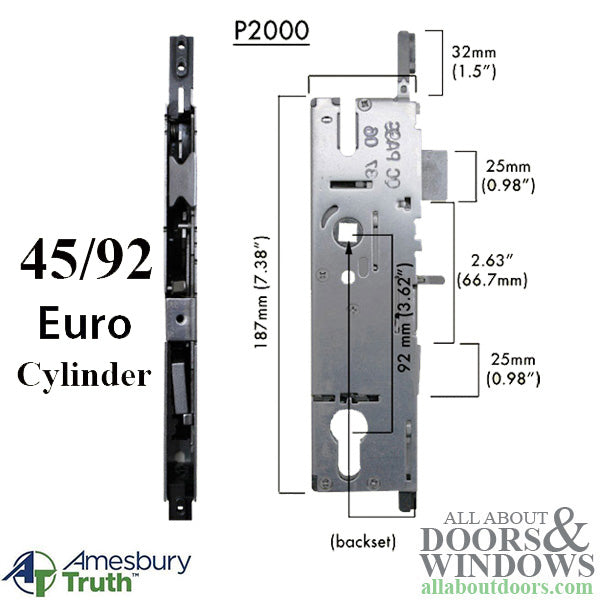

This gearbox features a 1-3/4 inch (45mm) backset and a 3-5/8 inch (92mm) PZ (handle to cylinder spacing). It is compatible with active doors using either 5/8 inch (16mm) or 25/32 inch (20mm) faceplates. The unit accepts Euro/Profile cylinders.

Technical Information

  • Backset: 1-3/4 inches (45mm)
  • PZ (Handle to Cylinder Spacing): 3-5/8 inches (92mm)
  • Cylinder Type: Euro / Profile
  • Compatible Faceplate Widths: 5/8 inches (16mm) or 25/32 inches (20mm)

Notes

  • This is the gearbox only – no faceplate is included
  • Premier lockcase bodies are available in three backset sizes: 1-3/8 inches (35mm), 1-3/4 inches (45mm), and 2-3/8 inches (60mm)
  • The screws that attach the gearbox to extensions use a T-20 star drive head
  • T-20 Torx star bit screws require 12-13 pounds of torque for proper installation

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

Does this gearbox include a faceplate?

No, this is the gearbox only. It is designed to repair or replace broken gears in your existing multipoint lock system without replacing the entire assembly.

What tools do I need to install this gearbox?

You will need a T-20 Torx star bit to attach the gearbox to the extensions. The screws require 12-13 pounds of torque for proper installation.

What cylinder type does this gearbox accept?

This gearbox accepts Euro/Profile cylinders, which are the standard cylinder type used in most multipoint lock systems.
