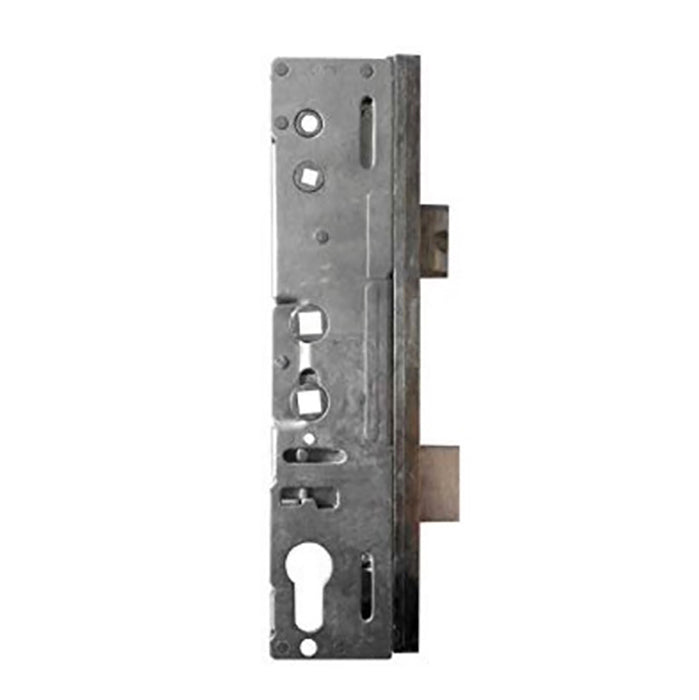

Multipoint Lock Case – 45mm Backset, 92mm/62mm PZ, Double Spindle

Multipoint Lock Case – 45mm Backset, 92mm/62mm PZ, Double Spindle

SKU: LM459262DB-GLC

$78.75 - $78.75
$78.75
$78.75 - $78.75
$78.75
  • PZ: 92mm (3-5/8") and 62mm (2.44")
  • Backset: 45mm (1-3/4")
  • Spindle Diameter: 8mm (5/16")
  • Spindle Type: Double spindle, unsprung
  • Lock Case: Spring latch and deadbolt
  • Handing: Reversible – remove latch screw, reverse, and reinstall
  • Operation: Lift handle to lock, turn key or thumb turn to secure
  • Requires sprung handles (handles with spring cassette) to prevent drooping
  • Lock case only – no faceplate included
  • Sold individually
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Not sure this is the right part?
Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .
*We have a fully-staffed customer support team happy to help!

Aftermarket Multipoint Lock Case – 45/92 (LM459262DB-GLC)

This aftermarket multipoint lock case is designed as a direct replacement for active multipoint lock systems. It features a 45mm backset with dual PZ measurements of 92mm and 62mm, accommodating various handle configurations.

The lock case includes both a spring latch and deadbolt mechanism, providing secure multi-point locking for your door. The 8mm double spindle design works with sprung handle sets only – handles must have a built-in spring cassette to prevent drooping, as the gearbox itself is unsprung.

Handing is fully reversible without replacing parts. Simply remove the screw in the latch, reverse the latch orientation, reinsert, and replace the screw.

Technical Information

  • Backset: 45mm (1-3/4 inches)
  • PZ (Handle to Cylinder Centers): 92mm (3-5/8 inches) and 62mm (2.44 inches)
  • Spindle Diameter: 8mm (5/16 inches)
  • Spindle Type: Double spindle, unsprung
  • Lock Functions: Spring latch and deadbolt
  • Handing: Reversible

Notes

  • Lock case only – no faceplate included
  • Not compatible with unsprung handles – handles must have spring cassette
  • Operation: Lift handle to lock, turn key or cylinder thumb turn to secure. Unlock by turning key or thumb turn, then depress handle to retract latch and deadbolt

Replaces / Replaced by

  • Replaces active multipoint lock cases with matching specifications

Priced and sold each.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

Why do I need sprung handles with this lock case?

This lock case has an unsprung double spindle gearbox, meaning the handles will droop if you use unsprung handles. Your handles must have a built-in spring cassette to return them to the horizontal position.

How do I reverse the latch handing?

Remove the screw in the latch, reverse the latch orientation, reinsert it, and replace the screw. No additional parts are needed.

What is the difference between the 92mm and 62mm PZ measurements?

PZ refers to the distance from the center of the handle spindle to the center of the cylinder. This lock case accommodates both 92mm and 62mm configurations, allowing compatibility with different handle and cylinder setups.
