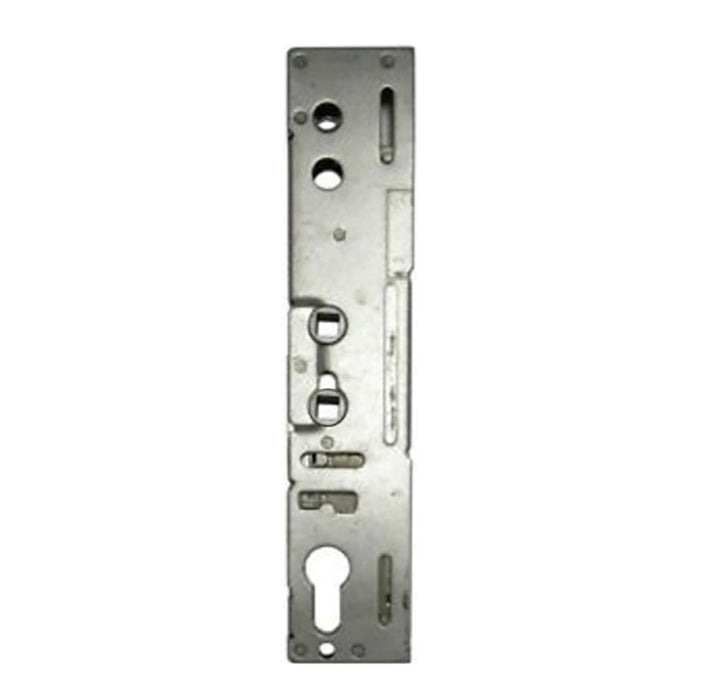

Lockmaster Passive Multipoint Lock Case – 35mm Backset, 92mm PZ

Lockmaster Passive Multipoint Lock Case – 35mm Backset, 92mm PZ

SKU: LM359262PAS-LC

$96.88 - $96.88
$96.88
$96.88 - $96.88
$96.88
  • PZ: 3-5/8" (92mm) and 2.44" (62mm) double spindle
  • Backset: 1-3/8" (35mm)
  • Spindle Diameter: 5/16" (8mm)
  • Lock Case Only: No faceplate, no latch, no deadbolt
  • Application: Inactive/passive (slave) multipoint door
  • Handing: Non-handed
  • Note: Unsprung gearbox – requires handles with spring cassette
  • Sold individually
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Not sure this is the right part?
Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .
*We have a fully-staffed customer support team happy to help!

Lockmaster Passive Multipoint Lock Case – 35/92 (LM359262PAS-LC)

This Lockmaster lock case is designed specifically for inactive or passive (slave) multipoint door applications. It serves as a replacement gearbox for doors where the lock body needs to be updated without replacing the entire multipoint system.

The lock case features a double spindle configuration with 62mm and 92mm centers, accommodating various handle setups. With a 35mm backset and 5/16-inch (8mm) spindle diameter, this gearbox is engineered for precise compatibility with existing multipoint door hardware.

Technical Information

  • Backset: 1-3/8 inches (35mm)
  • PZ (Handle to Cylinder Centers): 3-5/8 inches (92mm) and 2.44 inches (62mm)
  • Spindle Diameter: 5/16 inches (8mm)
  • Spindle Type: Double spindle, unsprung
  • Faceplate: None (lock case only)
  • Latch/Deadbolt: None included
  • Handing: Non-handed (universal)

Notes

  • This is a lock case only – no faceplate, latch, or deadbolt included
  • Double spindle gearboxes are unsprung and require handles with a spring cassette to prevent drooping
  • Operation: Lift handle to lock, turn key or cylinder thumb turn to secure. Unlock by turning key or cylinder thumb turn, then depress handle to retract latch and deadbolt/hook

Priced and sold each.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What does 'passive' or 'slave' mean for a multipoint lock?

A passive or slave lock is used on the inactive door of a double-door setup. It doesn't have its own locking mechanism but works in conjunction with the active door's lock to secure the door.

Why do I need handles with a spring cassette for this lock case?

This lock case has an unsprung double spindle gearbox, meaning it doesn't have internal springs to return the handles to position. Without sprung handles, your door handles will droop after use.

Does this lock case include a faceplate?

No, this is a lock case only. It does not include a faceplate, latch, or deadbolt. You will need to use your existing faceplate or purchase one separately.
