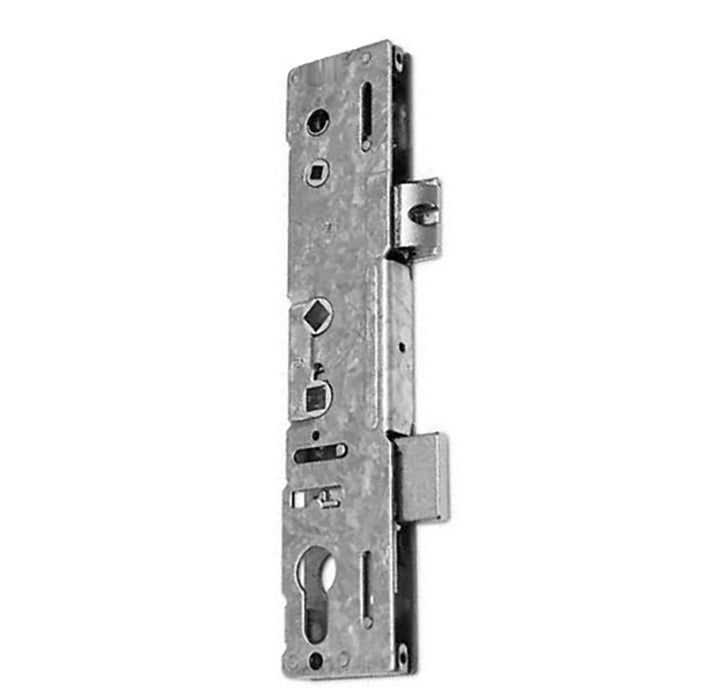

Lockmaster Multipoint Lock Case – 35mm Backset, 92mm PZ

SKU: LM359262DB-GLC

$84.38 - $84.38

$84.38

$84.38 - $84.38

$84.38

PZ: Double spindle – 3-5/8" (92mm) and 2.44" (62mm)
Backset: 1-3/8" (35mm)
Spindle Diameter: 5/16" (8mm)
Lock Case: Spring latch and deadbolt
Faceplate: None – lock case only
Handing: Reversible – undo screw in latch to reverse
Handle Requirement: Must use sprung handles (unsprung handles will droop)
Operation: Lift handle to lock, turn key or thumb turn to secure
Sold individually

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .

*We have a fully-staffed customer support team happy to help!

Product Details

Lockmaster Multipoint Lock Case – 35/92 (LM359262DB-GLC)

This Lockmaster multipoint lock case is designed as a direct replacement for active multipoint lock systems. The gearbox features a double spindle configuration with 92mm and 62mm PZ centers, making it compatible with a variety of multipoint door hardware setups.

The lock case includes both a spring latch and deadbolt mechanism, providing secure locking when engaged. With a 35mm backset and 8mm spindle diameter, this unit fits standard multipoint door preparations. This is a lock case only – no faceplate is included.

Technical Information

Backset: 1-3/8 inches (35mm)
PZ (Handle to Cylinder Centers): 3-5/8 inches (92mm) and 2.44 inches (62mm)
Spindle Diameter: 5/16 inches (8mm)
Lock Type: Spring latch and deadbolt
Handing: Reversible

Notes

This is a lock case only – no faceplate included
Double spindle gearboxes are unsprung and require handles with a spring cassette
Unsprung handles will droop if used with this lock case
To reverse latch: undo the screw in the latch, remove, reverse, reinsert, and replace screw

Replaces / Replaced by

Replaces active multipoint lock cases with matching specifications

Priced and sold each.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What type of handles do I need with this lock case?

This double spindle gearbox is unsprung, so you must use handles with a built-in spring cassette. Unsprung handles will droop and not function properly.

How do I reverse the latch handing?

Undo the screw in the latch to remove it, reverse the latch orientation, reinsert it, and replace the screw.

How does this lock operate?

Lift the handle to engage the lock, then turn the key or cylinder thumb turn to secure. To unlock, turn the key or thumb turn, then depress the handle to retract the latch and deadbolt.
