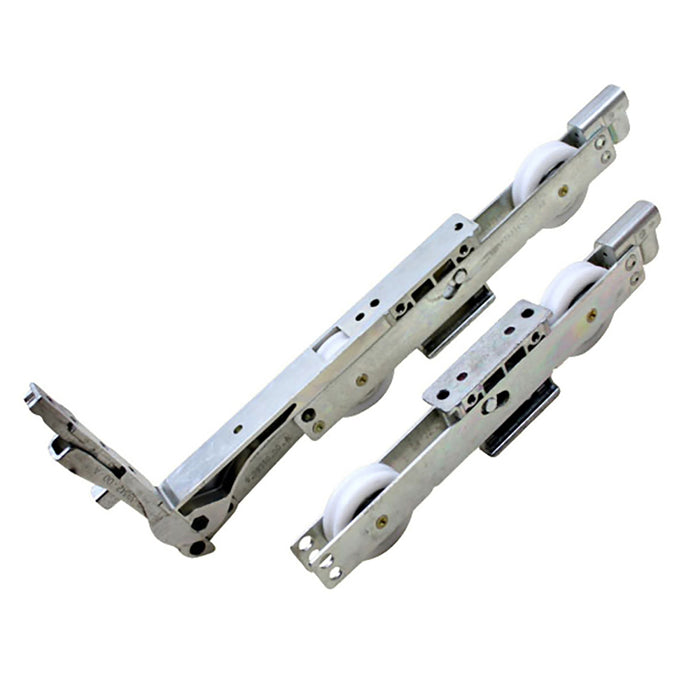

GU Sliding Door Runners with Rollers – 300 lb Capacity

GU Sliding Door Runners with Rollers – 300 lb Capacity

SKU: K-16488-00-0-FG

$231.69 - $231.69
$231.69
$231.69 - $231.69
$231.69
  • Type: Front and rear runners with rollers for lift and slide doors
  • Runner Width: 5/8" (16mm)
  • Rear Runner Length: 9" (228.6mm)
  • Front Runner Length: 12-1/2" (317.5mm)
  • Weight Capacity: 300 lb per panel
  • Construction: High quality steel and zinc die-casting with ferGUard Silver surface sealing
  • Wheels: Fabric reinforced laminated plastic with ball bearings
  • Sold as a set (front and rear rollers included)
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Not sure this is the right part?
Before you order, if you'd like confidence this is the right part for your job, please call us at (816) 221-6543 .
*We have a fully-staffed customer support team happy to help!

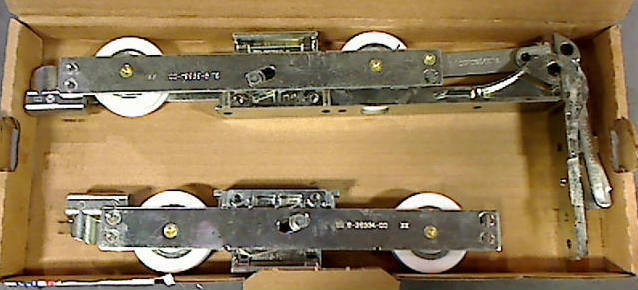

GU Sliding Door Runners with Rollers (K-16488-00-0-FG)

These GU sliding door runners with rollers are designed for lift and slide door systems. The set includes both front and rear runners to provide smooth, reliable operation for heavy sliding door panels.

Built with high quality steel and zinc die-casting construction, these runners feature ferGUard Silver surface sealing for enhanced durability and corrosion resistance. The wheels are made from fabric reinforced laminated plastic and include precision ball bearings for smooth, quiet operation.

Technical Information

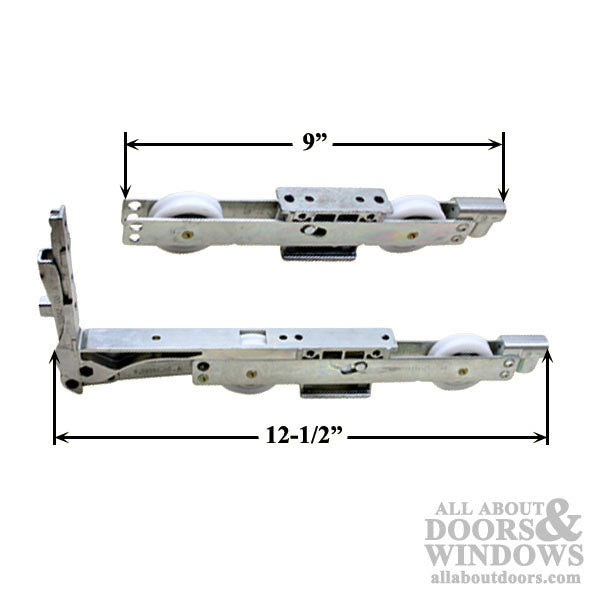

  • Runner Width: 5/8 inch (16mm)
  • Rear Runner Length: 9 inches (228.6mm)
  • Front Runner Length: 12-1/2 inches (317.5mm)
  • Weight Capacity: 300 lb per panel
  • Original Manufacturer Model: K-16488-00-0-1

Notes

  • Compatible with GU lift and slide door systems
  • ferGUard Silver coating provides corrosion protection

Sold as a set including front and rear rollers.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What is included in this runner set?

This set includes both front and rear runners with rollers for lift and slide door systems.

How much weight can these runners support?

Each runner set supports up to 300 pounds per door panel.

What type of doors are these runners designed for?

These runners are designed for GU lift and slide door systems.
