GU Ferco Key-Operated Multipoint Lock – Product Information

GU Ferco Key-Operated Multipoint Lock – Product Information

SKU: GU-Ferco-Key-Operated-Info

INFORMATION ONLY
  • Lock Type: Key-operated multipoint lock with automatic latchbolts
  • Locking Points: 3 points standard, 4 on taller doors
  • Backset: 1-3/4" to 2-9/16" (45-65mm), stocking 1-3/4" (45mm)
  • Faceplate Width: 5/8" (16mm)
  • Handle Shaft: Standard 5/16" (8mm)
  • Deadbolt Throw: 20mm automatic latchbolts
  • Operation: Gear driven, deadlatches operated by key cylinder
  • Compatibility: Works with push/pull bars or interior lever
  • Rounded faceplate ends accommodate various handle heights
  • Fits virtually any door height with applied extensions
  • This is an informational page only
INFORMATION ONLY
Not sure this is the right part?
Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .
*We have a fully-staffed customer support team happy to help!

GU Ferco Key-Operated Multipoint Lock Info

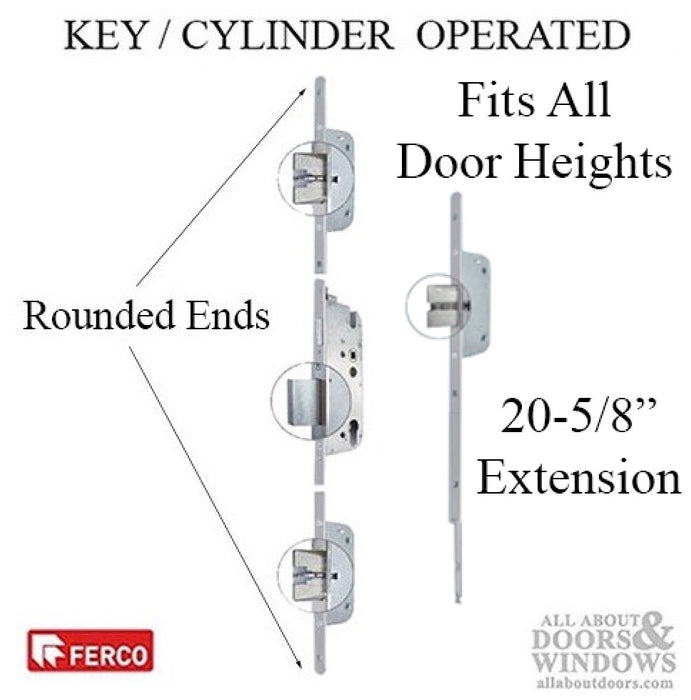

The GU Ferco key-operated multipoint lock is a gear-driven automatic locking system designed for enhanced door security. When the door is pulled shut, the automatic latchbolts instantly throw 20mm and are secured to prevent forced entry. By turning the key or interior thumb turn, the center deadbolt engages and locks the top and bottom latchbolts, creating a 3-deadbolt locking system.

This lock system offers flexibility for various door configurations. It can be used with push/pull bars or interior levers, and features 3 locking points on standard doors with 4 locking points available for taller doors. The rounded faceplate ends accommodate almost any handle height, and the system fits virtually any door height when using applied extensions.

Technical Information

  • Backset Range: 1-3/4 to 2-9/16 inches (45-65mm)
  • Stocking Backset: 1-3/4 inches (45mm)
  • Faceplate Width: 5/8 inches (16mm)
  • Handle Shaft: 5/16 inches (8mm) standard
  • Latchbolt Throw: 20mm automatic
  • Drive Type: Gear driven

Standard Function

  • Rotate the exterior key or interior thumb turn two turns to lock and unlock the door
  • The exterior key or interior thumb turn retracts the latch
  • The interior lever, when used, also retracts the latch

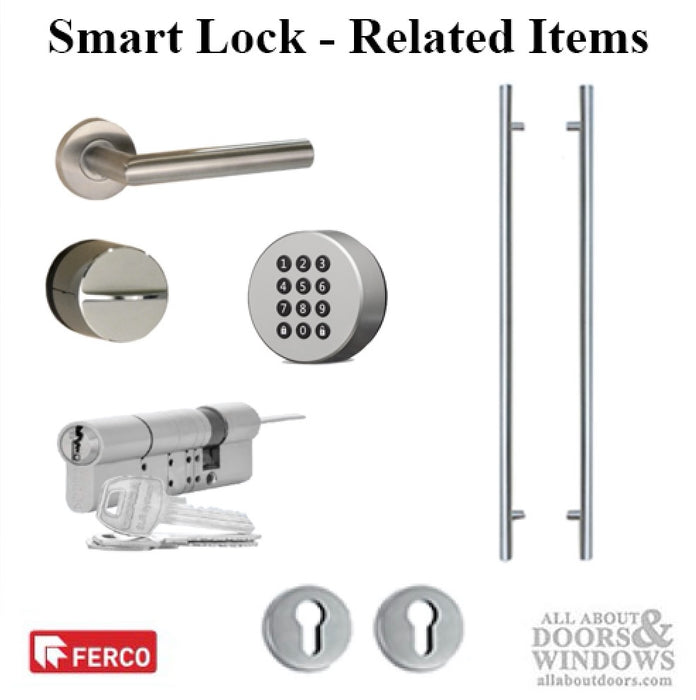

Optional Accessories

  • Smart Cylinder operated by Bluetooth devices
  • DanaPad V3 or Tedee Pro Bluetooth Companion Key Pad
  • Trim Rosettes for Cylinders
  • Pull Bars: 31-1/2, 47-1/7, 70-7/8 inches (round and rectangular)
  • Belcanto Series Stainless Steel or Black Interior half lever set

Notes

  • This is an informational page only, not a purchasable product
  • Backset measurement is from door edge to center of key cylinder
  • Faceplate is the flat piece of metal attached to lock that runs on door edge

This is an informational page only.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

How does the GU Ferco automatic locking system work?

When the door is pulled shut, the automatic latchbolts instantly throw 20mm and are secured. Turning the key or thumb turn engages the center deadbolt, locking all points into a 3-deadbolt system.

What backset sizes are available for the GU Ferco key-operated lock?

The lock is available in backsets ranging from 1-3/4 inches (45mm) to 2-9/16 inches (65mm), with 1-3/4 inches (45mm) being the standard stocking size.

Can this lock be used on taller doors?

Yes, the system fits virtually any door height using applied extensions and offers 4 locking points on taller doors instead of the standard 3.
