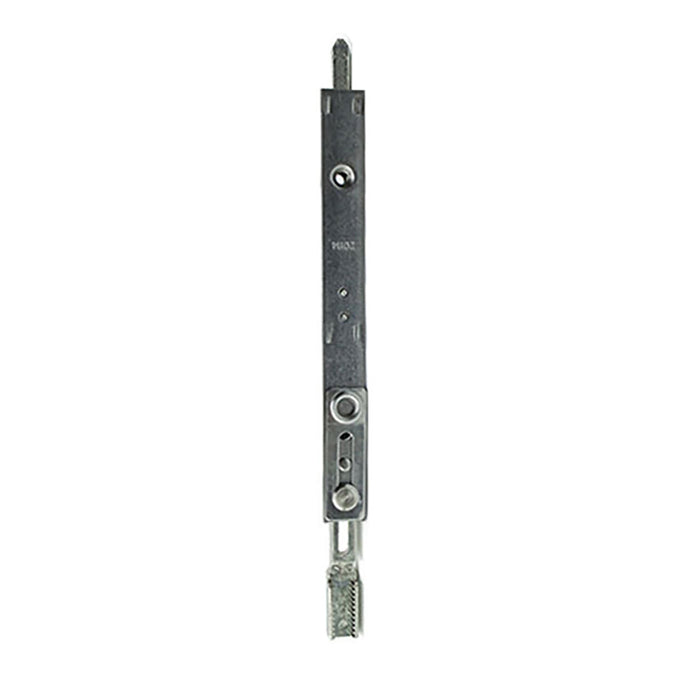

GU Ferco Secury Europa Reversing Gear Top Shootbolt – 16mm Faceplate, Silver Ferguard

GU Ferco Secury Europa Reversing Gear Top Shootbolt – 16mm Faceplate, Silver Ferguard

SKU G-20416-00-0-FG

$26.75 - $26.75
$26.75
$26.75 - $26.75
$26.75
  • Faceplate Width: 5/8" (16mm)
  • Length: 6-1/4" (159mm)
  • Bolt Extension: 3/4" (19mm)
  • Bolt Type: Solid
  • Finish: Silver Ferguard
  • Markings: 20114, 9-42967, E16744, G-U
  • Reversing gear mechanism – bolt extends when gear pulls down, retracts when pushed up
  • Compatible with Europa R2 (6-33632 Series), Rhino (6-33400 Series), and Europa Inactive (6-33638 Series)
  • Sold individually
Visa Mastercard American Express Discover
Estimated Delivery
Between December 13 and December 17
*Delivery dates are estimates and may vary based on availability and shipping method

GU Ferco Secury Europa Reversing Gear Top Shootbolt (G-20416-00-0-FG)

This GU Ferco Secury Europa reversing gear top shootbolt is designed for multipoint lock systems requiring a top-mounted shootbolt with reversing gear operation. The reversing gear mechanism works opposite to standard push/pull shootbolts – when the gear pulls the attachment down, the bolt extends, and when pushed up, the bolt retracts.

Featuring a solid bolt construction with a silver Ferguard finish, this shootbolt extends 3/4 inches (19mm) and has an overall length of 6-1/4 inches (159mm). The 5/8-inch (16mm) faceplate width ensures compatibility with standard multipoint lock systems.

Stamped With

  • 20114
  • 9-42967
  • E16744
  • G-U

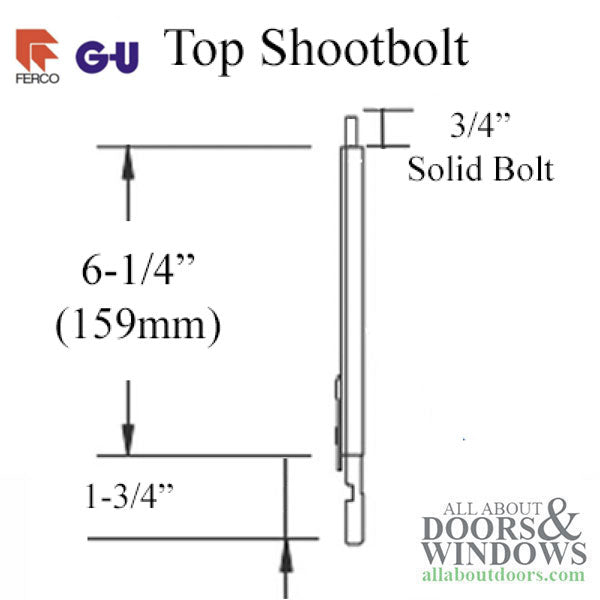

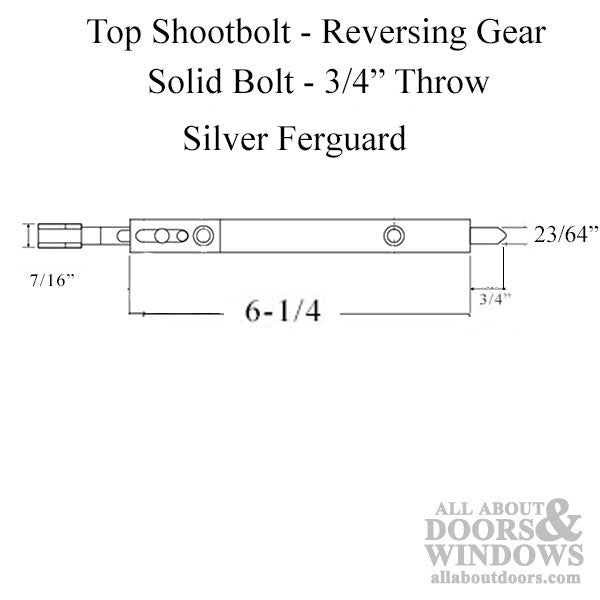

Technical Information

  • Faceplate Width: 5/8 inches (16mm)
  • Length: 6-1/4 inches (159mm)
  • Bolt Extension: 3/4 inches (19mm)
  • Bolt Type: Solid
  • Finish: Silver Ferguard
  • Original Manufacturer SKU: G-20416-00-0-FG

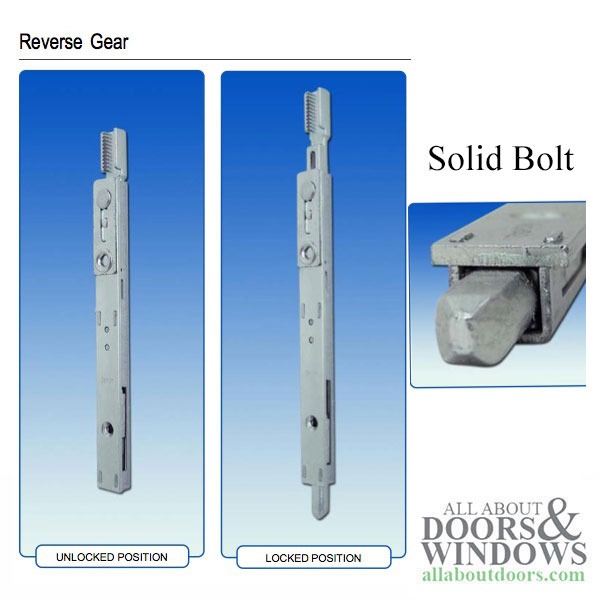

Notes

  • A reversing gear works the opposite of a standard push/pull shootbolt tip
  • When the gear pulls the attachment down, the bolt extends
  • When the attachment is pushed up, the bolt retracts

Compatibility

  • Europa R2: 6-33632 Series (active, key below handle, rollers with shootbolts)
  • Rhino: 6-33400 Series (active, key below handle, hooks with shootbolts)
  • Europa Inactive: 6-33638 Series (key below handle)

Related Parts

  • G-20416-00-01 - Top Shootbolt, Silver Ferguard, Reversing Gear, Solid Bolt
  • G-20416-00-08 - Top Shootbolt, Stainless Steel, Reversing Gear, Solid Bolt
  • 9-34442-00-0-0 - Brass Shootbolt Sleeve, 1/2 inch (12mm) inside diameter

Sold individually.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

How does a reversing gear shootbolt work?

A reversing gear works opposite to a standard push/pull shootbolt. When the gear pulls the attachment down, the bolt extends outward. When the attachment is pushed up, the bolt retracts.

What multipoint lock systems is this shootbolt compatible with?

This shootbolt is compatible with GU Ferco Europa R2 (6-33632 Series), Rhino (6-33400 Series), and Europa Inactive (6-33638 Series) multipoint lock systems.

What is the difference between this and the stainless steel version?

This model (G-20416-00-0-FG) has a Silver Ferguard finish, while the G-20416-00-08 version features a stainless steel finish. Both have the same reversing gear mechanism and solid bolt construction.
