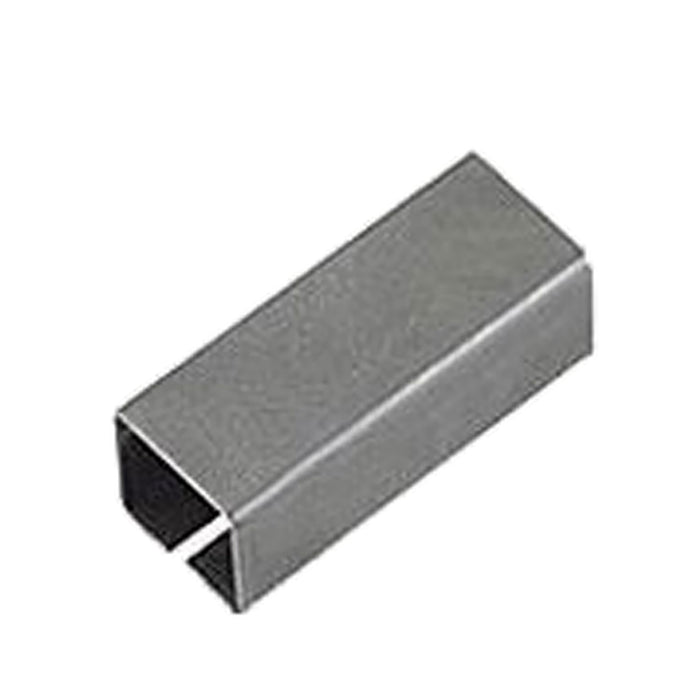

Ferco/G-U Reducing Sleeve – 7mm to 8mm Spindle Adapter

Ferco/G-U Reducing Sleeve – 7mm to 8mm Spindle Adapter

SKU: E-91440-01-0-FG

$26.57 - $26.57
$26.57
$26.57 - $26.57
$26.57
  • Function: Converts 7mm spindle to 8mm or 8mm handle hole to fit 7mm spindle
  • Material: Brass
  • Length: 20 mm (13/16")
  • Inside Diameter: 7 mm (1/4")
  • Outside Diameter: 8 mm (5/16")
  • Compatible with Ferco 7mm spindle systems
  • Can be inserted into mortise lock to adapt handle hole sizing
  • Sold and priced each
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Not sure this is the right part?
Before you order, if you'd like confidence this is the right part for your job, please call us at (816) 221-6543 .
*We have a fully-staffed customer support team happy to help!

Ferco/G-U Reducing Sleeve – 7mm to 8mm (E-91440-01-0-FG)

This brass reducing sleeve provides a simple solution for spindle and handle compatibility issues. It allows you to convert a 7mm spindle to work with 8mm handle holes, or adapt an 8mm handle hole to accept a 7mm spindle.

Ferco multipoint locks originally used a 7mm spindle with matching 7mm handle holes. If you have handles designed for an 8mm spindle, this sleeve bridges the gap. Simply insert the sleeve into the mortise lock or handle to achieve proper fit.

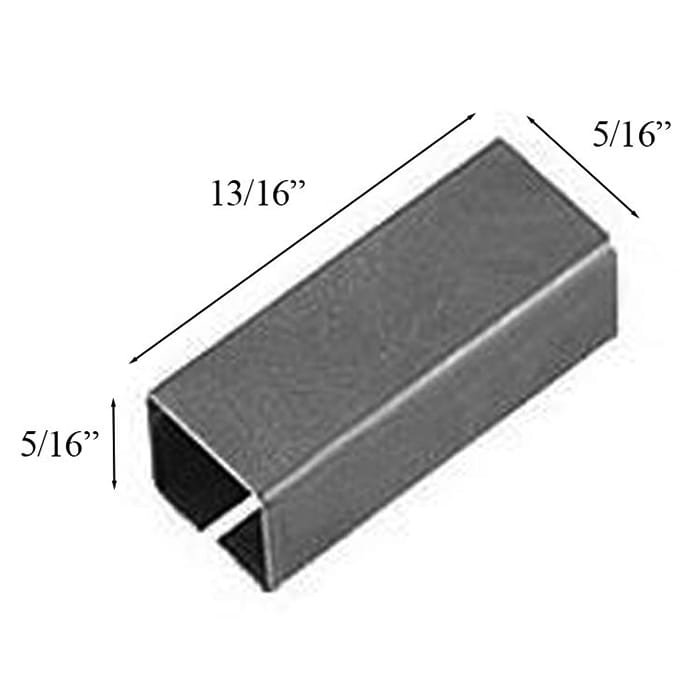

Technical Information

  • Material: Brass
  • Length: 20 mm (13/16 inches)
  • Inside Diameter: 7 mm (1/4 inches)
  • Outside Diameter: 8 mm (5/16 inches)
  • Original Manufacturer SKU: E-91440-01-0-1

Notes

  • Only one length available
  • Designed for Ferco systems with 7mm spindle configuration

Priced and sold each.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

When would I need this reducing sleeve?

Use this sleeve when you have a Ferco lock with a 7mm spindle but want to install handles designed for an 8mm spindle, or when you need to adapt an 8mm handle hole to fit a 7mm spindle.

How do I install the reducing sleeve?

Insert the brass sleeve into either the handle hole or the mortise lock body, depending on which component needs adaptation. The sleeve fits snugly to bridge the 1mm size difference.
