Interlock Optimum 2-Point Mortise Lock – 30mm Backset, 85mm PZ

SKU: DL01-6070

$185.32 - $185.32

$185.32

$185.32 - $185.32

$185.32

PZ (Handle to Cylinder): 3-5/16" (85mm)
Backset: 1-3/16" (30mm)
Faceplate Width: 15/16" (24mm)
Faceplate Length: 8-1/4" (210mm)
Deadbolt Throw: 1/2" (12.7mm)
Spindle Hub: 5/16" (8mm)
Locking Points: 2-point (latch and deadbolt)
Material: Zinc, steel, stainless steel
Stamped: Interlock Assa Abloy
Includes CP12347 Latch Packer for latch length adjustments
Handing can be reversed by rotating the latch bolt
Sold individually

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .

*We have a fully-staffed customer support team happy to help!

Product Details

Interlock Optimum 2-Point Mortise Lock – 30/85 (DL01-6070)

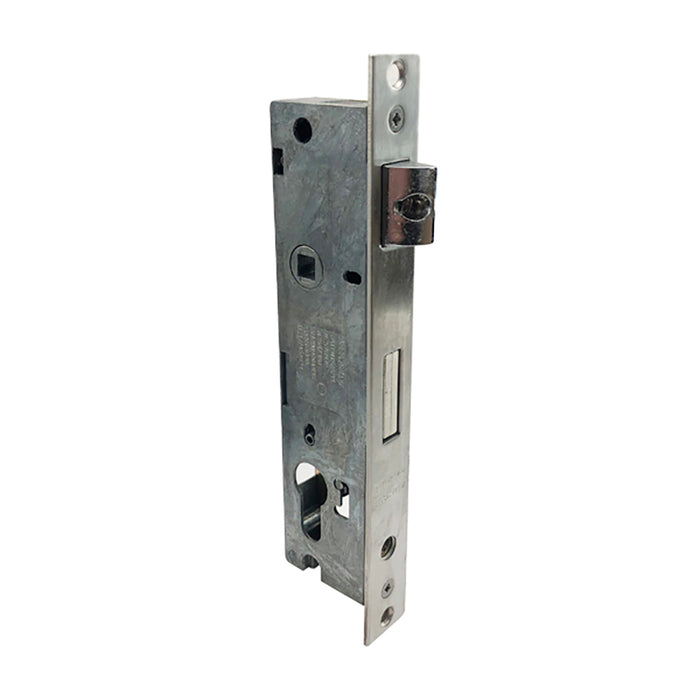

The Interlock Optimum 2-point mortise lock is designed for hinged aluminum doors and provides enhanced security with two locking points. This lock is commonly used by aluminum door manufacturers and serves as a reliable replacement for damaged or missing mortise locks.

When the deadbolt is extended, the spring latch becomes rigid and creates a second locking point, giving you increased security at both the latch and deadbolt positions. The lock operates by pushing the handle down to retract the latch, while the deadbolt is thrown using a key or thumbturn.

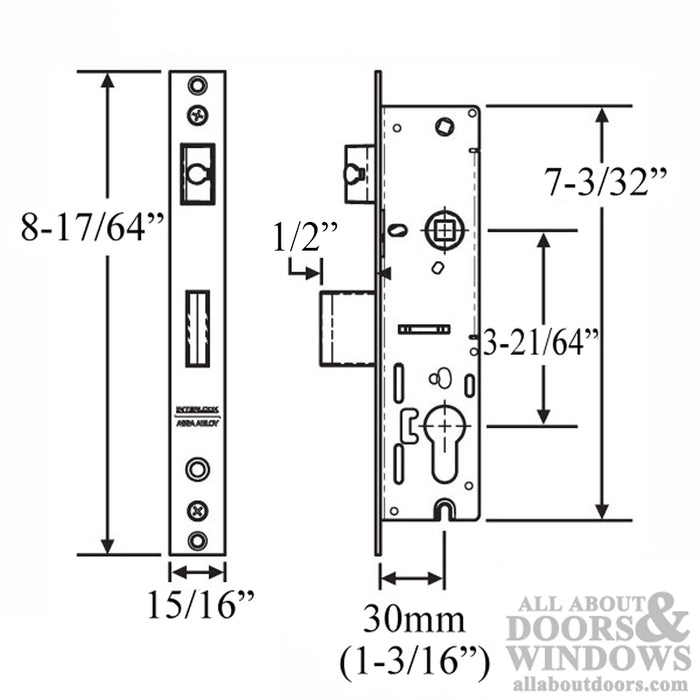

This lock features a 1-3/16 inch (30mm) backset and a 3-5/16 inch (85mm) PZ measurement (handle center to cylinder center). The faceplate measures 15/16 inch (24mm) wide by 8-1/4 inches (210mm) long, with a 1/2 inch (12.7mm) deadbolt throw.

Stamped With

Interlock Assa Abloy

Technical Information

Model: Interlock Optimum
Backset: 1-3/16 inches (30mm)
PZ (Handle to Cylinder): 3-5/16 inches (85mm)
Deadbolt Throw: 1/2 inch (12.7mm)
Faceplate Width: 15/16 inch (24mm)
Faceplate Length: 8-1/4 inches (210mm)
Spindle Hub: 5/16 inch (8mm)
Material: Zinc, steel, stainless steel
Locking Points: 2

Notes

CP12347 Latch Packer is included to allow latch length adjustments when needed. Remove latch, install latch packer, and reinstall latch.
To change handing: Remove screw in latch, rotate latch, reinstall screw.
Interlock Optimum is also available with 40mm or 50mm backset options.
Other configurations available: Standard 2-point lock, Short 1/2 inch throw 4-point lock, Long 1 inch throw 4-point lock.

Sold individually.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

How do I change the handing on this lock?

Remove the screw in the latch, rotate the latch to the opposite orientation, then reinstall the screw.

What is the purpose of the included latch packer?

The CP12347 Latch Packer allows you to adjust the latch length when needed. Simply remove the latch, install the packer, and reinstall the latch.

How does the 2-point locking system work?

When you throw the deadbolt with a key or thumbturn, the spring latch also becomes rigid, creating two secure locking points at both the latch and deadbolt positions.
