Multipoint Lock Handleset Trim – 133mm PZ, Stainless Steel, Modern Square Ends

Multipoint Lock Handleset Trim – 133mm PZ, Stainless Steel, Modern Square Ends

SKU:

$297.00 - $297.85
$297.00
$297.00 - $297.85
$297.00
  • PZ (Handle Spacing): 5-1/4" (133.35mm) – center of handle to center of key or thumbturn
  • Screw Hole Pattern: 8-7/8" (225.4mm)
  • Escutcheon Plate Size: 1.5" x 11" (38.1mm x 279.4mm)
  • Escutcheon Plate Style: Modern with square ends
  • Cylinder: American cylinder, Schlage 5-pin SC1 keyway
  • Key Position: Above handle
  • Material/Finish: Stainless steel
  • Available in 5 functions: Active (keyed with thumbturn), Passage, Inactive, or Dummy

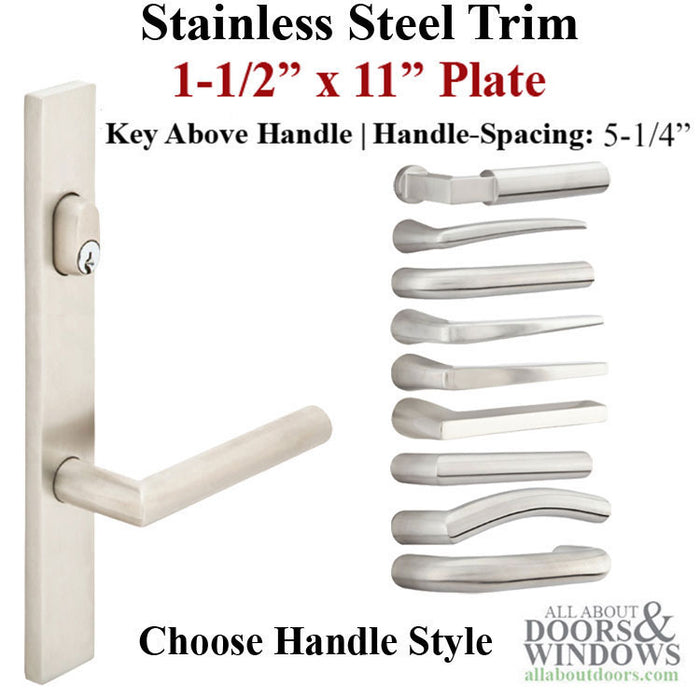

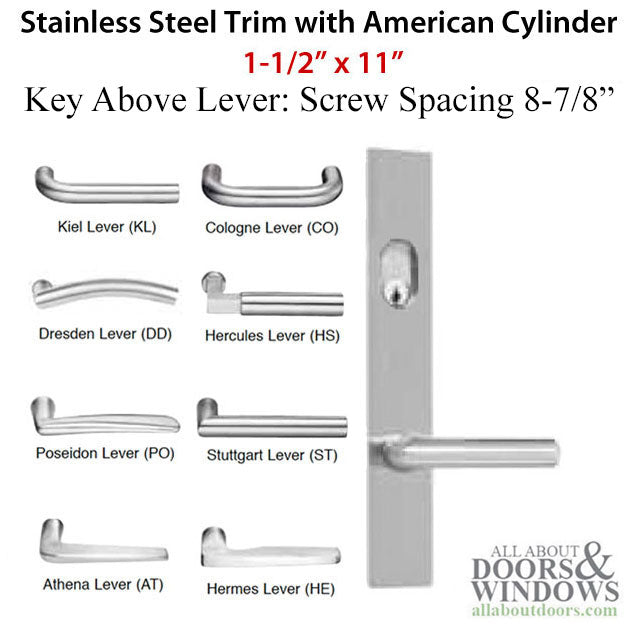

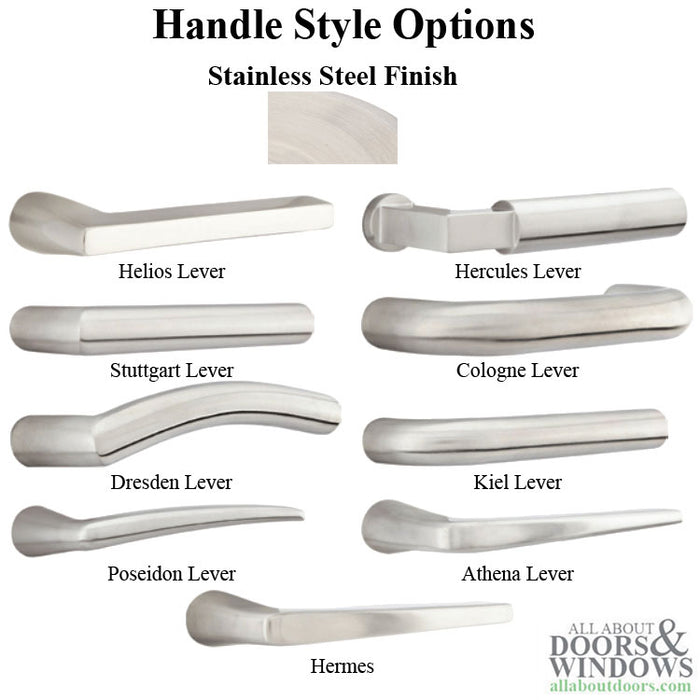

  • Choose from 9 lever/handle designs
  • Handed from factory – cannot be changed after purchase
  • Replaces Neuma multipoint lock hardware
  • Special order item – cannot be returned or exchanged; may take 6-8 weeks for delivery
  • Priced and sold as a package
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Not sure this is the right part?
Before you order, if you'd like confidence this is the right part for your job, please call us at (816) 221-6543 .
*We have a fully-staffed customer support team happy to help!

Multipoint Lock Handleset Trim – 133mm PZ, Stainless Steel (9218A000)

This replacement multipoint lock handleset trim features a modern escutcheon plate with square ends, measuring 1.5 x 11 inches. Constructed from stainless steel with a matching stainless steel finish, this trim set is designed to replace American version multipoint lock hardware for Neuma doors.

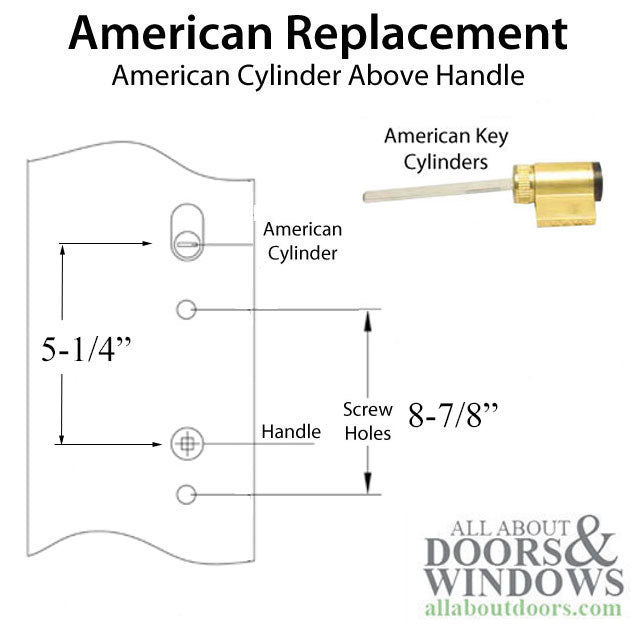

The handleset uses an American cylinder with a Schlage 5-pin SC1 keyway, with the key or thumbturn positioned above the handle. The handle spacing (PZ) measures 5-1/4 inches (133.35mm) from the center of the handle to the center of the key or thumbturn, with a screw hole pattern of 8-7/8 inches.

Technical Information

  • PZ (Handle Spacing): 5-1/4 inches (133.35mm)
  • Screw Hole Pattern: 8-7/8 inches (225.4mm)
  • Escutcheon Plate Size: 1.5 inches x 11 inches (38.1mm x 279.4mm)
  • Escutcheon Plate Style: Modern with square ends
  • Cylinder Type: American cylinder
  • Keyway: Schlage 5-pin SC1
  • Key Position: Above handle
  • Material: Stainless steel
  • Finish: Stainless Steel (SS)

Function Options

  • Active: Keyed American cylinder with inside thumbturn
  • Passage: Non-keyed, no thumbturn
  • Inactive: Non-keyed with inside thumbturn
  • Dummy Passage/Half Passage: Fixed handle outside, passage inside, no thumbturn

Notes

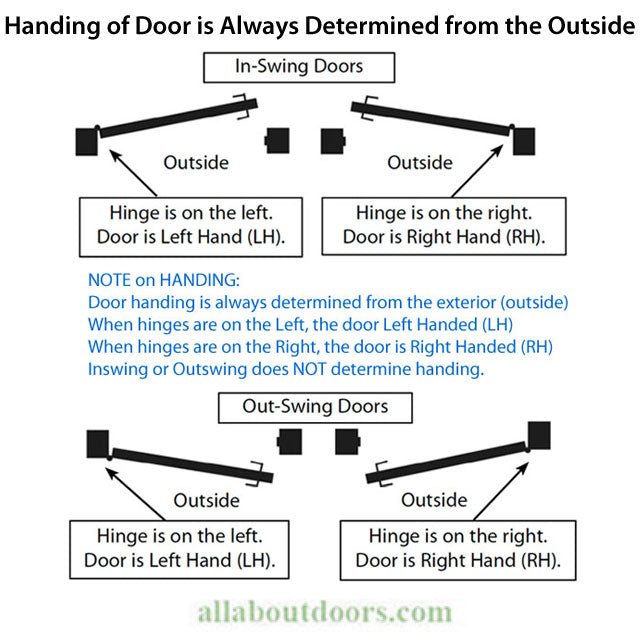

  • These handles are handed from the factory and cannot be changed – review the handing chart carefully before ordering
  • LH (Left Hinge) or RH (Right Hinge) as viewed from outside looking at hinge location
  • If your door has a different screw hole pattern, new holes may be drilled – ensure the lock body will not be in direct line of screws
  • Special order item – cannot be returned or exchanged
  • Delivery may take 6 to 8 weeks

Replaces / Replaced by

  • Replaces American version multipoint lock hardware for Neuma doors

Priced and sold as a package.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What does PZ mean on a multipoint lock handleset?

PZ refers to the handle spacing – the distance from the center of the handle to the center of the key cylinder or thumbturn. This handleset has a PZ of 5-1/4 inches (133.35mm).

Can I change the handing on this handleset after I receive it?

No, these handles are handed from the factory and cannot be changed. Please carefully review the handing chart and measure your door before ordering to ensure you select the correct left-hand or right-hand configuration.

What if my door has a different screw hole pattern?

If your door has a different screw hole pattern, you may be able to drill new holes. However, ensure the lock body inside the door will not be in the direct line of the new screws.
