Multipoint Lock Handleset Trim – 152mm PZ, Stainless Steel

SKU:

$358.88 - $465.48

$358.88

$358.88 - $465.48

$358.88

PZ: 6" (152.4mm)
Crossbore: 1-11/16" (42.9mm) standard
Escutcheon Plate: Rectangular with square ends, 10" x 2" (254mm x 50.8mm)
Cylinder: American, Schlage 5-pin SC1 keyway
Key/Thumb Turn Position: Above handle
Material: Stainless steel
Function Options: Active (keyed with thumb turn), Inactive (non-keyed with thumb turn), or Dummy Pair (fixed handles)
Handing Options: Left hinge or right hinge (viewed from outside)
Special order item – cannot be returned or exchanged
Delivery may take 6-8 weeks
Priced and sold as a package

Quantity

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please call us at (816) 221-6543 .

*We have a fully-staffed customer support team happy to help!

Product Details

Multipoint Lock Handleset Trim – Stainless Steel (921712000)

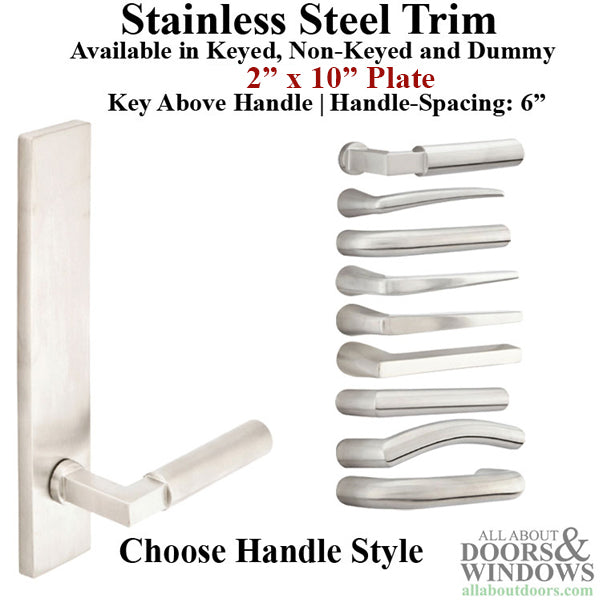

This replacement multipoint lock handleset trim is designed for Peachtree IPD, Trillenium, and select Pella doors. Constructed from durable stainless steel, this trim features a rectangular escutcheon plate with square ends, measuring 10 inches tall by 2 inches wide.

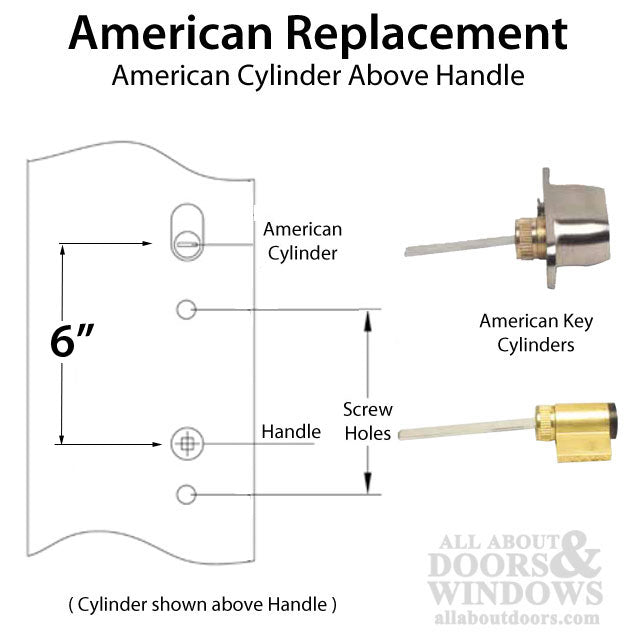

The handleset is configured for doors with a standard 1-11/16 inch crossbore and uses an American cylinder with Schlage 5-pin SC1 keyway. The key and thumb turn are positioned above the handle, with a 6-inch PZ (handle center to cylinder center) measurement.

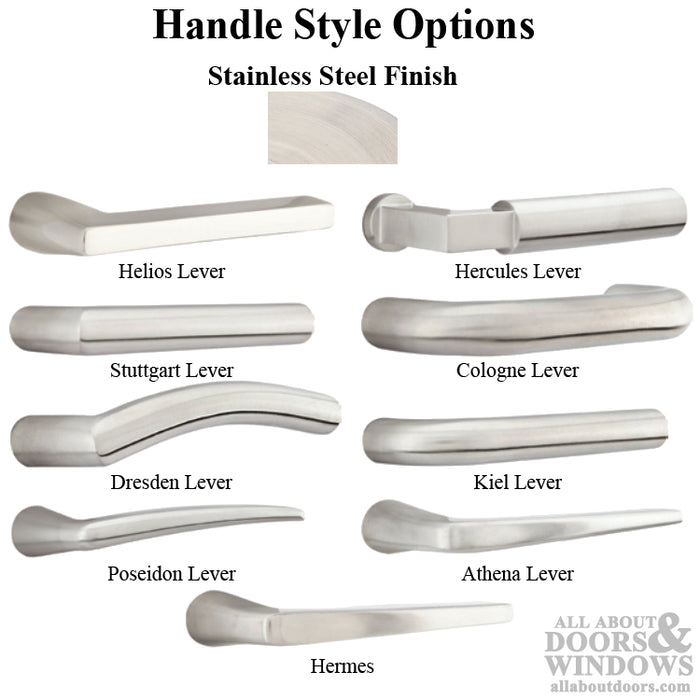

Multiple function options are available: Active (keyed American cylinder with inside thumb turn), Inactive (non-keyed with inside thumb turn), or Dummy Pair (both fixed, rigid handles with no thumb turn). Eight different handle and lever designs are available to match your door's aesthetic.

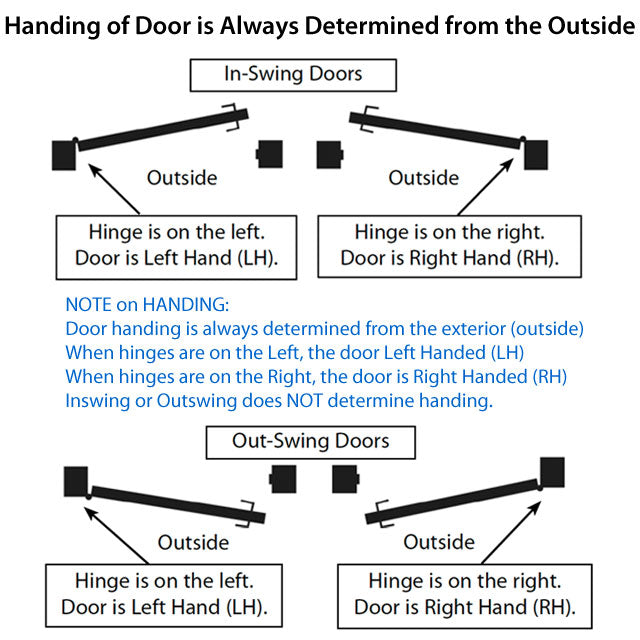

Handing is determined by viewing the door from the outside and noting the hinge location – select Left Hinge (LH) or Right Hinge (RH) accordingly.

Technical Information

PZ (Handle to Cylinder Center): 6 inches (152.4mm)
Crossbore Size: 1-11/16 inches (42.9mm)
Escutcheon Plate Height: 10 inches (254mm)
Escutcheon Plate Width: 2 inches (50.8mm)
Cylinder Type: American
Keyway: Schlage 5-pin SC1
Key/Thumb Turn Position: Above handle
Material: Stainless steel

Notes

This is a special order item and cannot be returned or exchanged
Delivery may take 6-8 weeks
If your door has a different screw hole pattern, a new pattern may work by drilling new screw holes – ensure the lock body will not be in the direct line of screws
For Pella doors: Only compatible with doors that have the optional 1-11/16 inch crossbore – will not work on doors with 2-1/8 inch holes

Replaces / Replaced by

American version multipoint lock hardware for W&F Manufacturing (Trillenium)
Peachtree Citadel IPD multipoint lock
Pella (doors with optional 1-11/16 inch crossbore only)

Priced and sold as a package.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

How do I determine the correct handing for this handleset?

View your door from the outside and note which side the hinges are on. If hinges are on the left, select Left Hinge (LH). If hinges are on the right, select Right Hinge (RH).

Will this work on my Pella door?

This handleset only fits Pella doors with the optional 1-11/16 inch crossbore. It will not work on doors with the standard 2-1/8 inch hole.

What if my door has a different screw hole pattern?

You may be able to drill new screw holes to accommodate this trim. Just ensure the lock body inside the door will not be in the direct path of the new screws.
