Multipoint Lock Handleset Trim – 92mm PZ, Stainless Steel

Multipoint Lock Handleset Trim – 92mm PZ, Stainless Steel

SKU:

$376.88 - $376.88
$376.88
$376.88 - $376.88
$376.88
  • PZ: 3-5/8" (92mm)
  • Escutcheon Plate Height: 11" (279.4mm)
  • Escutcheon Plate Width: 1.5" (38.1mm)
  • Screw Hole Center: 8-3/8" (212.7mm)
  • Escutcheon Plate Style: Modern with square ends
  • Cylinder: American keyway, Schlage 5-pin SC1
  • Key/Thumb Turn Position: Below handle
  • Material: Stainless steel
  • Available in multiple functions: Active (keyed), Passage, Inactive, Dummy Passage, and Dummy Pair
  • Multiple handle/lever designs available
  • Available in left hinge (LH) or right hinge (RH) configurations
  • Special order item – cannot be returned or exchanged
  • Priced and sold as a package
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Not sure this is the right part?
Before you order, if you'd like confidence this is the right part for your job, please call us at (816) 221-6543 .
*We have a fully-staffed customer support team happy to help!

Multipoint Lock Handleset Trim – 92mm PZ, Stainless Steel (921631000)

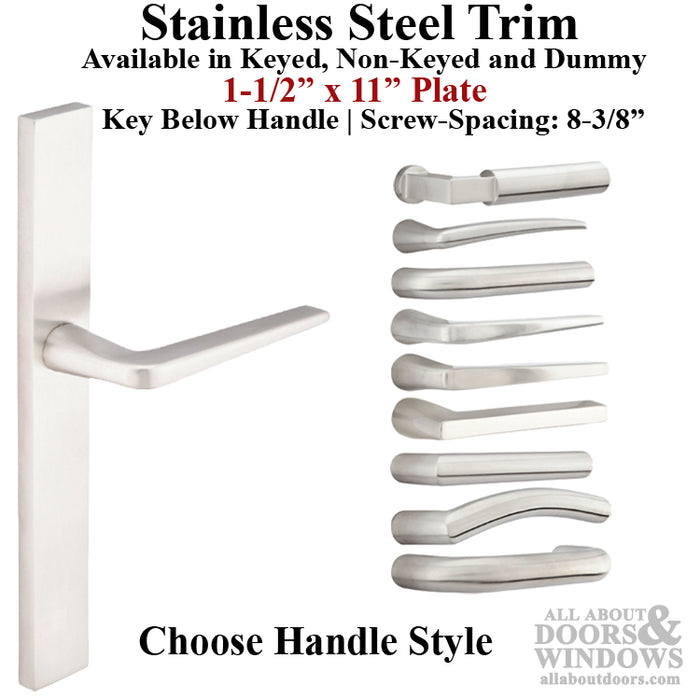

This replacement multipoint lock handleset trim features a modern escutcheon plate design with square ends, crafted from durable stainless steel. The trim is designed to fit doors with a 92mm (3-5/8 inches) PZ measurement and includes an American cylinder with Schlage 5-pin SC1 keyway.

The escutcheon plate measures 11 inches (279.4mm) in height and 1.5 inches (38.1mm) in width, with a screw hole center distance of 8-3/8 inches (212.7mm). The key and thumb turn are positioned below the handle for convenient operation.

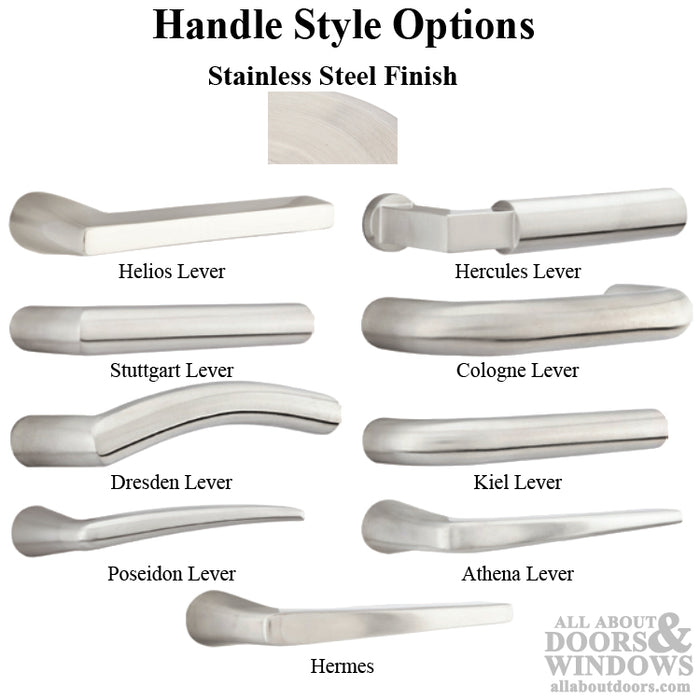

Multiple function options are available to suit your door configuration: Active (keyed American cylinder with inside thumb turn), Passage (non-keyed, no thumb turn), Inactive (non-keyed with inside thumb turn), Dummy Passage/Half Passage (fixed handle outside, passage inside, no thumb turn), and Dummy Pair (both fixed rigid handles, no thumb turn). Eight different handle and lever designs are available to match your aesthetic preferences.

When ordering, select your handing based on hinge location when viewed from outside: Left Hinge (LH) or Right Hinge (RH). If your door has a different screw hole pattern, a new pattern may work by drilling new screw holes – just ensure the lock body in the door will not be in the direct line of the screws.

Technical Information

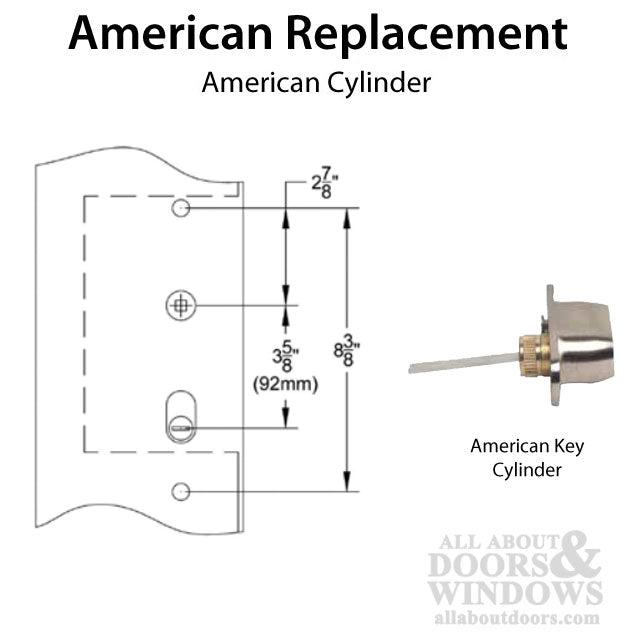

  • PZ (Handle Center to Cylinder Center): 3-5/8 inches (92mm)
  • Escutcheon Plate Height: 11 inches (279.4mm)
  • Escutcheon Plate Width: 1.5 inches (38.1mm)
  • Screw Hole Center: 8-3/8 inches (212.7mm)
  • Material: Stainless Steel
  • Cylinder Type: American
  • Keyway: Schlage 5-pin SC1
  • Key/Thumb Turn Position: Below Handle

Notes

  • Special order item – cannot be returned or exchanged
  • Some handlesets may take 6 to 8 weeks for delivery
  • Carefully check your measurements to reduce chances of error

Replaces / Replaced by

Replaces American version multipoint lock hardware for the following door manufacturers: Ashland, Caradco, Jeldwen Custom Collection (formerly Pozzi, 2 inch x 10 inch plates only), Marvin, PGT, and Weathershield.

Priced and sold as a package.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What does PZ mean?

PZ refers to the distance from the center of the handle to the center of the cylinder (keyhole). This handleset has a 92mm PZ measurement.

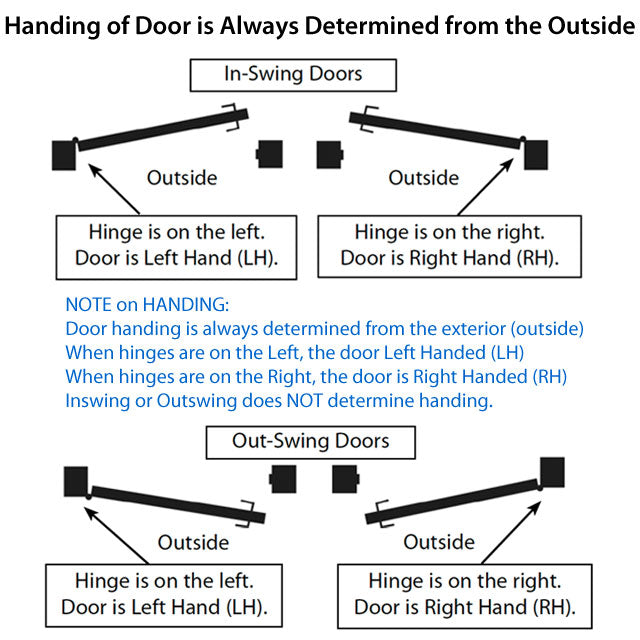

How do I determine the correct handing for my door?

View your door from the outside and note where the hinges are located. If hinges are on the left, select Left Hinge (LH). If hinges are on the right, select Right Hinge (RH).

Can I return this handleset if it doesn't fit?

No, this is a special order item that cannot be returned or exchanged. Please carefully verify all measurements before ordering.
