Multipoint Lock Handleset Trim – 92mm PZ, Stainless Steel

Multipoint Lock Handleset Trim – 92mm PZ, Stainless Steel

SKU:

$420.75 - $420.75
$420.75
$420.75 - $420.75
$420.75
  • PZ: 3-5/8" (92mm)
  • Escutcheon Plate: Rectangular with square corners, 10" x 2" (254mm x 50.8mm)
  • Screw Hole Center: 8-1/2" (215.9mm)
  • Cylinder: Euro cylinder with Schlage 5-pin SC1 keyway
  • Key/Thumb Turn Position: Below handle
  • Finish: Stainless Steel
  • Material: Stainless Steel
  • Multiple function options available: Active (keyed), Passage, Inactive, Dummy Passage, Dummy Pair
  • 9 handle/lever design options available
  • Available in left-hand or right-hand configurations
  • Priced and sold as a package
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Not sure this is the right part?
Before you order, if you'd like confidence this is the right part for your job, please call us at (816) 221-6543 .
*We have a fully-staffed customer support team happy to help!

Multipoint Lock Handleset Trim – 92mm PZ, Stainless Steel (921532000)

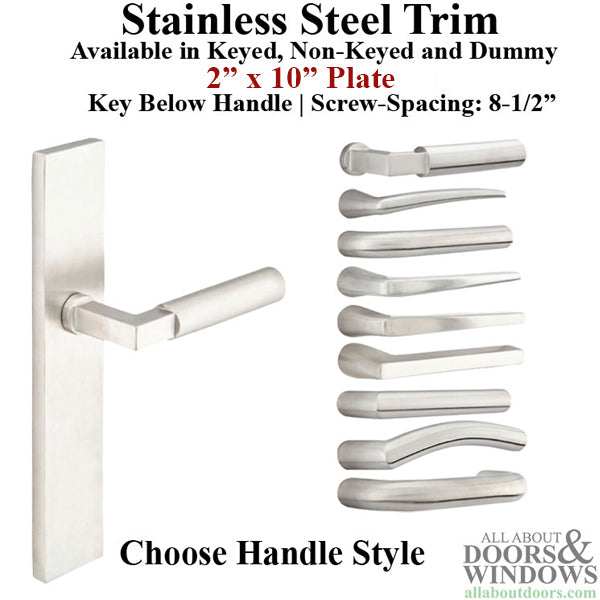

This replacement multipoint lock handleset trim features a clean, modern stainless steel finish with a rectangular escutcheon plate and square corners. Designed for multipoint lock doors with a 92mm PZ (handle center to cylinder center), this trim set offers versatile configuration options to match your specific door setup.

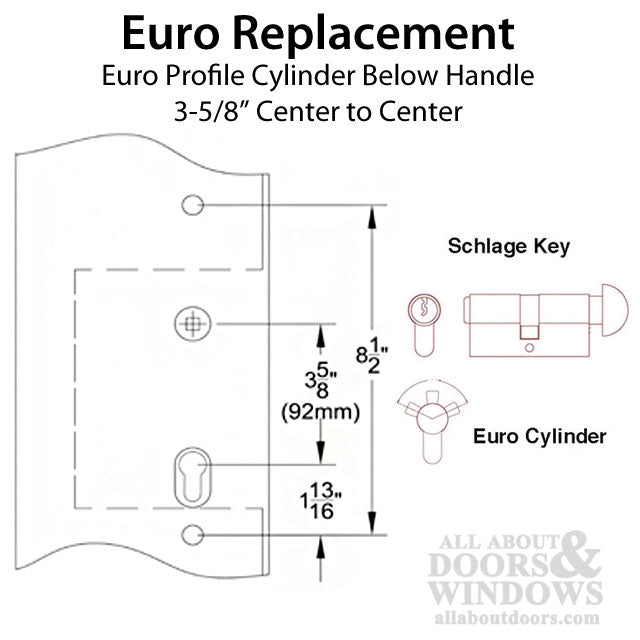

The escutcheon plate measures 10 inches tall by 2 inches wide with an 8-1/2 inch screw hole center spacing. The trim accepts a Euro cylinder with Schlage 5-pin SC1 keyway, positioned below the handle.

Technical Information

  • PZ (Handle to Cylinder Center): 3-5/8 inches (92mm)
  • Escutcheon Plate Height: 10 inches (254mm)
  • Escutcheon Plate Width: 2 inches (50.8mm)
  • Escutcheon Plate Shape: Rectangular with square corners
  • Screw Hole Center: 8-1/2 inches (215.9mm)
  • Cylinder Type: Euro cylinder
  • Keyway: Schlage 5-pin SC1
  • Key/Thumb Turn Position: Below handle
  • Material: Stainless Steel
  • Finish: Stainless Steel

Configuration Options

  • Function: Active (Keyed American Cylinder with inside thumb turn), Passage (Non-keyed, no thumb turn), Inactive (Non-keyed with inside thumb turn), Dummy Passage/Half Passage (Fixed handle outside, passage inside, no thumb turn), Dummy Pair (Both fixed rigid handles, no thumb turn)

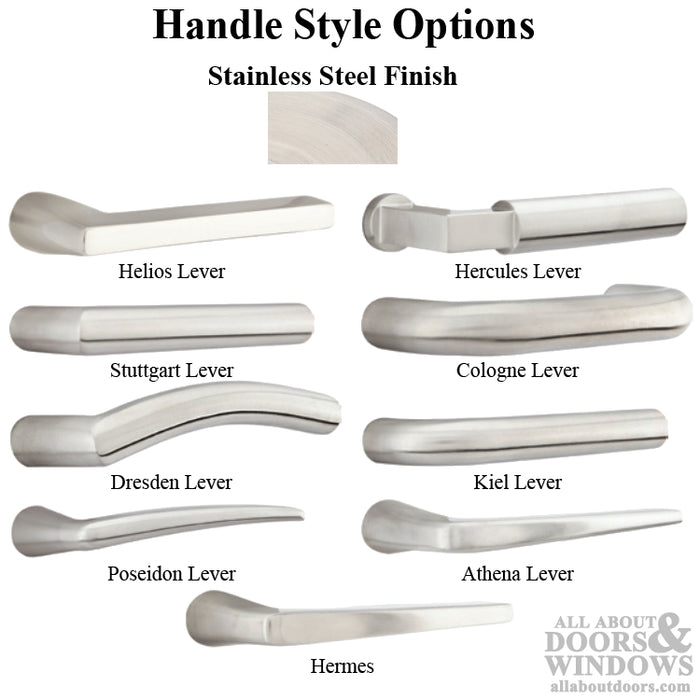

  • Handle/Lever Design: 9 design options available
  • Handing: Left-hand (LH) or Right-hand (RH) – determined by hinge location when viewed from outside

Notes

  • Special order item – cannot be returned or exchanged
  • Delivery may take 6 to 8 weeks
  • If your door has a different screw hole pattern, a new pattern may work by drilling new screw holes – ensure the lock body will not be in the direct line of screws

Replaces / Replaced by

  • Replaces American version multipoint lock hardware for: Crestline, Hoppe, Hurd, JELD-WEN, KFV, Kolbe & Kolbe, Lincoln, Loewen, Paddock Lockmaster, Peachtree, Premium Collection (formerly Norco), Semco, Sierra Pacific, Signature, Simpson, Therma-Tru, Vetter, Willmar, Windsor, Weathershield
  • Replaces some Winkhaus, KFV, Truth, Atrium, Essve, Pease, and Marvin door hardware with Euro cylinder below handle

Priced and sold as a package.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What does PZ mean?

PZ refers to the distance from the center of the handle to the center of the cylinder (keyhole). This handleset has a 92mm PZ measurement.

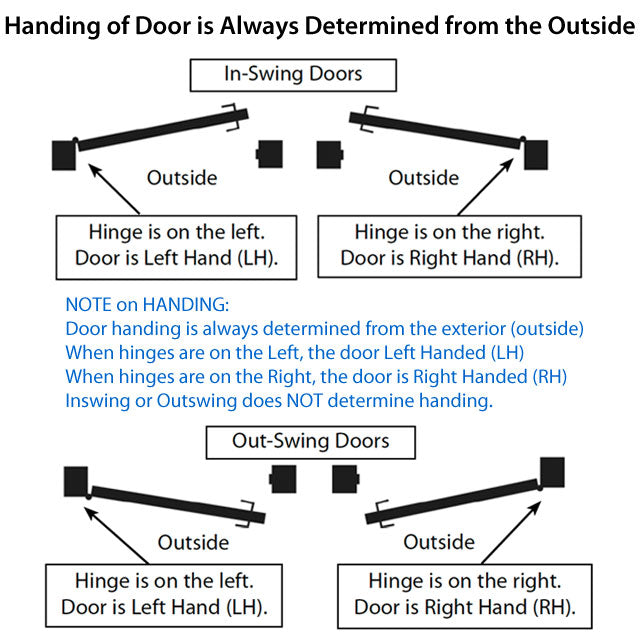

How do I determine the handing for my door?

Stand outside your door and look at where the hinges are located. If the hinges are on the left side, you have a left-hand (LH) door. If the hinges are on the right side, you have a right-hand (RH) door.

Can I return this handleset if it doesn't fit?

No, this is a special order item that cannot be returned or exchanged. Please carefully verify all measurements before ordering.
