Multipoint Lock Handleset Trim – Modern Square Escutcheon, 92mm PZ, Stainless Steel

Multipoint Lock Handleset Trim – Modern Square Escutcheon, 92mm PZ, Stainless Steel

SKU:

$376.88 - $376.88
$376.88
$376.88 - $376.88
$376.88
  • PZ: 3-5/8" (92mm)
  • Escutcheon Plate: 10" x 2" (254mm x 50.8mm) with square ends
  • Screw Hole Center: 7-1/4" (184.2mm)
  • Style: Modern
  • Cylinder: American (Schlage 5-pin SC1 keyway)
  • Key/Thumb Turn Position: Above handle
  • Material: Stainless steel
  • Functions Available: Active (keyed), Passage, Inactive, Dummy Passage, Dummy Pair
  • 8 handle/lever design options available
  • Available in left-hand or right-hand configurations
  • Special order item – cannot be returned or exchanged
  • Priced and sold as a package
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Not sure this is the right part?
Before you order, if you'd like confidence this is the right part for your job, please call us at (816) 221-6543 .
*We have a fully-staffed customer support team happy to help!

Multipoint Lock Handleset Trim – Stainless Steel, 92mm PZ (921432000)

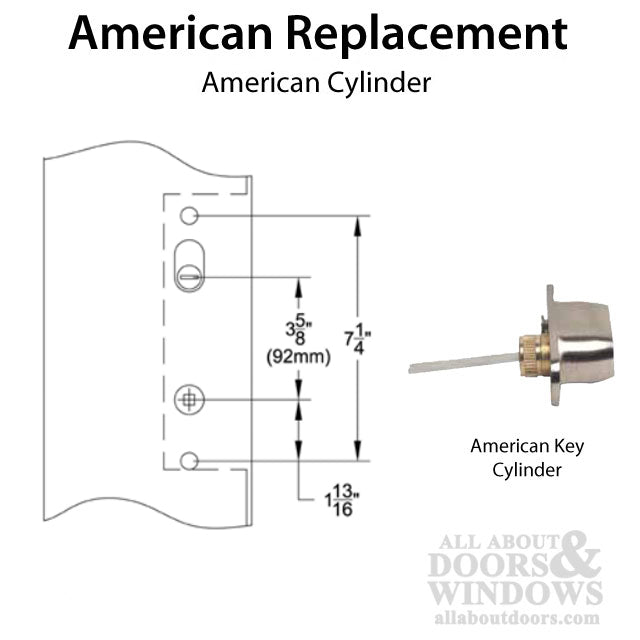

This replacement multipoint lock handleset trim features a modern square-end escutcheon plate design in durable stainless steel. The trim measures 10 inches tall by 2 inches wide (254mm x 50.8mm) with a 7-1/4 inch (184.2mm) screw hole center and 92mm PZ (handle center to cylinder center).

The handleset uses an American cylinder with Schlage 5-pin SC1 keyway, with the key/thumb turn positioned above the handle. Multiple function options are available including active (keyed with inside thumb turn), passage (non-keyed), inactive (non-keyed with thumb turn), dummy passage, and dummy pair configurations.

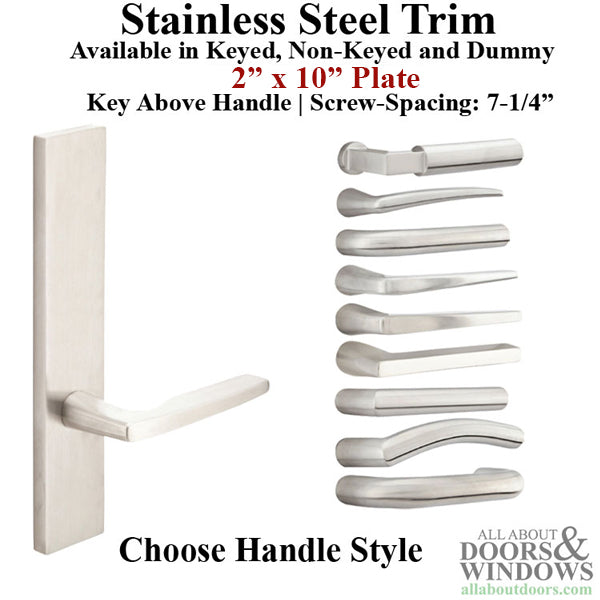

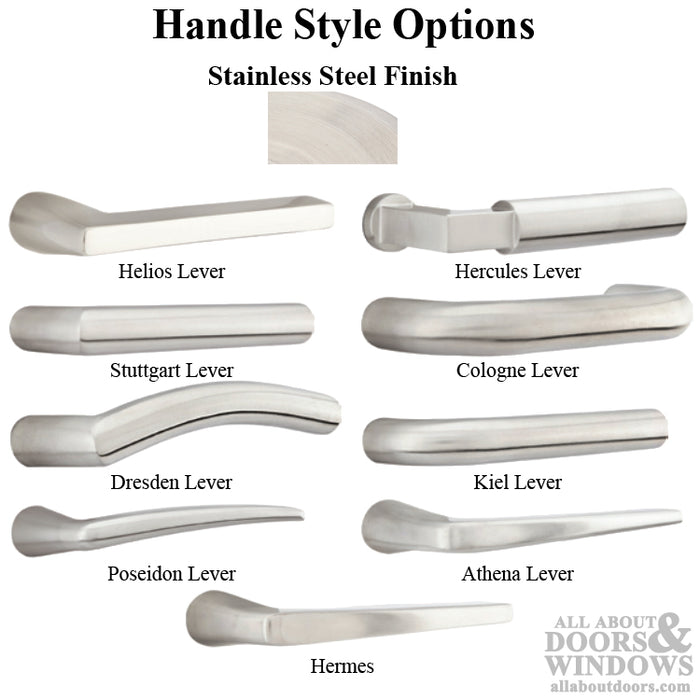

Choose from 8 different handle/lever designs and specify your door handing (left-hand or right-hand, determined by hinge location when viewed from outside).

Technical Information

  • PZ (Handle to Cylinder Center): 3-5/8 inches (92mm)
  • Escutcheon Plate Height: 10 inches (254mm)
  • Escutcheon Plate Width: 2 inches (50.8mm)
  • Screw Hole Center: 7-1/4 inches (184.2mm)
  • Escutcheon Style: Modern with square ends
  • Cylinder Type: American
  • Keyway: Schlage 5-pin SC1
  • Key/Thumb Turn Position: Above handle
  • Material: Stainless steel

Notes

  • Special order item – cannot be returned or exchanged
  • Delivery may take 6 to 8 weeks
  • If your door has a different screw hole pattern, new holes may be drilled – ensure the lock body will not be in the direct line of screws

Replaces / Replaced by

  • Replaces American version multipoint lock hardware for: Ashland, Caradco, Jeldwen Custom Collection (formerly Pozzi, 2 inch x 10 inch plates only), Marvin, PGT, Weathershield

Priced and sold as a package.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What does PZ mean on a multipoint lock handleset?

PZ refers to the distance from the center of the handle to the center of the cylinder (keyhole). This handleset has a 92mm PZ measurement.

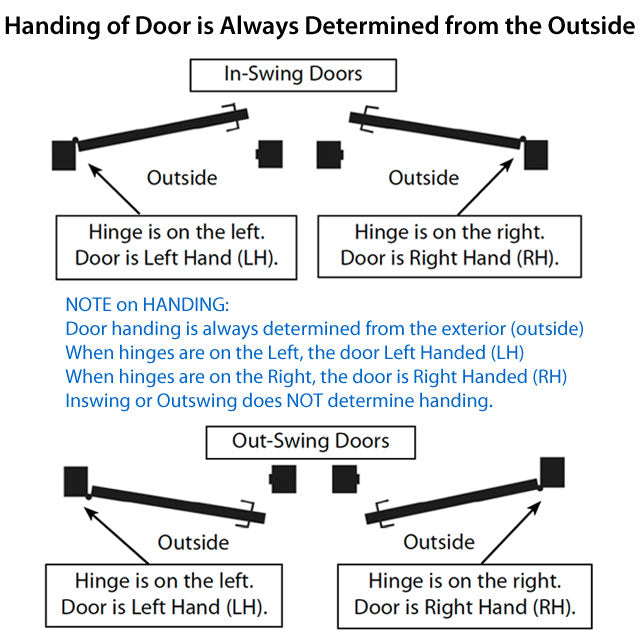

How do I determine the handing for my door?

Stand outside your door and note which side the hinges are on. If hinges are on the left, select Left Hinge (LH). If hinges are on the right, select Right Hinge (RH).

Can I drill new screw holes if my door has a different pattern?

Yes, you can drill new screw holes if needed. Just make sure the lock body inside the door will not be in the direct path of the new screws.
