Multipoint Lock Handleset Trim – 92mm PZ, Stainless Steel

Multipoint Lock Handleset Trim – 92mm PZ, Stainless Steel

SKU:

$374.10 - $376.88
$374.10
$374.10 - $376.88
$374.10
  • PZ: 3-5/8" (92mm)
  • Escutcheon Plate Height: 11" (279.4mm)
  • Escutcheon Plate Width: 1.5" (38.1mm)
  • Screw Hole Center: 7-1/4" (184.2mm)
  • Escutcheon Style: Modern with square ends
  • Cylinder: American keyway, Schlage 5-pin SC1
  • Key/Thumb Turn Position: Above handle
  • Material: Stainless steel
  • Available in multiple functions: Active (keyed), Passage, Inactive, Dummy Passage, or Dummy Pair
  • Choose from 8 handle/lever designs
  • Available in left-hand or right-hand configurations
  • Priced and sold as a package
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Not sure this is the right part?
Before you order, if you'd like confidence this is the right part for your job, please call us at (816) 221-6543 .
*We have a fully-staffed customer support team happy to help!

Multipoint Lock Handleset Trim – 92mm PZ, Stainless Steel (921431000)

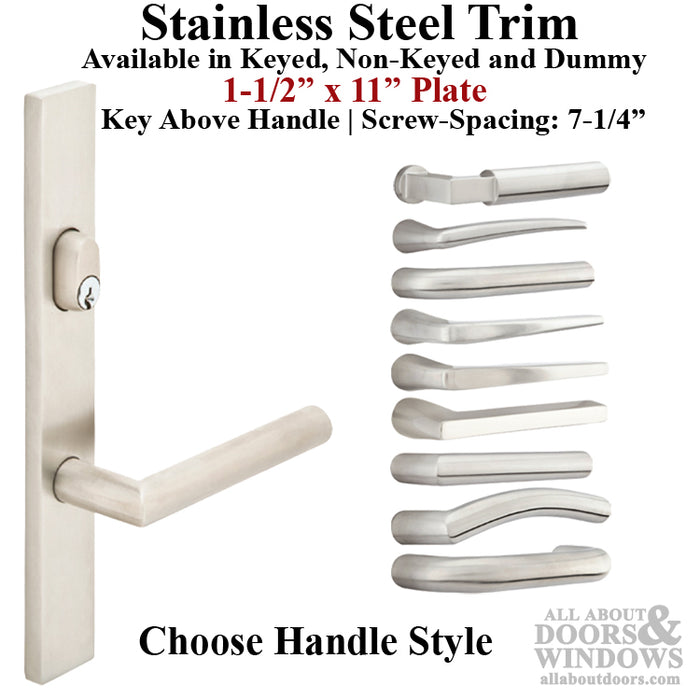

This replacement multipoint lock handleset trim features a modern escutcheon plate design with square ends, crafted from durable stainless steel. The trim is designed to replace American-version multipoint lock hardware on doors from several major manufacturers.

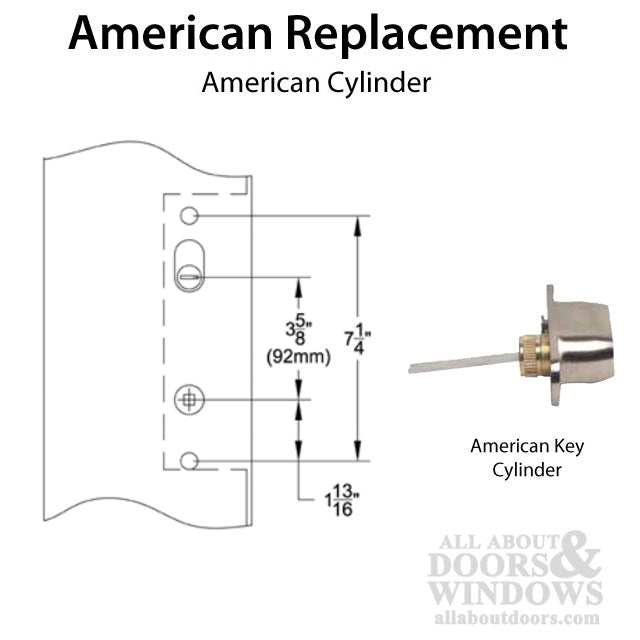

The escutcheon plate measures 11 inches (279.4mm) in height and 1.5 inches (38.1mm) in width, with a screw hole center of 7-1/4 inches (184.2mm). The handle PZ measurement is 3-5/8 inches (92mm), and the trim uses an American cylinder with Schlage 5-pin SC1 keyway. The key or thumb turn is positioned above the handle.

Technical Information

  • PZ: 3-5/8 inches (92mm)
  • Escutcheon Plate Height: 11 inches (279.4mm)
  • Escutcheon Plate Width: 1.5 inches (38.1mm)
  • Screw Hole Center: 7-1/4 inches (184.2mm)
  • Cylinder Type: American
  • Keyway: Schlage 5-pin SC1
  • Key/Thumb Turn Position: Above handle
  • Material: Stainless steel

Notes

  • Available in 5 function options: Active (keyed with thumb turn), Passage (non-keyed), Inactive (non-keyed with thumb turn), Dummy Passage (fixed outside, passage inside), or Dummy Pair (both fixed handles)

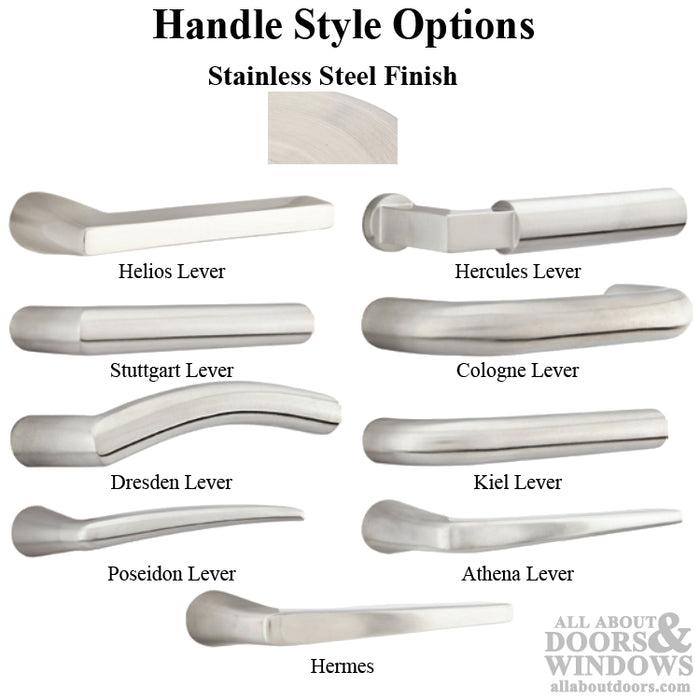

  • 8 handle/lever design options available
  • Handing options: Left Hinge (LH) or Right Hinge (RH) as viewed from outside
  • If your door has a different screw hole pattern, new holes may be drilled if the lock body is not in the direct line of screws
  • Special order item: cannot be returned or exchanged
  • Delivery may take 6 to 8 weeks

Replaces / Replaced by

  • Replaces American-version multipoint lock hardware for: Ashland, Caradco, Jeldwen Custom Collection (formerly Pozzi, 2 inch x 10 inch plates only), Marvin, PGT, and Weathershield

Priced and sold as a package.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What does PZ mean on a multipoint lock?

PZ refers to the distance from the center of the handle to the center of the cylinder (keyhole). This handleset has a PZ of 92mm (3-5/8 inches).

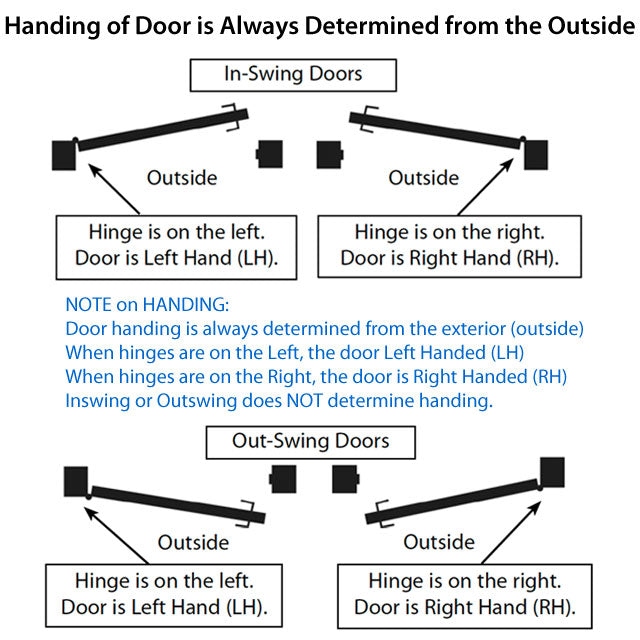

How do I determine the handing for my door?

Stand outside your door and note which side the hinges are on. If hinges are on the left, choose Left Hinge (LH). If hinges are on the right, choose Right Hinge (RH).

Can I install this if my screw hole pattern is different?

Yes, you may be able to drill new screw holes as long as the lock body inside the door is not in the direct path of the new screws.
