Multipoint Lock Handleset Trim – Modern Square Escutcheon, Stainless Steel

Multipoint Lock Handleset Trim – Modern Square Escutcheon, Stainless Steel

SKU:

$452.32 - $452.32
$452.32
$452.32 - $452.32
$452.32
  • PZ: 4-1/8" (105mm)
  • Escutcheon Plate Height: 10" (254mm)
  • Escutcheon Plate Width: 2" (50.8mm)
  • Screw Hole Center: 8-1/2" (215.9mm)
  • Escutcheon Plate Style: Modern with square ends
  • Cylinder: American cylinder, Schlage 5-pin SC1 keyway
  • Key/Thumb Turn Position: Above handle
  • Material: Stainless steel
  • Handing Options: Left hinge or right hinge (viewed from outside)
  • Function Options: Active (keyed), Passage, Inactive, Dummy Passage, or Dummy Pair

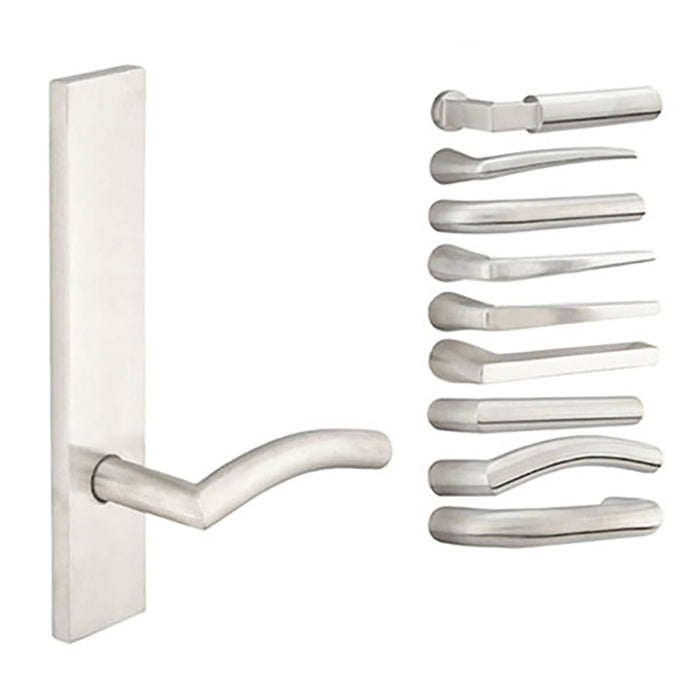

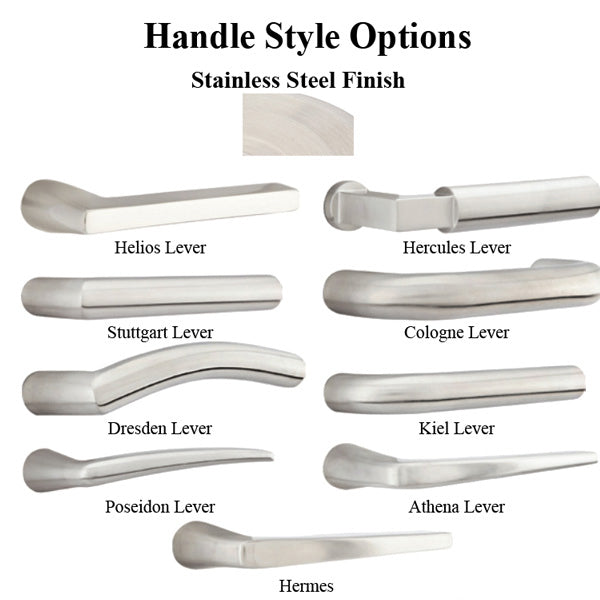

  • 10 handle/lever design options available
  • Special order item – cannot be returned or exchanged
  • Priced and sold as a package
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Not sure this is the right part?
Before you order, if you'd like confidence this is the right part for your job, please call us at (816) 221-6543 .
*We have a fully-staffed customer support team happy to help!

Multipoint Lock Handleset Trim – Stainless Steel, Modern (921332000)

This replacement multipoint lock handleset trim features a modern escutcheon plate design with square ends, crafted from durable stainless steel. The trim is designed to work with American cylinder multipoint lock systems and includes a Schlage 5-pin SC1 keyway with the key/thumb turn position located above the handle.

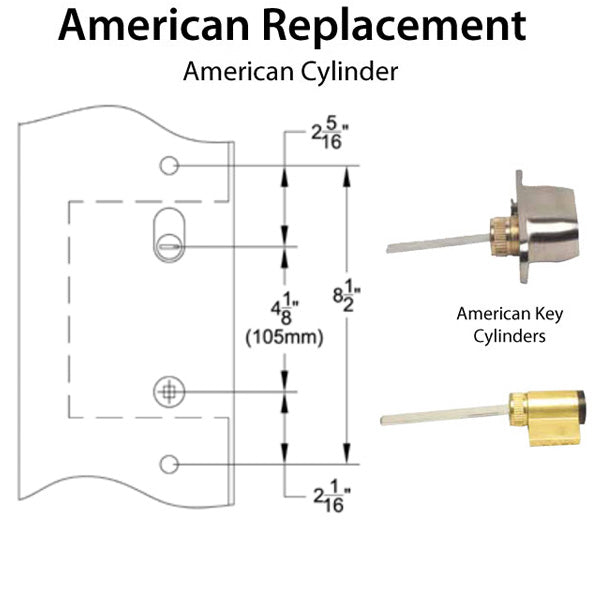

The escutcheon plate measures 10 inches in height and 2 inches in width, with a screw hole center distance of 8-1/2 inches. The handle PZ (distance from handle center to cylinder center) is 4-1/8 inches (105mm).

Multiple configuration options are available to match your specific door requirements. Choose from five function types: Active (keyed American cylinder with inside thumb turn), Passage (non-keyed, no thumb turn), Inactive (non-keyed with inside thumb turn), Dummy Passage/Half Passage (fixed handle outside, passage inside, no thumb turn), or Dummy Pair (both fixed rigid handles, no thumb turn). Ten different handle/lever designs are available, and handing options include left hinge or right hinge as viewed from outside.

Technical Information

  • Escutcheon Plate Style: Modern with square ends
  • Escutcheon Plate Height: 10 inches (254mm)
  • Escutcheon Plate Width: 2 inches (50.8mm)
  • Screw Hole Center: 8-1/2 inches (215.9mm)
  • Handle PZ: 4-1/8 inches (105mm)
  • Cylinder Type: American cylinder
  • Keyway: Schlage 5-pin SC1
  • Key/Thumb Turn Position: Above handle
  • Material: Stainless steel

Notes

  • If your door has a different screw hole pattern, a new pattern may work by drilling new screw holes – ensure the lock body will not be in the direct line of screws
  • Special order item – cannot be returned or exchanged
  • Some handle sets may take 6 to 8 weeks for delivery
  • Carefully check your measurements to reduce chances of error

Replaces / Replaced by

  • Replaces American version multipoint lock hardware for Andersen doors

Priced and sold as a package.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What does PZ mean on a multipoint lock handleset?

PZ refers to the distance from the center of the handle to the center of the cylinder (keyhole). This handleset has a PZ of 4-1/8 inches (105mm).

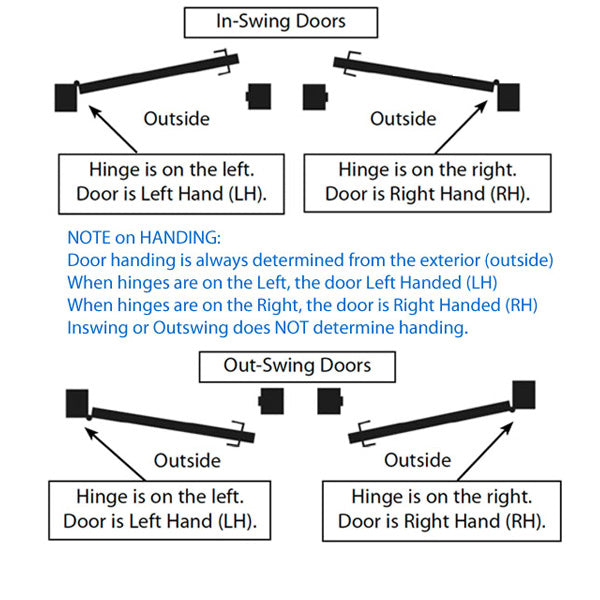

How do I determine the correct handing for my door?

Stand outside your door and note which side the hinges are on. If hinges are on the left, select Left Hinge (LH). If hinges are on the right, select Right Hinge (RH).

Can I drill new screw holes if my door has a different pattern?

Yes, you can drill new screw holes if needed, but make sure the lock body inside the door will not be in the direct path of the new screws.
