Multipoint Lock Handleset Trim – 92mm PZ, Stainless Steel

Multipoint Lock Handleset Trim – 92mm PZ, Stainless Steel

SKU:

$376.88 - $376.88
$376.88
$376.88 - $376.88
$376.88
  • PZ: 3-5/8" (92mm)
  • Escutcheon Plate Height: 10" (254mm)
  • Escutcheon Plate Width: 2" (50.8mm)
  • Screw Hole Center: 7-9/16" (192.1mm)
  • Escutcheon Style: Modern with square ends
  • Cylinder: American (Schlage 5-pin SC1 keyway)
  • Key/Thumb Turn Position: Above handle
  • Material: Stainless steel
  • Multiple function options available: Active (keyed), Passage, Inactive, Dummy Passage, or Dummy Pair
  • 8 handle/lever design options available
  • Available in left-hand or right-hand configurations (viewed from outside, hinge location)
  • Special order item – cannot be returned or exchanged
  • Priced and sold as a package
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Not sure this is the right part?
Before you order, if you'd like confidence this is the right part for your job, please call us at (816) 221-6543 .
*We have a fully-staffed customer support team happy to help!

Multipoint Lock Handleset Trim – 92mm PZ, Stainless Steel (921232000)

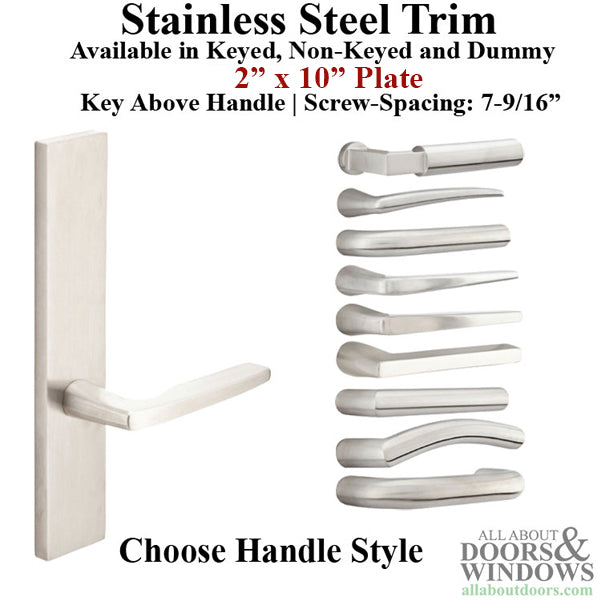

This replacement multipoint lock handleset trim is designed for doors equipped with American cylinder multipoint locking systems. Featuring a modern escutcheon plate design with square ends, this trim set provides a clean, contemporary appearance while maintaining secure functionality.

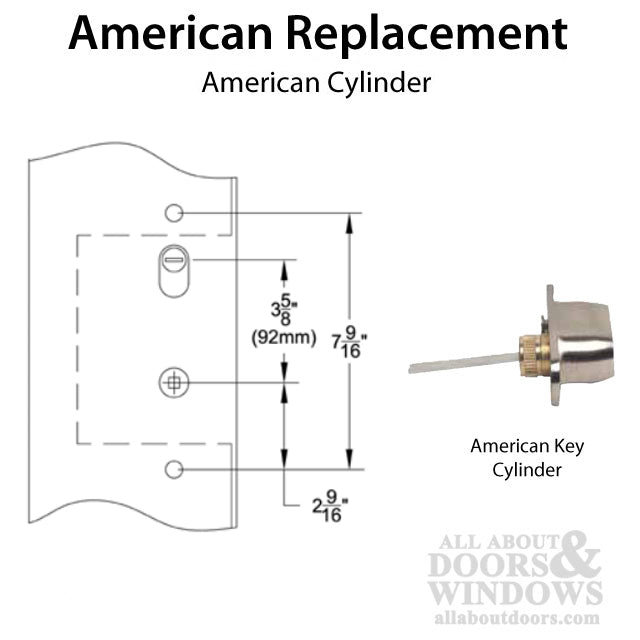

The escutcheon plate measures 10 inches (254mm) in height and 2 inches (50.8mm) in width, with a screw hole center spacing of 7-9/16 inches (192.1mm). The handle PZ (distance from handle center to cylinder center) is 3-5/8 inches (92mm), which is a standard measurement for many multipoint lock systems.

This handleset uses an American cylinder with a Schlage 5-pin SC1 keyway, with the key or thumb turn positioned above the handle. The trim is constructed from durable stainless steel for long-lasting performance and corrosion resistance.

Technical Information

  • PZ (Handle to Cylinder Center): 3-5/8 inches (92mm)
  • Escutcheon Plate Height: 10 inches (254mm)
  • Escutcheon Plate Width: 2 inches (50.8mm)
  • Screw Hole Center: 7-9/16 inches (192.1mm)
  • Escutcheon Style: Modern with square ends
  • Cylinder Type: American
  • Keyway: Schlage 5-pin SC1
  • Key/Thumb Turn Position: Above handle
  • Material: Stainless steel

Notes

  • Available functions: Active (keyed with thumb turn), Passage (non-keyed, no thumb turn), Inactive (non-keyed with thumb turn), Dummy Passage (fixed outside handle, passage inside), Dummy Pair (both handles fixed)

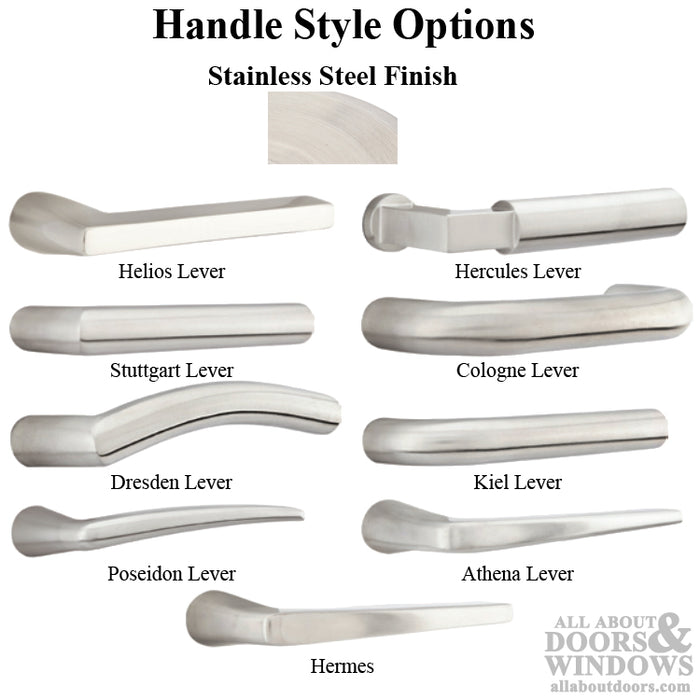

  • 8 handle/lever design options available – see drop-down menu
  • Handing options: Left Hinge (LH) or Right Hinge (RH) – determined by viewing from outside and noting hinge location
  • If your door has a different screw hole pattern, new holes may be drilled – ensure the lock body will not be in the direct line of screws
  • Special order item – cannot be returned or exchanged
  • Delivery may take 6 to 8 weeks

Replaces / Replaced by

  • Replaces American version multipoint lock hardware for BiltBest, G-U, and Hurd (Energy Saver) doors

Priced and sold as a package.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What does PZ mean on a multipoint lock handleset?

PZ refers to the distance from the center of the handle to the center of the cylinder (keyhole). This handleset has a PZ of 3-5/8 inches (92mm), which is a common measurement for multipoint lock systems.

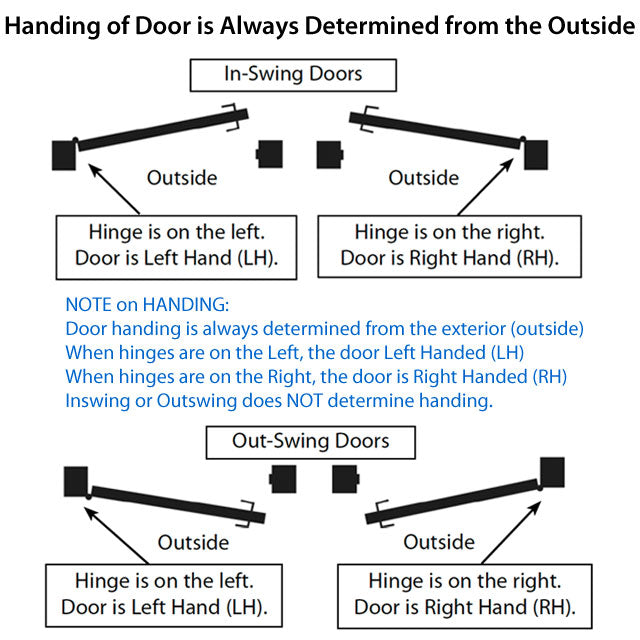

How do I determine the correct handing for my door?

Stand outside your door and look at where the hinges are located. If the hinges are on the left side, select Left Hinge (LH). If the hinges are on the right side, select Right Hinge (RH).

Can I drill new screw holes if my door has a different pattern?

Yes, you can drill new screw holes if needed. Just make sure the lock body inside the door will not be in the direct path of the new screws to avoid damaging the lock mechanism.
