G-U Multipoint Handleset Trim – 92mm PZ, Stainless Steel

G-U Multipoint Handleset Trim – 92mm PZ, Stainless Steel

SKU:

$525.94 - $525.94
$525.94
$525.94 - $525.94
$525.94
  • PZ: 3-5/8" (92mm)
  • Escutcheon Plate Height: 11" (279.4mm)
  • Escutcheon Plate Width: 1.5" (38.1mm)
  • Screw Hole Center: 7-9/16" (192.1mm)
  • Key/Thumb Turn Position: Above Handle
  • Cylinder: American Keyway (Schlage 5 Pin SC1)
  • Escutcheon Style: Modern with Square Ends
  • Material: Stainless Steel
  • Multiple function options available: Active (keyed), Passage, Inactive, Dummy Passage, or Dummy Pair
  • 8 handle/lever design options available
  • Available in Left Hinge (LH) or Right Hinge (RH) configurations
  • Special order item – cannot be returned or exchanged
  • Priced and sold as a package
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Not sure this is the right part?
Before you order, if you'd like confidence this is the right part for your job, please call us at (816) 221-6543 .
*We have a fully-staffed customer support team happy to help!

G-U Multipoint Handleset Trim – 92mm PZ, Stainless Steel (921231000)

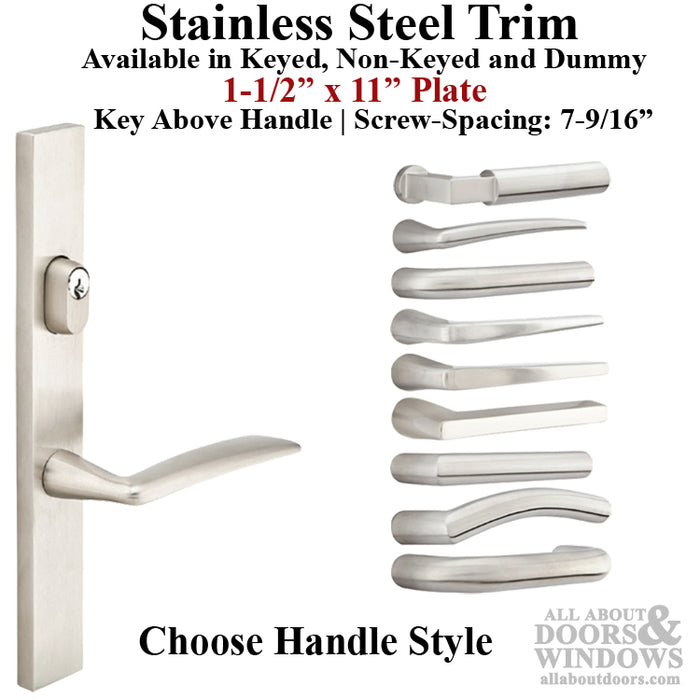

This replacement multipoint lock handle set trim features a modern escutcheon plate design with square ends, crafted from durable stainless steel. Designed as a direct replacement for American version multipoint lock hardware used on BiltBest, G-U, and Hurd (Energy Saver) doors.

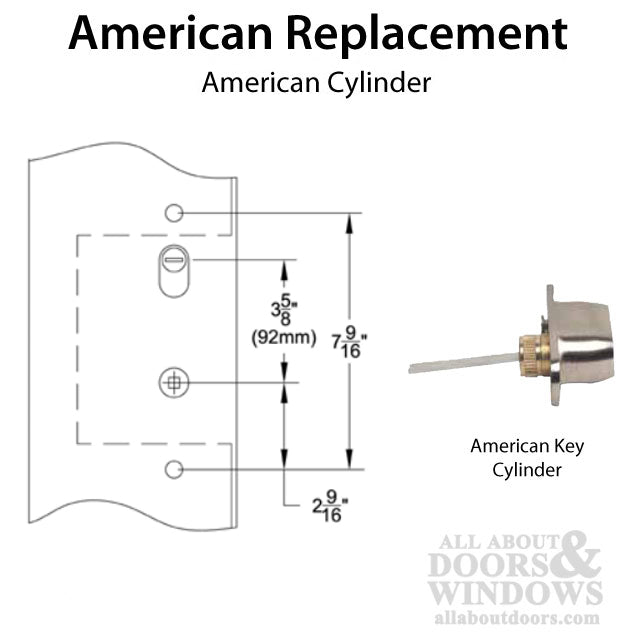

The escutcheon plate measures 11 inches tall by 1.5 inches wide, with a screw hole center spacing of 7-9/16 inches. This handleset uses an American cylinder with Schlage 5 Pin SC1 keyway, with the key/thumb turn position located above the handle. The handle PZ (distance from handle center to cylinder center) is 3-5/8 inches (92mm).

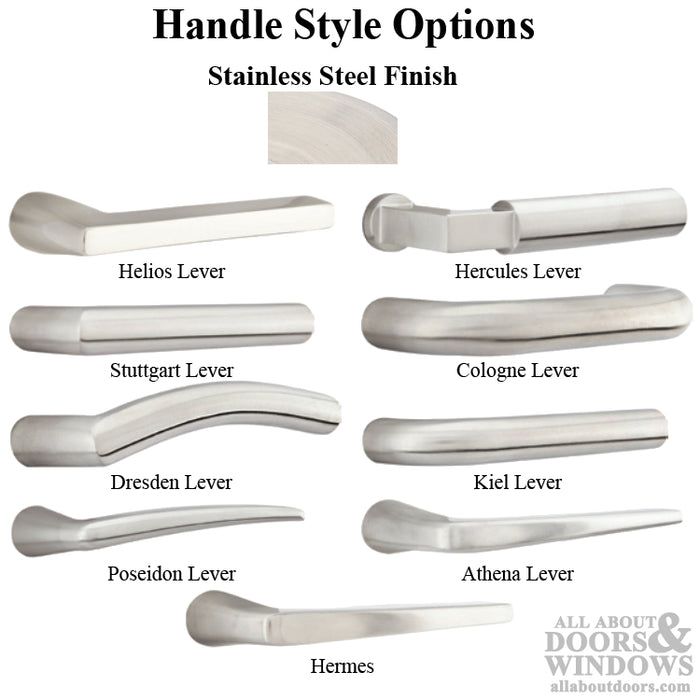

Multiple configuration options are available to match your specific door setup. Choose from five function types: Active (keyed American cylinder with inside thumb turn), Passage (non-keyed, no thumb turn), Inactive (non-keyed with inside thumb turn), Dummy Passage/Half Passage (fixed handle outside, passage inside, no thumb turn), or Dummy Pair (both fixed rigid handles, no thumb turn). Eight different handle/lever designs are available through the drop-down menu. Select your handing based on hinge location when viewed from outside – Left Hinge (LH) or Right Hinge (RH).

Technical Information

  • Handle PZ: 3-5/8 inches (92mm)
  • Escutcheon Plate Height: 11 inches (279.4mm)
  • Escutcheon Plate Width: 1.5 inches (38.1mm)
  • Screw Hole Center: 7-9/16 inches (192.1mm)
  • Escutcheon Style: Modern
  • Escutcheon Shape: Square Ends
  • Cylinder Version: American
  • Keyway: Schlage 5 Pin SC1
  • Key/Thumb Turn Position: Above Handle
  • Material: Stainless Steel

Notes

  • Special order item – cannot be returned or exchanged
  • Some handle sets may take 6 to 8 weeks for delivery
  • If your door has a different screw hole pattern, a new pattern may work by drilling new screw holes – ensure the lock body will not be in the direct line of screws
  • Carefully check your measurements before ordering to reduce chances of error

Replaces / Replaced by

  • American version multipoint lock hardware for BiltBest doors
  • American version multipoint lock hardware for G-U doors
  • American version multipoint lock hardware for Hurd (Energy Saver) doors

Priced and sold as a package.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What does PZ mean on a multipoint lock handleset?

PZ refers to the distance from the center of the handle to the center of the cylinder (keyhole). This handleset has a PZ of 3-5/8 inches (92mm).

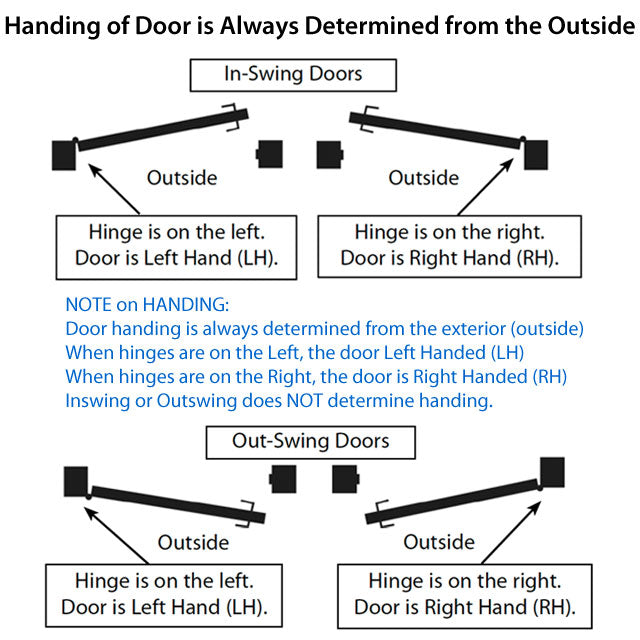

How do I determine the correct handing for my door?

Stand outside your door and look at where the hinges are located. If the hinges are on the left side, select Left Hinge (LH). If the hinges are on the right side, select Right Hinge (RH).

Can I use this handleset if my screw hole pattern is different?

Yes, you may be able to drill new screw holes to accommodate this handleset. Just make sure the lock body inside the door will not be in the direct path of the new screws.
