Multipoint Lock Handleset Trim – 92mm PZ, Stainless Steel

Multipoint Lock Handleset Trim – 92mm PZ, Stainless Steel

SKU:

$376.88 - $376.88
$376.88
$376.88 - $376.88
$376.88
  • PZ: 3-5/8" (92mm)
  • Escutcheon Plate Height: 10" (254mm)
  • Escutcheon Plate Width: 2" (50.8mm)
  • Screw Hole Center: 7-9/16" (192.1mm)
  • Escutcheon Style: Modern with square ends
  • Cylinder: American (Schlage 5-pin SC1 keyway)
  • Key/Thumb Turn Position: Below handle
  • Material: Stainless steel
  • Functions Available: Active (keyed), Passage, Inactive, Dummy Passage, Dummy Pair
  • Multiple lever designs available
  • Available in left-hand or right-hand configurations
  • Special order item – cannot be returned or exchanged
  • Priced and sold as a package
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Not sure this is the right part?
Before you order, if you'd like confidence this is the right part for your job, please call us at (816) 221-6543 .
*We have a fully-staffed customer support team happy to help!

Multipoint Lock Handleset Trim – 92mm PZ, Stainless Steel (921132000)

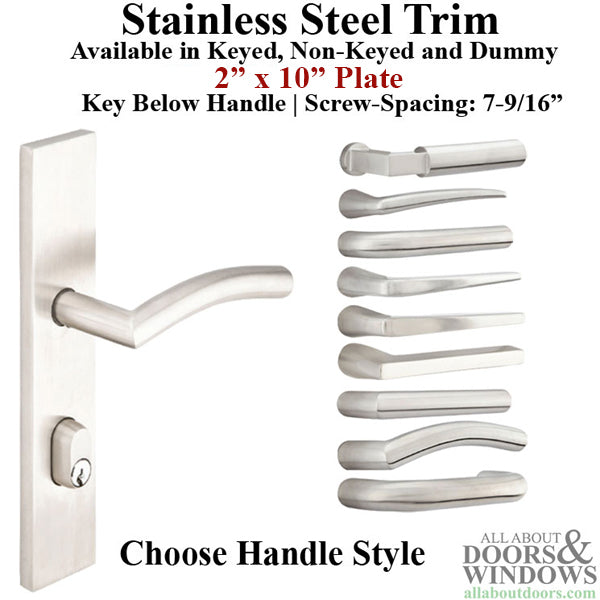

This replacement multipoint lock handleset trim features a modern escutcheon plate design with square ends, crafted from durable stainless steel. Designed to replace American cylinder version multipoint lock hardware on doors from Atrium, G-U, KML by Andersen, Marvin Integrity, Paddock Lockmaster, and Superior.

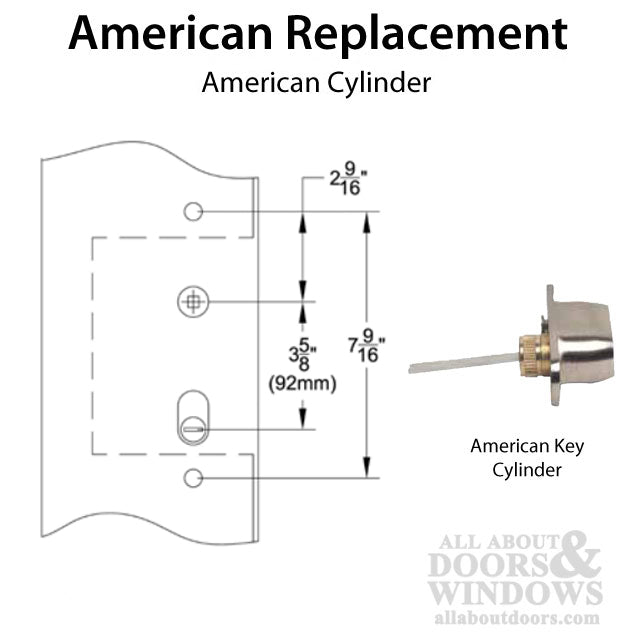

The escutcheon plate measures 10 inches tall by 2 inches wide, with a screw hole center distance of 7-9/16 inches. The handle PZ (distance from handle center to cylinder center) is 3-5/8 inches (92mm), and the key or thumb turn is positioned below the handle.

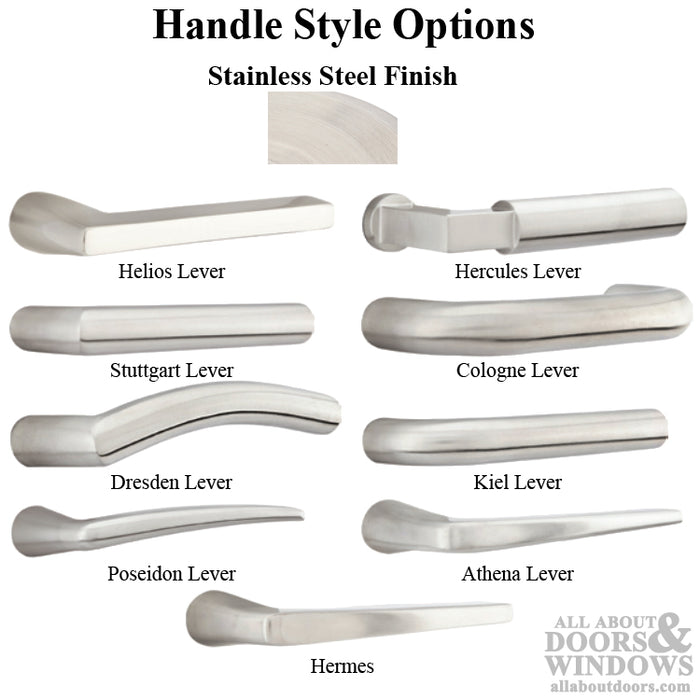

This handleset uses an American cylinder with a Schlage 5-pin SC1 keyway. Multiple function options are available to suit your door configuration, including active (keyed with thumb turn), passage (non-keyed), inactive (non-keyed with thumb turn), dummy passage, and dummy pair configurations. Eight different lever designs are available, and you can select left-hand or right-hand handing based on your hinge location when viewed from outside.

Technical Information

  • PZ (Handle to Cylinder Center): 3-5/8 inches (92mm)
  • Escutcheon Plate Height: 10 inches (254mm)
  • Escutcheon Plate Width: 2 inches (50.8mm)
  • Screw Hole Center: 7-9/16 inches (192.1mm)
  • Cylinder Type: American
  • Keyway: Schlage 5-pin SC1
  • Key/Thumb Turn Position: Below handle
  • Material: Stainless steel
  • Escutcheon Style: Modern with square ends

Notes

  • If your door has a different screw hole pattern, a new pattern may work by drilling new screw holes – ensure the lock body will not be in the direct line of screws
  • Special order item – cannot be returned or exchanged
  • Delivery may take 6 to 8 weeks
  • Carefully verify all measurements before ordering

Replaces / Replaced by

  • American version multipoint lock hardware for: Atrium, G-U, KML by Andersen, Marvin Integrity, Paddock Lockmaster, Superior

Priced and sold as a package.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What does PZ mean on a multipoint lock handleset?

PZ refers to the distance from the center of the handle to the center of the cylinder (keyhole). This handleset has a 92mm PZ measurement.

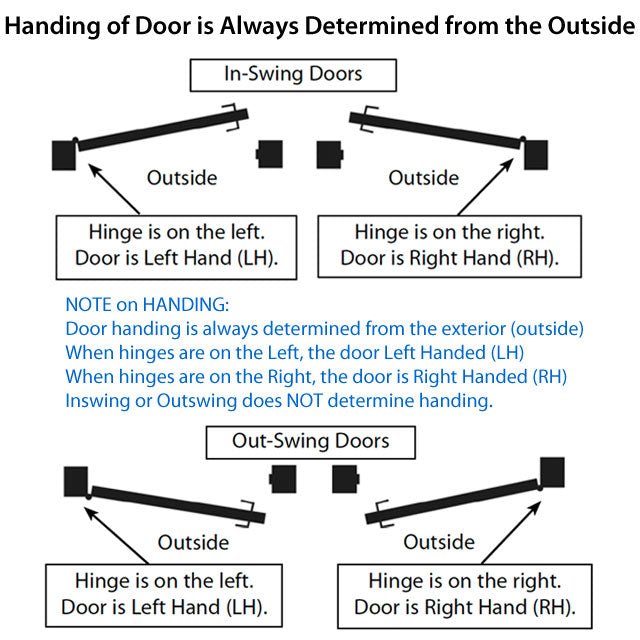

How do I determine the correct handing for my door?

View your door from the outside and note which side the hinges are on. If hinges are on the left, select Left Hinge (LH). If hinges are on the right, select Right Hinge (RH).

Can I install this if my screw hole pattern is different?

Yes, you may be able to drill new screw holes to accommodate this handleset. Just ensure the lock body inside the door will not be in the direct path of the new screws.
