Multipoint Lock Handleset Trim – 92mm PZ, Stainless Steel

Multipoint Lock Handleset Trim – 92mm PZ, Stainless Steel

SKU:

$376.88 - $376.88
$376.88
$376.88 - $376.88
$376.88
  • PZ: 3-5/8" (92mm)
  • Escutcheon Plate Height: 11" (279.4mm)
  • Escutcheon Plate Width: 1.5" (38.1mm)
  • Screw Hole Center: 7-9/16" (192.1mm)
  • Key/Thumb Turn Position: Below Handle
  • Cylinder: American (Schlage 5 Pin SC1)
  • Escutcheon Style: Modern with Square Ends
  • Material: Stainless Steel
  • Multiple function options available: Active (keyed), Passage, Inactive, Dummy Passage, Dummy Pair

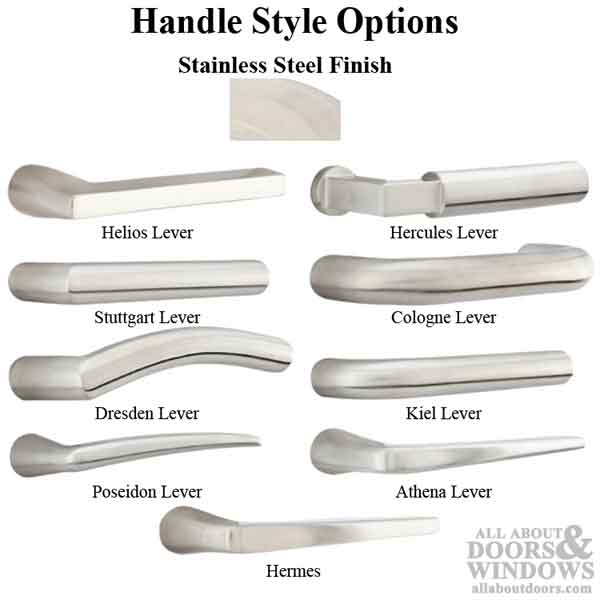

  • 8 handle/lever design options available
  • Available in Left Hinge (LH) or Right Hinge (RH)
  • Special order item – cannot be returned or exchanged
  • Priced and sold as a package
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Not sure this is the right part?
Before you order, if you'd like confidence this is the right part for your job, please call us at (816) 221-6543 .
*We have a fully-staffed customer support team happy to help!

Multipoint Lock Handleset Trim – 92mm PZ, Stainless Steel (921131000)

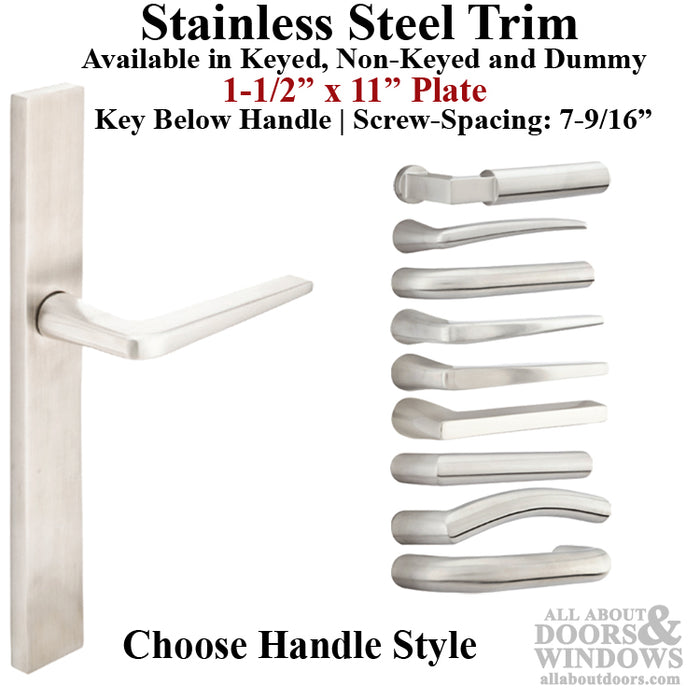

This replacement multipoint lock handleset trim features a modern escutcheon plate design with square ends, crafted from durable stainless steel. Designed to replace American cylinder multipoint lock hardware on doors from Atrium, G-U, KML by Andersen, Marvin Integrity, Paddock Lockmaster, and Superior.

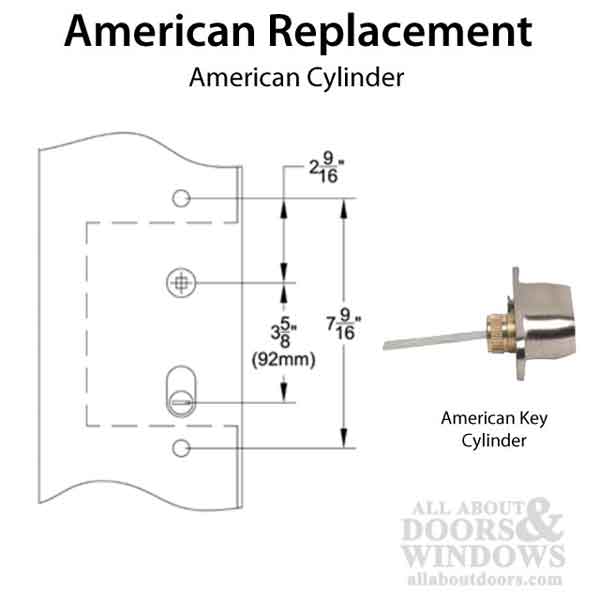

The escutcheon plate measures 11 inches (279.4mm) in height and 1.5 inches (38.1mm) in width, with a screw hole center of 7-9/16 inches (192.1mm). The handle PZ (center of handle to center of cylinder) is 3-5/8 inches (92mm), and the key/thumb turn is positioned below the handle.

This handleset uses an American cylinder with Schlage 5 Pin SC1 keyway. Multiple configuration options are available to match your door setup.

Technical Information

  • PZ: 3-5/8 inches (92mm)
  • Escutcheon Plate Height: 11 inches (279.4mm)
  • Escutcheon Plate Width: 1.5 inches (38.1mm)
  • Screw Hole Center: 7-9/16 inches (192.1mm)
  • Escutcheon Style: Modern with Square Ends
  • Material: Stainless Steel
  • Cylinder Type: American
  • Keyway: Schlage 5 Pin SC1
  • Key/Thumb Turn Position: Below Handle

Configuration Options

  • Function: Active (Keyed with Thumb Turn), Passage (Non-keyed, No Thumb Turn), Inactive (Non-keyed with Thumb Turn), Dummy Passage/Half Passage, Dummy Pair
  • Handle/Lever Design: 8 options available
  • Handing: Left Hinge (LH) or Right Hinge (RH) – viewed from outside, based on hinge location

Notes

  • Special order item – cannot be returned or exchanged
  • Some handlesets may take 6 to 8 weeks for delivery
  • If your door has a different screw hole pattern, a new pattern may work by drilling new screw holes – ensure the lock body will not be in the direct line of screws

Replaces / Replaced by

  • Replaces American version multipoint lock hardware for: Atrium, G-U, KML by Andersen, Marvin Integrity, Paddock Lockmaster, Superior

Priced and sold as a package.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What does PZ mean on a multipoint lock handleset?

PZ refers to the distance from the center of the handle to the center of the cylinder (keyhole). This handleset has a PZ of 3-5/8 inches (92mm).

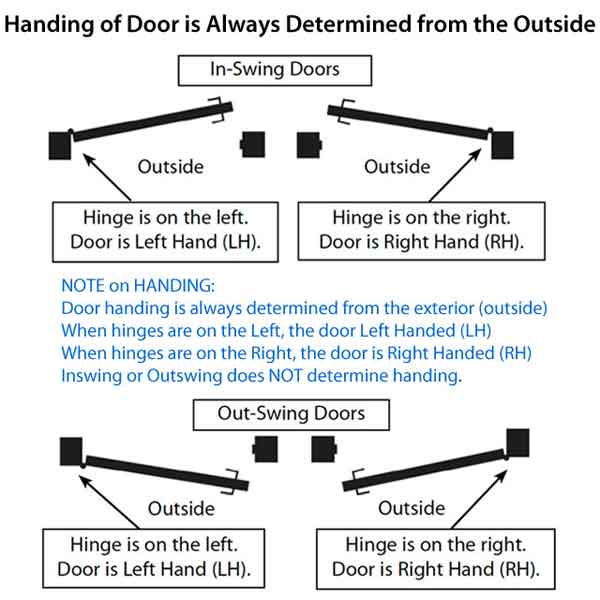

How do I determine the handing for my door?

Stand outside your door and note which side the hinges are on. If hinges are on the left, choose Left Hinge (LH). If hinges are on the right, choose Right Hinge (RH).

Can I install this if my door has a different screw hole pattern?

Yes, you may be able to drill new screw holes to accommodate this handleset. Just ensure the lock body inside the door will not be in the direct path of the new screws.
