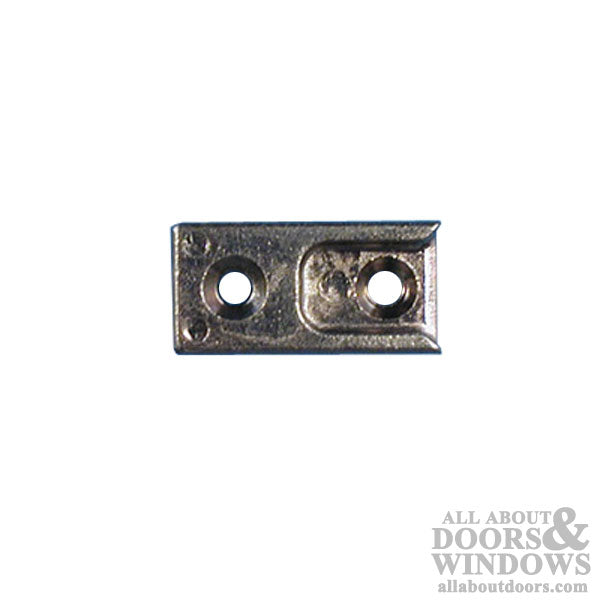

GU Lock Plate for Roller Version Multipoint Lock – 7/16" Base

GU Lock Plate for Roller Version Multipoint Lock – 7/16" Base

SKU: 9-30146-01-0-FG

$4.16 - $4.16
$4.16
$4.16 - $4.16
$4.16
  • Material: Die Cast
  • Overall Width: 5/8" (17mm)
  • Bottom Base Width: 15/32" (12mm)
  • Overall Length: 1-3/8" (36mm)
  • Overall Base Thickness: 7/16" (11mm)
  • Top Base Thickness: 5/16" (8mm)
  • Bottom Base Thickness: 1/8" (3mm)
  • For use with GU roller version multipoint locks
  • Note: Many lock plates look similar – verify thickness measurements carefully
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Not sure this is the right part?
Before you order, if you'd like confidence this is the right part for your job, please call us at (816) 221-6543 .
*We have a fully-staffed customer support team happy to help!

GU Lock Plate – Roller Version (9-30146-01-0-FG)

This GU lock plate is designed for use with roller version multipoint locks. Made from durable die cast material, this component provides reliable engagement for your multipoint locking system.

Many lock plates appear similar at first glance, so it's important to verify the specific thickness measurements before ordering. This particular plate features a 7/16 inch (11mm) overall base thickness, distinguishing it from other similar-looking plates.

Technical Information

  • Material: Die Cast
  • Overall Width: 5/8 inch (17mm)
  • Bottom Base Width: 15/32 inch (12mm)
  • Overall Length: 1-3/8 inch (36mm)
  • Overall Base Thickness: 7/16 inch (11mm)
  • Top Base Thickness: 5/16 inch (8mm)
  • Bottom Base Thickness: 1/8 inch (3mm)
  • Original Manufacturer SKU: 9-30146-01-0-FG

Notes

  • This plate has a 7/16 inch thick base (similar to part 40352)
  • Part 40351 has a thicker 1/2 inch base – verify your requirements

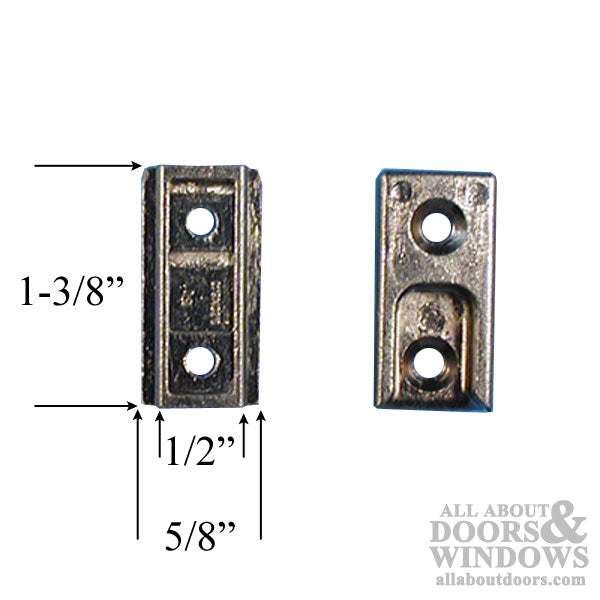

  • Refer to line drawings for detailed dimensional comparison

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

How do I know which GU lock plate I need?

Measure the base thickness of your existing lock plate carefully. This plate has a 7/16 inch (11mm) overall base thickness. Compare with line drawings as many plates look similar but have slight thickness differences.

What is the difference between this plate and part 40351?

Part 40351 has a thicker 1/2 inch base, while this plate (similar to 40352) has a thinner 7/16 inch base. Always verify your measurements before ordering.
