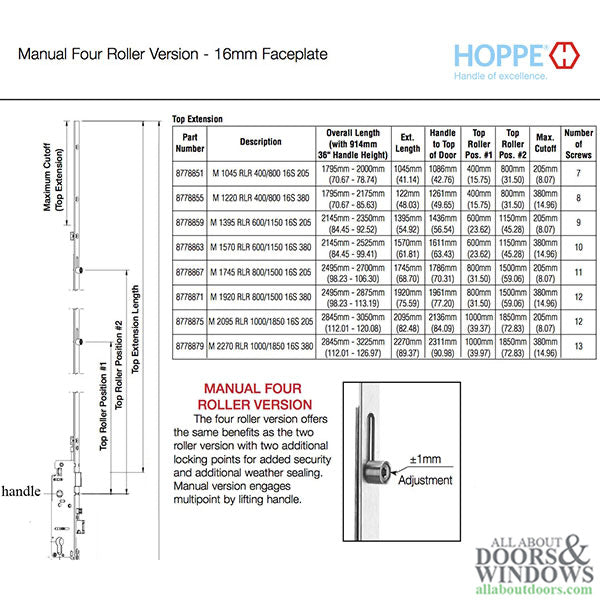

Hoppe Manual 4 Roller Top Extension – 16mm Faceplate, 54.92" Length

SKU: 8778859

$93.18 - $93.18

$93.18

$93.18 - $93.18

$93.18

Version: Manual Four Roller
Faceplate: 5/8" (16mm)
Extension Length: 54.92" (1395mm)
Top Roller #1: 23.62" (600mm)
Top Roller #2: 45.28" (1150mm)
Maximum Cutoff: 8.07" (205mm)
Overall Panel Length with 36" Handle Height: 84.45"-92.52" (2145mm-2350mm)
Number of Screws: 9

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543.

*We have a fully-staffed customer support team happy to help!

Product Details

Hoppe Manual 4 Roller Top Extension – 16mm (8778859)

This Hoppe Manual 4 Roller Top Extension features a 16mm faceplate and is designed for use with Hoppe multipoint lock systems on hinged doors. The extension measures 54.92 inches (1395mm) in length and includes four rollers positioned at strategic points for secure door engagement.

The two top rollers are located at 23.62 inches (600mm) and 45.28 inches (1150mm) from the base. This extension accommodates overall panel lengths ranging from 84.45 inches to 92.52 inches (2145mm to 2350mm) when paired with a 36-inch handle height configuration. A maximum cutoff of 8.07 inches (205mm) allows for field adjustment to fit your specific door requirements.

Technical Information

Version: Manual Four Roller
Faceplate Width: 5/8 inch (16mm)
Extension Length: 54.92 inches (1395mm)
Top Roller #1 Position: 23.62 inches (600mm)
Top Roller #2 Position: 45.28 inches (1150mm)
Maximum Cutoff: 8.07 inches (205mm)
Overall Panel Length (36" HH): 84.45 inches - 92.52 inches (2145mm - 2350mm)
Number of Screws: 9

Notes

To ensure you select the correct multipoint lock, refer to the Multipoint Lock Glossary of Terms
If unsure whether your lock can be replaced, complete the Hoppe Hinged Door Multipoint Lock Worksheet and send it to us for assistance

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

How do I connect this top extension to my Hoppe lockbox?

Hoppe provides instructional videos on connecting top extensions to the lockbox. The extension slides into the lock body and is secured with the included screws.

Can I cut this extension to fit my door?

Yes, this extension allows for a maximum cutoff of 8.07 inches (205mm) to accommodate your specific door height requirements.

What door panel lengths does this extension support?

When paired with a 36-inch handle height, this extension supports overall panel lengths from 84.45 inches to 92.52 inches (2145mm to 2350mm).
