Hoppe HLS9000 Bottom Gear – 35mm Backset, 36" Handle Height

Hoppe HLS9000 Bottom Gear – 35mm Backset, 36" Handle Height

SKU: 8778335

$170.43 - $170.43
$170.43
$170.43 - $170.43
$170.43
  • Backset: 1-3/8" (35mm)
  • PZ: Not specified in product data
  • Faceplate Width: 5/8" (16mm)
  • Deadbolt Throw: 1" (25mm)
  • Handle Height: 36"
  • Type: Bottom Gear for HLS9000 Shootbolt Version
  • Manual locking for active door
  • For 35" handle height, see part 2760783
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Not sure this is the right part?
Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543.
*We have a fully-staffed customer support team happy to help!

Hoppe HLS9000 Bottom Gear – 35mm Backset, 36" Handle (8778335)

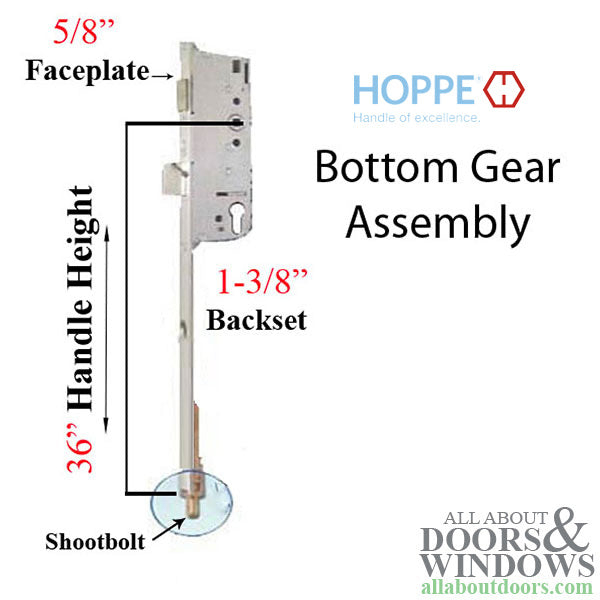

This Hoppe Bottom Gear is designed for the HLS9000 Shootbolt Version multipoint lock system. It provides manual locking functionality for the active door panel and is an essential component for maintaining proper door security and operation.

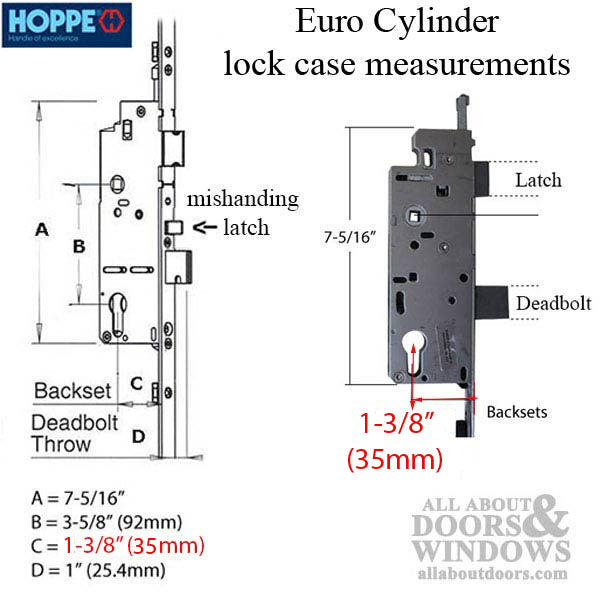

The bottom gear features a 1-3/8 inch (35mm) backset with a 5/8 inch (16mm) faceplate width. The deadbolt throw measures 1 inch (25mm), providing solid engagement with the door frame strike.

Technical Information

  • Backset: 1-3/8 inches (35mm)
  • Faceplate Width: 5/8 inch (16mm)
  • Deadbolt Throw: 1 inch (25mm)
  • Handle Height: 36 inches
  • Lock System: HLS9000 Shootbolt Version
  • Function: Manual Locking for Active Door

Notes

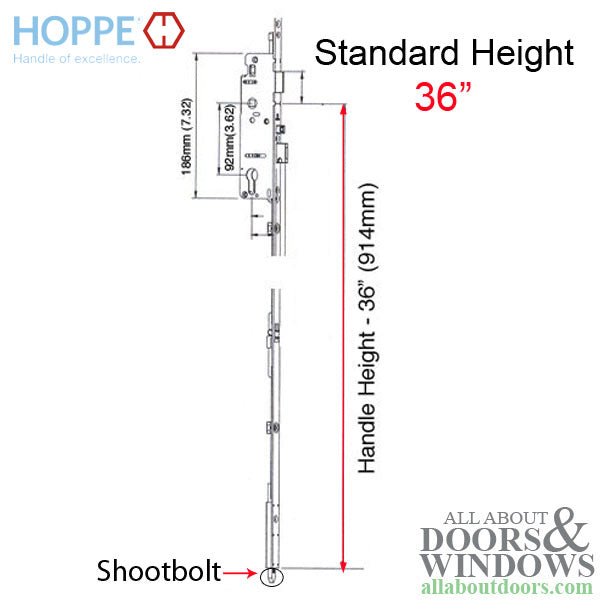

  • This bottom gear is specifically for the 36 inch handle height configuration
  • For 35 inch handle height applications, use part number 2760783

Related Parts

  • 2760783 - Hoppe HLS9000 Bottom Gear for 35" Handle Height

Priced and sold each.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What is the difference between this bottom gear and part 2760783?

This bottom gear (8778335) is designed for 36 inch handle height configurations, while part 2760783 is for 35 inch handle height applications.

What lock system is this bottom gear compatible with?

This bottom gear is designed specifically for the Hoppe HLS9000 Shootbolt Version multipoint lock system.

Is this for the active or inactive door panel?

This bottom gear provides manual locking functionality for the active door panel.
