Hoppe Multipoint Lower Extension with Tongue – 45mm Backset, 92mm PZ, 36" Handle Height, 26.42" Tongue

Hoppe Multipoint Lower Extension with Tongue – 45mm Backset, 92mm PZ, 36" Handle Height, 26.42" Tongue

SKU 8778075

$131.13 - $131.13
$131.13
$131.13 - $131.13
$131.13

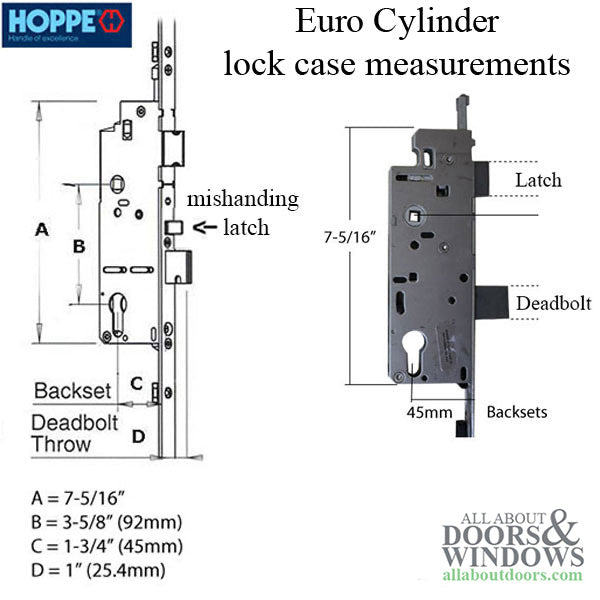

  • PZ: 92mm (center of handle to center of cylinder)
  • Backset: 45mm (1-3/4")
  • Faceplate Width: 16mm (5/8") Stainless Steel
  • Deadbolt Throw: 1" (25.4mm)
  • Handle Height: 36" (914mm)

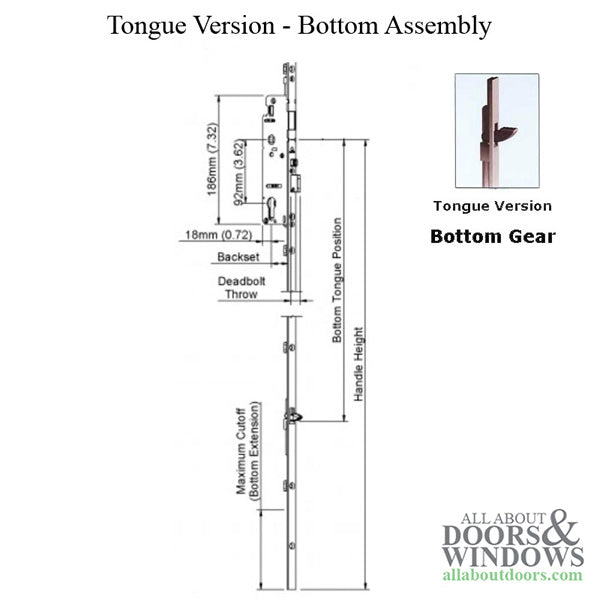

  • Bottom Tongue Position: 26.42" (671mm)
  • Maximum Cutoff: 4.53" (115mm)
  • Function: Manual locking – lift handle to lock tongue

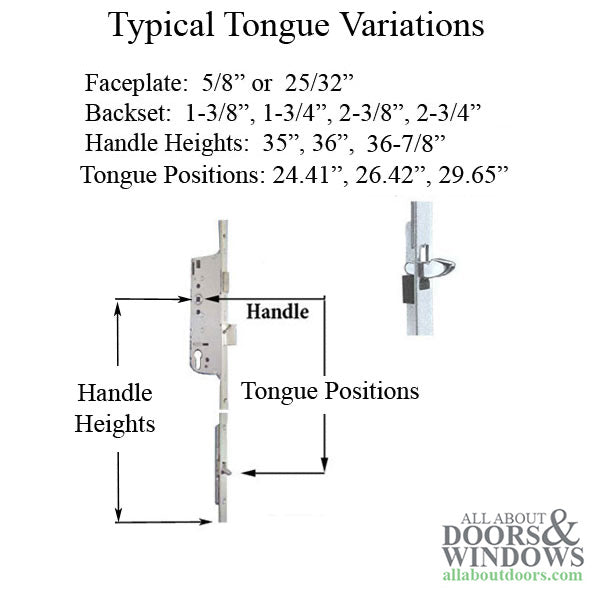

  • Version: Tongue – horizontal locking device between handle and bottom of door
  • Bottom assembly only – does not include additional extensions or other components
  • Sold individually
Visa Mastercard American Express Discover
Estimated Delivery
Between December 11 and December 15
*Delivery dates are estimates and may vary based on availability and shipping method

Hoppe 16mm Manual Multipoint Gear – 45/92, 36" HH (8778075)

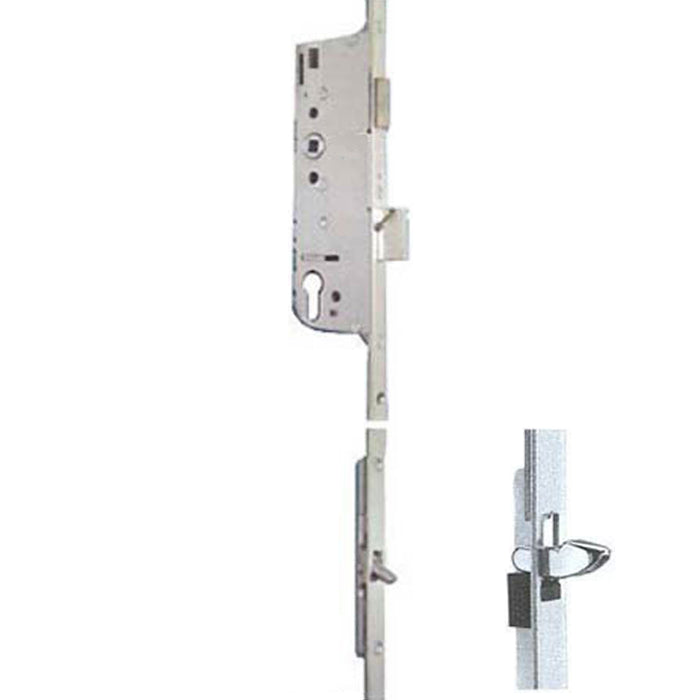

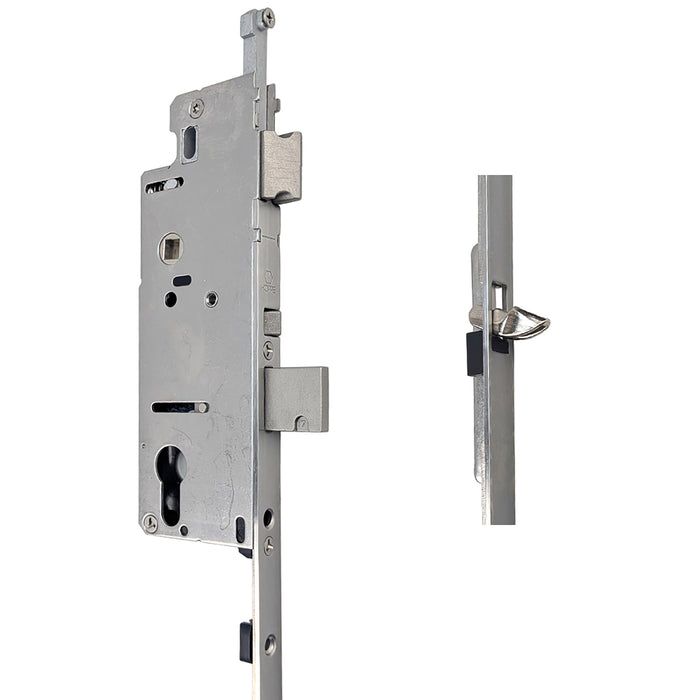

This Hoppe multipoint lock lower extension with tongue is designed for active doors in multipoint lock systems. The gear features manual locking operation – simply lift the handle to engage the tongue, providing secure horizontal locking between the handle and the bottom of the door.

Built with a durable stainless steel faceplate measuring 16mm (5/8 inches) wide, this extension offers reliable performance for residential and commercial applications. The 45mm backset and 92mm PZ spacing ensure compatibility with standard Hoppe multipoint configurations.

Technical Information

  • Model: HLS9000 MP Manual Gear, 90033 Manual Tongue Version
  • PZ (Handle to Cylinder Center): 92mm
  • Backset: 45mm (1-3/4 inches)
  • Faceplate Width: 16mm (5/8 inches) Stainless Steel
  • Deadbolt Throw: 1 inch (25.4mm)
  • Handle Height: 36 inches (914mm)
  • Bottom Tongue Position: 26.42 inches (671mm)
  • Maximum Cutoff: 4.53 inches (115mm)
  • Function: Manual Locking
  • Version: Tongue (horizontal locking device)

Notes

  • Bottom assembly only – does not include additional extensions or other components
  • For active door applications

Priced and sold each.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

How does the manual locking function work on this gear?

Simply lift the door handle to engage the tongue, which provides horizontal locking between the handle and the bottom of the door.

What additional parts do I need for a complete multipoint lock system?

This is the bottom assembly only. You will need additional extensions and a lock body to complete your multipoint lock system. Contact us for help identifying the correct components.

What does 92mm PZ mean?

PZ refers to the distance from the center of the handle spindle to the center of the cylinder (key hole), measured at 92mm on this lock.
