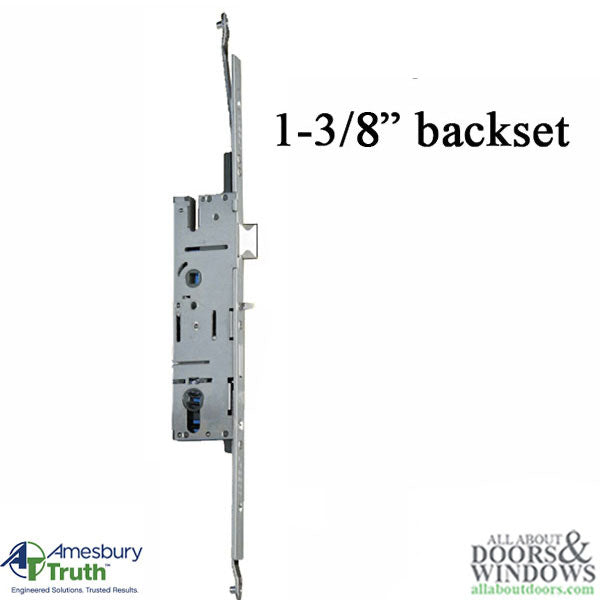

Multipoint Lock Gearbox – 92mm PZ, Stainless Steel

Multipoint Lock Gearbox – 92mm PZ, Stainless Steel

SKU: 80352292

$125.81 - $125.81
$125.81
$125.81 - $125.81
$125.81

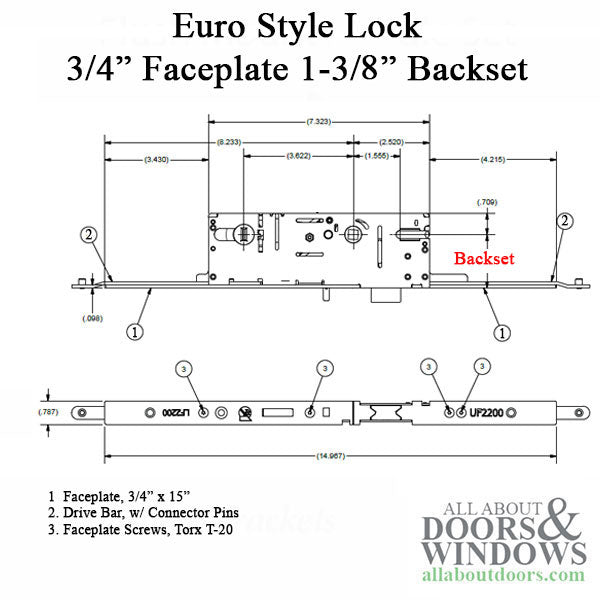

  • Backset: 35mm, 45mm, or 60mm options available
  • PZ: 92mm handle hole spacing
  • Material: Stainless steel gearbox, face bar/drive bar, and shoot bolt
  • Cylinder Compatibility: American style (easy re-keying) or Euro style cylinder
  • Operation: All locking points engaged by lifting the handle
  • Latch: Non-handed pull and twist latch bolt reverses easily with lock installed
  • Door Compatibility: Aluminum, Composite, Vinyl, and Wood products
  • Note: Extensions for upper/lower locking points NOT included – provided by door manufacturer
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Not sure this is the right part?
Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .
*We have a fully-staffed customer support team happy to help!

Multipoint Lock Gearbox – 92mm PZ (80352292)

This commercial-grade multipoint lock gearbox provides reliable security for entry doors. The system uses a single point P2000 lock box and cover plate, with all locking points engaged simply by lifting the handle. Available in 35mm, 45mm, and 60mm backset configurations to accommodate various door profiles.

The gearbox accepts handle sets with 92mm hole spacing (PZ) and is compatible with both American style cylinders for easy re-keying and Euro style cylinders. The non-handed pull and twist latch bolt can be reversed easily even with the lock already installed, making installation and adjustment straightforward.

Constructed with stainless steel components including the gearbox, face bar/drive bar, and shoot bolt for long-lasting durability and corrosion resistance. This lock is suitable for use on Aluminum, Composite, Vinyl, and Wood door products.

Technical Information

  • Backset Options: 35mm, 45mm, or 60mm
  • PZ (Handle Hole Spacing): 92mm
  • Cylinder Type: American or Euro style
  • Material: Stainless steel (gearbox, face bar/drive bar, shoot bolt)
  • Door Materials: Aluminum, Composite, Vinyl, Wood

Notes

  • This lock does NOT include extensions for upper or lower locking points
  • Extensions are normally provided by the door manufacturer to meet their specifications

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

Does this multipoint lock come with extensions?

No, this lock does not include extensions for upper or lower locking points. Extensions are typically provided by the door manufacturer to meet their specific requirements.

Can I use an American cylinder with this lock?

Yes, this lock accepts both American style cylinders for easy re-keying and Euro style cylinders.

Can the latch be reversed for different door configurations?

Yes, the non-handed pull and twist latch bolt can be easily reversed even with the lock already installed.
