Rockwell Sentinel Multipoint Lock for 8-0 Doors – 60mm Backset, Tongue Version

SKU: 73228780

$282.19 - $282.19

$282.19

$282.19 - $282.19

$282.19

Door Panel Size: 8-0 (96")
Backset: 2-3/8" (60mm)
Hole Centers: 5-1/2" (140mm) – center of deadbolt to center of handle
Faceplate Width: 3/4" (20mm)
Faceplate Material: Steel, painted silver
Overall Lock Length: 79-1/2" (2019mm)
Upper Tongue Position: 46" (1168mm)
Lower Tongue Position: 22" (559mm)
Deadbolt Throw: 1" (25mm)
Spring Latch Throw: 1/2" (13mm), 45-degree turn
Spindle Hub: 1/4" (6mm) square

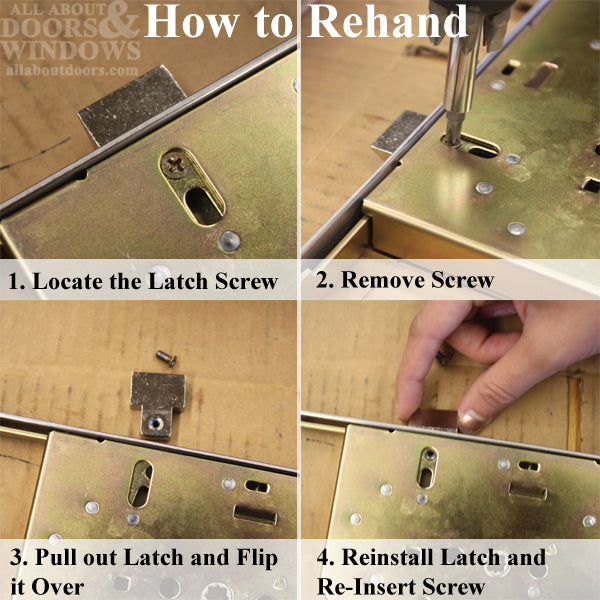

Handing: Reversible – remove latch screw to change
Locking Points: Three – center deadbolt with top and bottom tongues
Compatible with lever/lever handles and grip handlesets
Babysitter function – close door and turn key or thumbturn to engage all locking points without lifting handle

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .

*We have a fully-staffed customer support team happy to help!

Product Details

Rockwell Sentinel Multipoint Lock – 8-0 Door, Tongue Version (73228780)

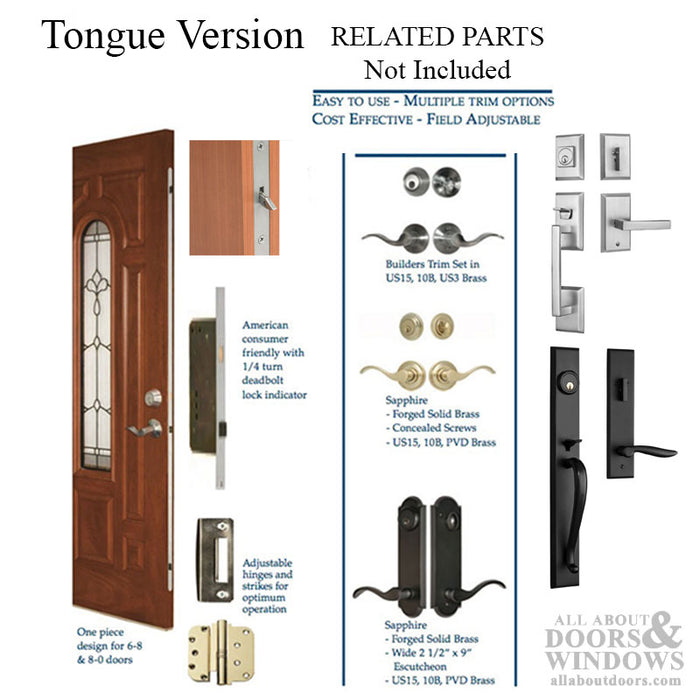

The Rockwell Sentinel Tongue (ST) Version Multipoint Lock is designed for American entry doors measuring 8 feet (96 inches) in height. This three-point locking system features a center deadbolt with top and bottom tongues, providing enhanced security for residential and commercial applications.

This lock is commonly used on Peachtree 600 Series doors, Bilt Best doors, and other wood, steel, and fiberglass entry doors with Euro groove faceplate applications. The tongue version is compatible with both lever/lever handles and grip handlesets, offering flexibility in hardware selection.

The lock features a convenient babysitter-type locking function. Simply close the door and turn the key or thumbturn to engage all three locking points – there is no need to lift the handle to lock the door. The handing is reversible by removing the latch screw, making installation straightforward for both left-hand and right-hand door configurations.

Technical Information

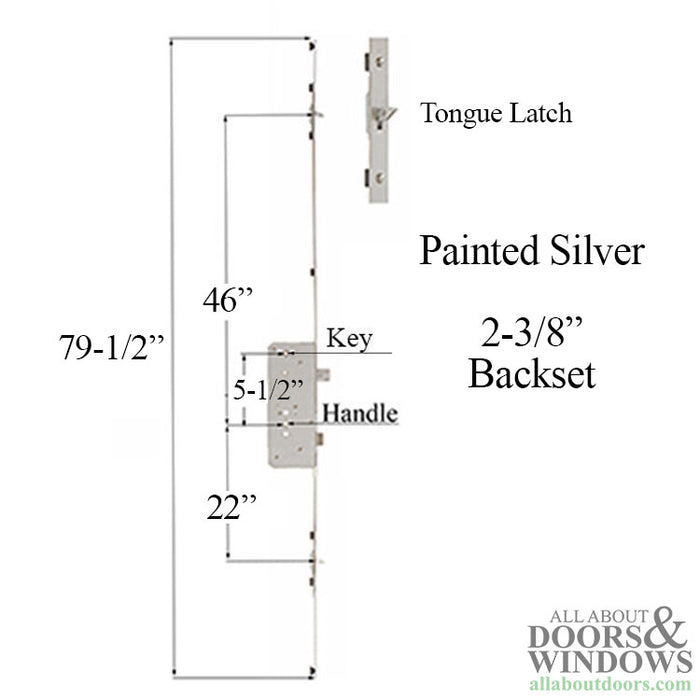

Door Panel Size: 8-0 (96 inches)
Overall Lock Length: 79-1/2 inches (2019mm)
Upper Tongue Position: 46 inches (1168mm)
Lower Tongue Position: 22 inches (559mm)

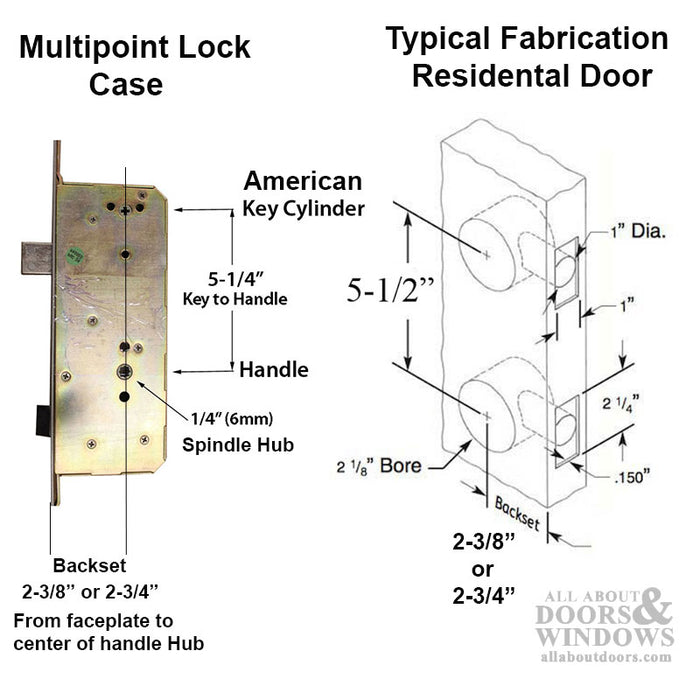

Backset: 2-3/8 inches (60mm)
Hole Centers: 5-1/2 inches (140mm)
Faceplate Width: 3/4 inches (20mm)
Faceplate Material: Steel, painted silver
Deadbolt Throw: 1 inch (25mm)
Spring Latch Throw: 1/2 inch (13mm), 45-degree turn
Spindle Hub: 1/4 inch (6mm) square
Handing: Reversible

Notes

Also available for 6-8 doors
Available with painted steel or stainless steel faceplates
The tongue version works with lever/lever handles and grip handlesets
The triple latch version (different product) only works with lever/lever handles and will not work with grip/teacup handlesets
Installation instructions PDF

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What is the difference between the tongue version and triple latch version?

The tongue version works with both lever/lever handles and grip handlesets, while the triple latch version only works with lever/lever handles and is not compatible with grip or teacup handlesets.

Do I need to lift the handle to lock this door?

No, this lock features a babysitter-type function. Simply close the door and turn the key or thumbturn to engage all three locking points without lifting the handle.

Can this lock be used on left-hand and right-hand doors?

Yes, the handing is reversible. Remove the latch screw to change the handing for your door configuration.
