Rockwell Sentinel Multipoint Lock for 8' Doors – 60mm Backset, 133mm PZ, Tongue Version

SKU: 73118880

$295.00 - $295.00

$295.00

$295.00 - $295.00

$295.00

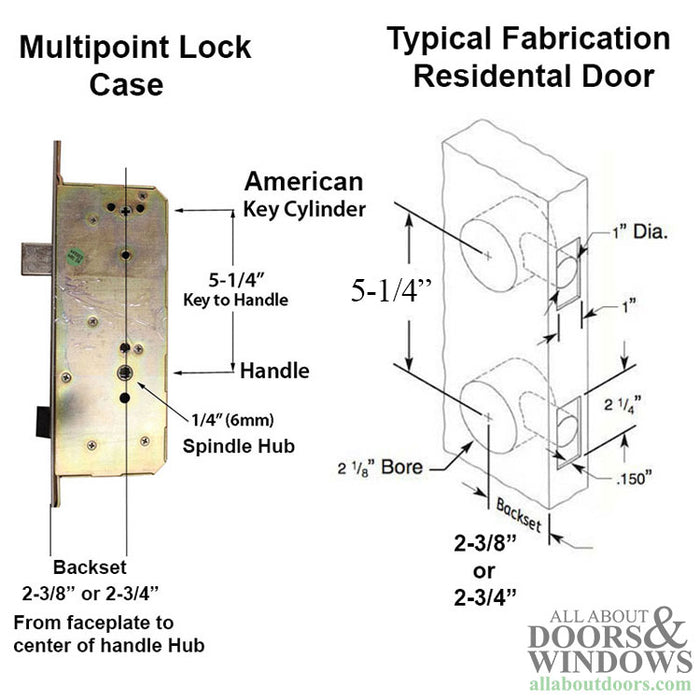

PZ (Hole Centers): 5-1/4" (133.4mm) – center of deadbolt to center of handle
Backset: 2-3/8" (60.3mm)
Faceplate Width: 3/4" (20mm) – Eurogroove application
Faceplate Material: Stainless Steel
Door Panel Size: 8-0 (8 foot doors)

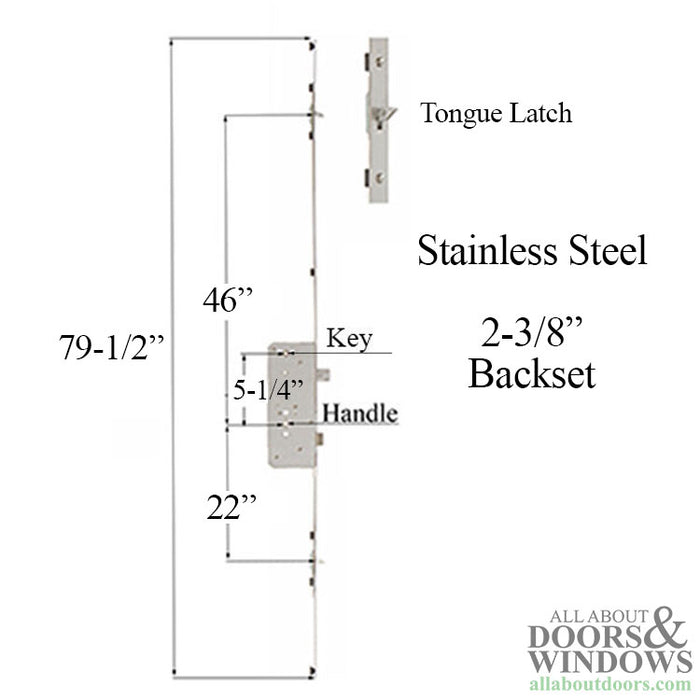

Overall Lock Length: 79-1/2" (2019.3mm)
Upper Tongue Position: 46" (1168.4mm)
Lower Tongue Position: 22" (558.8mm)
Deadbolt Throw: 1" (25.4mm)
Spring Latch Throw: 1/2" (12.7mm), 45 degree turn
Spindle Hub: Square 1/4" (6mm)
Locking Points: Three (3) – center deadbolt, top and bottom tongue

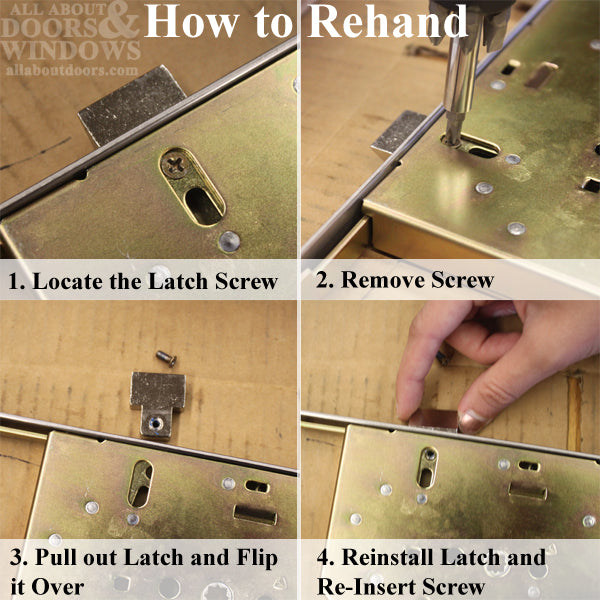

Handing: Reversible – remove latch screw to reverse
Function: Babysitter type – close door and turn key or thumb turn to engage all locking points without lifting handle

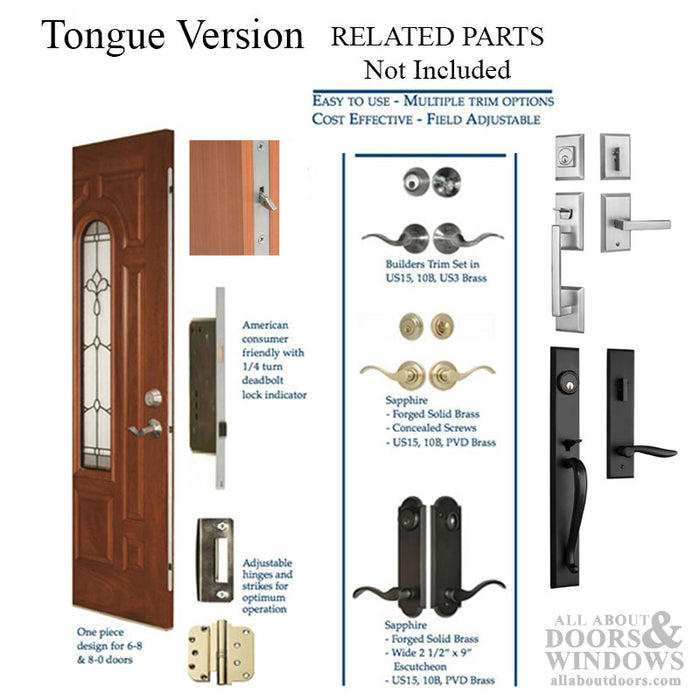

Compatible with lever/lever handles and grip handlesets

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .

*We have a fully-staffed customer support team happy to help!

Product Details

Rockwell Sentinel Multipoint Lock – 8-0 Door, ST Version (73118880)

The Rockwell Sentinel Tongue (ST) Version Multipoint Lock is designed for American entry doors measuring 8 feet tall. This three-point locking system features a center deadbolt with top and bottom tongues, providing enhanced security for residential applications.

This lock is compatible with Peachtree 600 Series doors, Bilt Best doors, and other wood, steel, and fiberglass entry doors. The tongue version works with both lever/lever handles and grip handlesets, offering flexibility in hardware selection.

The babysitter-type locking function allows you to simply close the door and turn the key or thumb turn to engage all three locking points simultaneously. There is no need to lift the handle to lock the door, making it convenient for everyday use.

Technical Information

Overall Lock Length: 79-1/2 inches (2019.3mm)
Upper Tongue Position: 46 inches (1168.4mm)
Lower Tongue Position: 22 inches (558.8mm)
Backset: 2-3/8 inches (60.3mm)
PZ (Hole Centers): 5-1/4 inches (133.4mm)
Faceplate Width: 3/4 inch (20mm) – Eurogroove application
Faceplate Material: Stainless Steel
Deadbolt Throw: 1 inch (25.4mm)
Spring Latch Throw: 1/2 inch (12.7mm), 45 degree turn
Spindle Hub: Square 1/4 inch (6mm)
Locking Points: 3 (center deadbolt, top tongue, bottom tongue)
Handing: Reversible

Notes

Also available for 6-8 doors
Available with painted steel or stainless steel faceplates
The tongue version works with lever/lever handles and grip handlesets
The triple latch version (different product) only works with lever/lever handles and will not work with grip/teacup handle sets
Installation instructions PDF

Priced and sold each.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What is the difference between the tongue version and triple latch version?

The tongue (ST) version works with both lever/lever handles and grip handlesets. The triple latch version only works with lever/lever handles and is not compatible with grip or teacup handle sets.

Do I need to lift the handle to lock this door?

No, this lock features a babysitter-type function. Simply close the door and turn the key or thumb turn to engage all three locking points without lifting the handle.

Can this lock be used on left-hand and right-hand doors?

Yes, the handing is reversible. Remove the latch screw to reverse the latch direction for your door swing.
