GU Inactive Multipoint Lock Shootbolt Assembly – 35mm Backset, 92mm PZ, Silver Ferguard

GU Inactive Multipoint Lock Shootbolt Assembly – 35mm Backset, 92mm PZ, Silver Ferguard

SKU 6-UI638-35-0-FG

Sold out
$194.65 - $194.65
$194.65
$194.65 - $194.65
$194.65
  • PZ: 3-5/8" (92mm)
  • Backset: 1-3/8" (35mm)
  • Faceplate Width: 5/8" (16mm)
  • Faceplate Finish: Silver Ferguard
  • Handle Height: Adjustable, standard 35" (889mm)
  • Length: 72.047" (1830mm)
  • Cylinder Type: American with flat tailpiece
  • Spindle Size: 5/16" (8mm)
  • Function: 2-point shootbolt lock for inactive/passive door
  • Series: Europa
  • Key Position: Below handle
  • Main assembly only – does NOT include top or bottom shootbolt extensions
  • Sold as main assembly only
Discontinued replace with 6-33638-01-0-1
Visa Mastercard American Express Discover
Estimated Delivery
Between December 13 and December 17
*Delivery dates are estimates and may vary based on availability and shipping method

GU Inactive Multipoint Shootbolt – 35/92, Ferguard (6-UI638-35-0-FG)

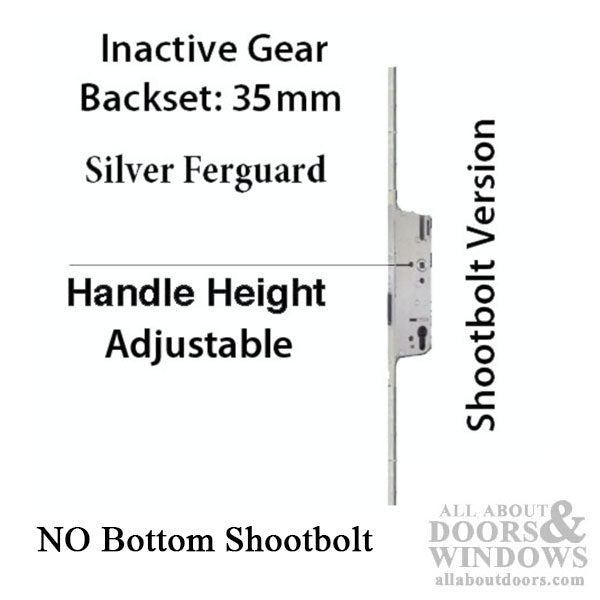

This GU inactive multipoint lock shootbolt assembly is designed for passive doors in a multipoint door system. Part of the Europa series, this 2-point lock features an adjustable handle height with a standard setting of 35 inches (889mm) and a total length of 72.047 inches (1830mm).

The lock uses an American cylinder with a flat tailpiece, positioned below the handle. With a 1-3/8 inch (35mm) backset and 3-5/8 inch (92mm) PZ measurement, this assembly is built for compatibility with standard multipoint door configurations. The 5/8 inch (16mm) faceplate features a silver Ferguard finish for durability and corrosion resistance.

This is the main assembly only and does NOT include the top or bottom shootbolt extensions, which must be purchased separately.

Technical Information

  • PZ (Handle to Cylinder): 3-5/8 inches (92mm)
  • Backset: 1-3/8 inches (35mm)
  • Faceplate Width: 5/8 inch (16mm)
  • Faceplate Finish: Silver Ferguard
  • Handle Height: Adjustable, standard 35 inches (889mm)
  • Overall Length: 72.047 inches (1830mm)
  • Cylinder Type: American with flat tailpiece
  • Spindle Size: 5/16 inch (8mm)
  • Series: Europa
  • Key Position: Below handle
  • Function: 2-point shootbolt for inactive door

Notes

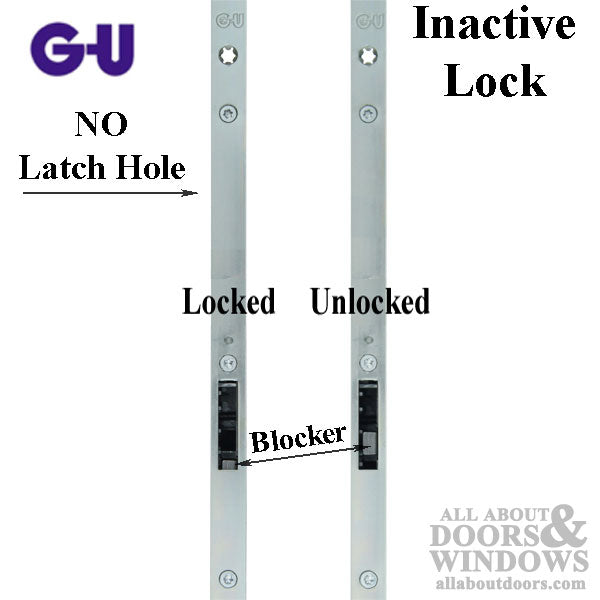

  • This lock does not have a receptacle for a spring latch and must be used with an astragal
  • Active door deadbolt enters receiving hole in face of inactive lock only when inactive handles have been lifted and shootbolts engaged
  • When handles of inactive lock are turned up and shootbolts engaged, the mechanism in the receiver hole lifts up allowing the deadbolt to fit inside
  • Unless passive door is shut and shootbolts engaged, active door cannot be locked

Related Parts

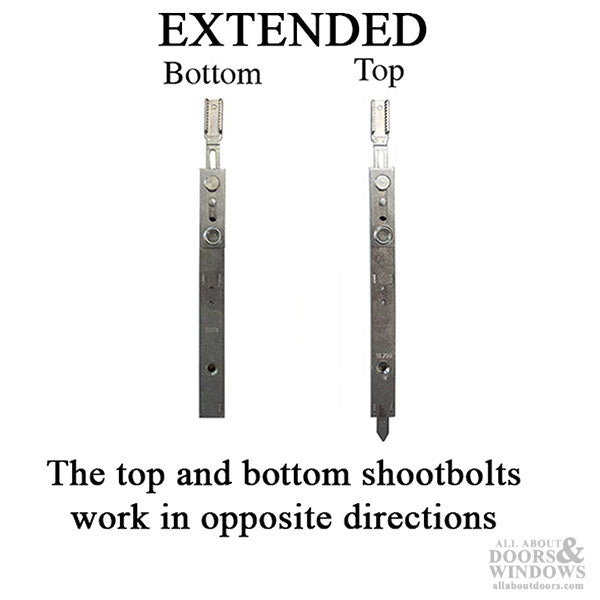

  • G-20416-00-0-1 – Top Shootbolt, Reversing Gear (Silver)
  • G-20415-00-0-1 – Bottom Shootbolt (Silver)
  • 40325 – Middle Extension, 19.685 inches (500mm) for doors over 81-1/2 inches
  • 9-34442-00-0-0 – Brass Sleeve / Shootbolt Socket Strike

Sold as main assembly only.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

Does this lock include the top and bottom shootbolts?

No, this is the main assembly only. The top shootbolt (G-20416-00-0-1) and bottom shootbolt (G-20415-00-0-1) must be purchased separately.

What cylinder type does this lock use?

This lock uses an American cylinder with a flat tailpiece, with the key positioned below the handle.

Can this lock be used without an astragal?

No, this lock does not have a receptacle for a spring latch and must be used with an astragal on the active door.
