G-U Ferco Rhino 5-Point Multipoint Lock Kit – 50mm Backset, 92mm PZ

G-U Ferco Rhino 5-Point Multipoint Lock Kit – 50mm Backset, 92mm PZ

SKU 6-UA416-50-0-8-KIT

$295.00 - $295.00
$295.00
$295.00 - $295.00
$295.00
  • PZ: 3-5/8" (92mm)
  • Backset: 2" (50mm)
  • Handle Height: 35" (889mm)
  • Faceplate Width: 5/8" (16mm)
  • Faceplate Finish: Stainless Steel
  • Overall Length: 79-1/4" (2060mm) – cropable for shorter heights
  • Lock Body Style: Europa (key below handle)
  • Cylinder Type: American cylinder with flat tail piece
  • Handle to Top Hook: 22-3/8" (568mm) center to center
  • Handle to Bottom Hook: 25-15/16" (659mm) center to center

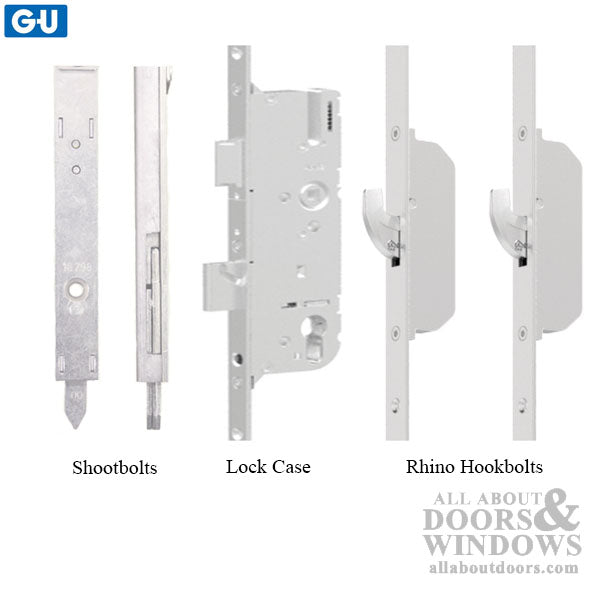

  • 5-point locking: 2 Rhino hookbolts, 2 shootbolts, and 1 deadbolt
  • Fits door panels up to 90" (2286mm) tall
  • Priced and sold as a package
Visa Mastercard American Express Discover
Estimated Delivery
Between December 13 and December 17
*Delivery dates are estimates and may vary based on availability and shipping method

G-U Ferco Rhino 5-Point Lock Kit – 50/92 (6-UA416-50-0-8-KIT)

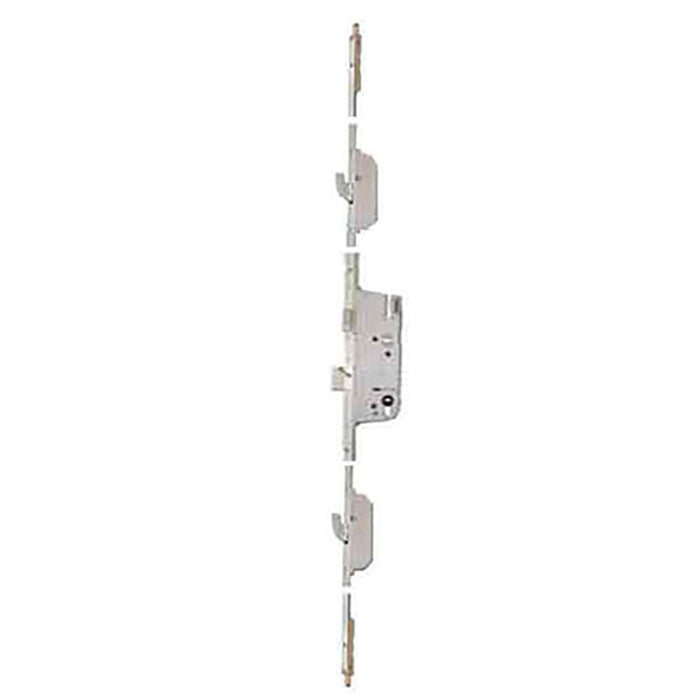

This G-U Ferco Rhino active 5-point multipoint lock kit provides robust security for entry doors. The system features 2 Rhino hookbolts, 2 shootbolts, and a deadbolt for comprehensive protection at multiple points along the door edge.

Designed for door panels up to 90 inches tall, this lock kit has an overall length of 79-1/4 inches and can be cropped to accommodate shorter door heights. The Europa-style lock body positions the key cylinder below the handle.

The lock operates with a 2-inch (50mm) backset and 3-5/8 inch (92mm) PZ measurement. It requires an American cylinder with a flat tail piece. The stainless steel faceplate measures 5/8 inch (16mm) wide.

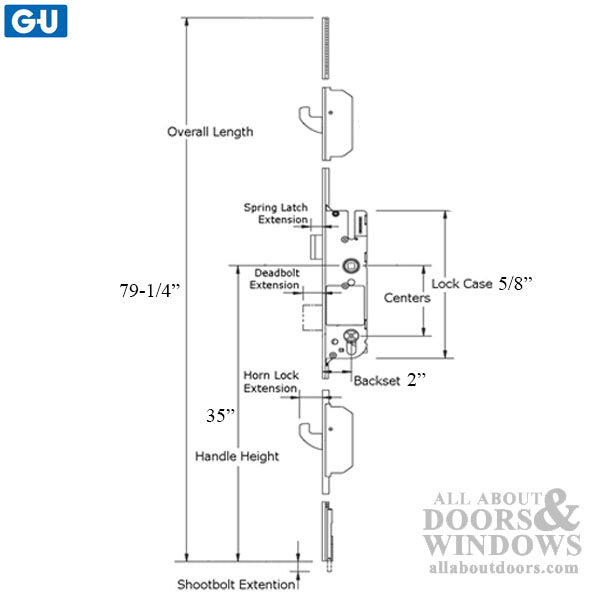

Technical Information

  • Handle Height: 35 inches (889mm)
  • Backset: 2 inches (50mm)
  • PZ (Handle to Cylinder Center): 3-5/8 inches (92mm)
  • Overall Length: 79-1/4 inches (2060mm)
  • Faceplate Width: 5/8 inch (16mm)
  • Handle to Top Hook: 22-3/8 inches (568mm) center to center
  • Handle to Bottom Hook: 25-15/16 inches (659mm) center to center
  • Cylinder Type: American cylinder with flat tail piece
  • Lock Body Style: Europa (key below handle)
  • Locking Points: 5 (2 Rhino hookbolts, 2 shootbolts, 1 deadbolt)

Notes

  • For door panels greater than 90 inches, extensions can be purchased separately
  • Contact our office for extension ordering information
  • Gear is cropable for shorter door heights

Priced and sold as a package.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What cylinder type does this G-U Ferco lock require?

This lock requires an American cylinder with a flat tail piece.

Can this lock be shortened for doors under 90 inches?

Yes, the gear is cropable and can be adjusted for shorter door heights from its maximum 79-1/4 inch length.

What if my door is taller than 90 inches?

For door panels greater than 90 inches, extensions can be purchased separately. Contact our office for ordering information.
