GU Secury Europa Rhino Multipoint Lock – 50mm Backset, 92mm PZ, Key Below

GU Secury Europa Rhino Multipoint Lock – 50mm Backset, 92mm PZ, Key Below

SKU 6-33440-01-0-FG

$272.98 - $272.98
$272.98
$272.98 - $272.98
$272.98
  • PZ (Handle to Cylinder): 3-5/8" (92mm)
  • Backset: 2" (50mm)
  • Faceplate Width: 5/8" (16mm)
  • Faceplate Finish: Silver Ferguard
  • Handle Height: 35" (889mm)
  • Overall Length: 78-15/16" (2005mm)
  • Cylinder Type: American with flat tailpiece
  • Key Position: Below handle
  • Deadbolt Projection: 3/4" (20mm)
  • Hookbolt Projection: 1" (25mm)
  • Hookbolt Spacing: 49-3/8" (1254mm) centers
  • Spindle: 5/16" (8mm) square
  • Europa Rhino 3-point hookbolt lock system

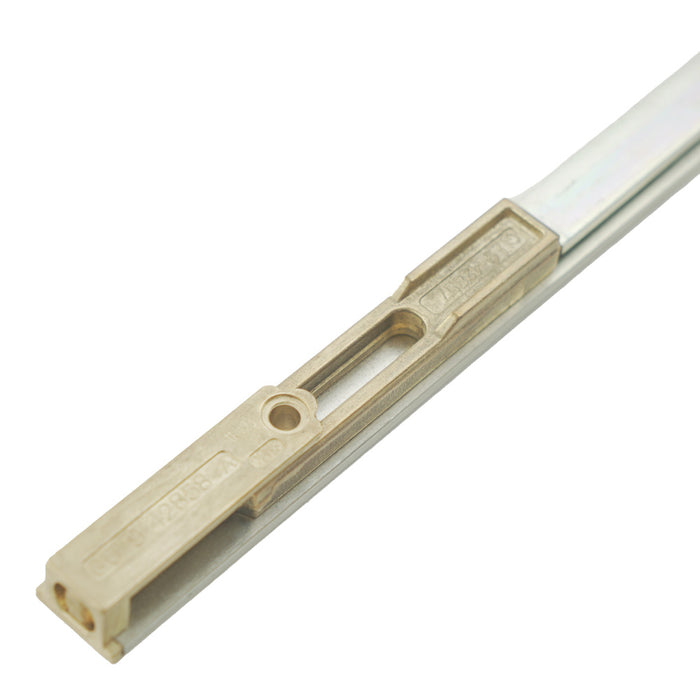

  • Adjustable top allows additional extensions for taller doors
  • Sold individually
Visa Mastercard American Express Discover
Estimated Delivery
Between December 13 and December 17
*Delivery dates are estimates and may vary based on availability and shipping method

GU Secury Europa Rhino Multipoint Lock – 50/92 (6-33440-01-0-FG)

This GU Secury Europa Rhino multipoint lock is a 3-point hookbolt locking system designed for secure entry door applications. The lock features key-below-handle configuration with an American cylinder type using a flat tailpiece.

With a 2-inch (50mm) backset and 3-5/8 inch (92mm) PZ measurement, this lock body has an overall length of 78-15/16 inches (2005mm) and a handle height of 35 inches (889mm). The adjustable top design allows for additional extensions to accommodate taller doors.

The lock provides robust security with a 3/4-inch (20mm) deadbolt projection and 1-inch (25mm) hookbolt projection. The two hookbolts are positioned at 18-3/8 inches (466.7mm) and 31 inches (787.4mm) from the center of the handle, with 49-3/8 inches (1254mm) spacing between hookbolt centers.

Technical Information

  • PZ (Handle to Cylinder): 3-5/8 inches (92mm)
  • Backset: 2 inches (50mm)
  • Faceplate Width: 5/8 inch (16mm)
  • Faceplate Finish: Silver Ferguard
  • Handle Height: 35 inches (889mm)
  • Overall Length: 78-15/16 inches (2005mm)
  • Spindle: 5/16 inch (8mm) square
  • Cylinder Type: American with flat tailpiece
  • Deadbolt Projection: 3/4 inch (20mm)
  • Hookbolt Projection: 1 inch (25mm)
  • Bottom Hookbolt Location: 18-3/8 inches (466.7mm) from handle center
  • Top Hookbolt Location: 31 inches (787.4mm) from handle center
  • Hookbolt Spacing: 49-3/8 inches (1254mm) centers

Notes

  • Numbers on orange label on lock case box: 6-33105-AT-0-050-92-8 = Backset - Handle Spacing - Spindle Diameter
  • Adjustable top allows additional extensions for taller door applications

Priced and sold each.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What cylinder type does this GU multipoint lock use?

This lock uses an American cylinder with a flat tailpiece.

Can this lock be extended for taller doors?

Yes, the adjustable top design allows for additional extensions to accommodate taller door applications.

What does the 92mm PZ measurement mean?

PZ refers to the distance from the center of the handle to the center of the cylinder (keyhole), which is 3-5/8 inches or 92mm on this lock.
