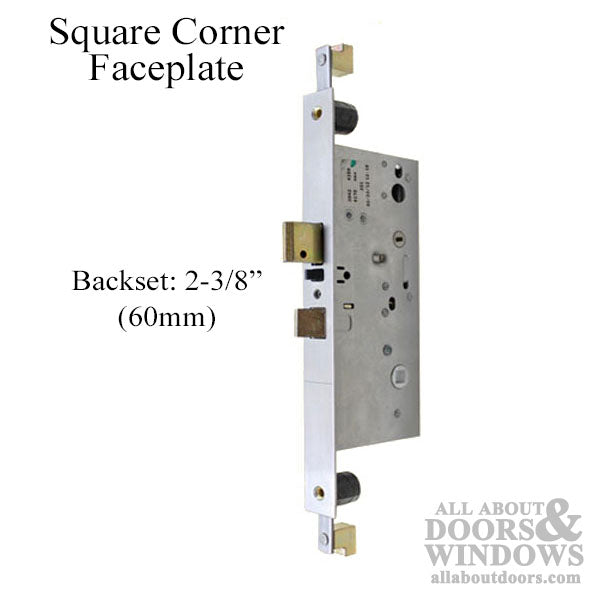

Multipoint Mortise Lock for Concealed Vertical Rods – 60mm Backset, 92mm PZ

Multipoint Mortise Lock for Concealed Vertical Rods – 60mm Backset, 92mm PZ

SKU: 4991631

$164.40 - $164.40
$164.40
$164.40 - $164.40
$164.40
  • PZ: 3-5/8" (92mm)
  • Backset: 2-3/8" (60mm)
  • Faceplate Width: 1-1/16" (27mm)
  • Faceplate Length: 10-3/8" (263.5mm)
  • Standoff: Long, 1" (25.4mm) thick plastic
  • Coupling Thread: 1/4-20
  • For active doors with concealed vertical rods
  • Compatible with vinyl doors including Milgard, Marvin, and others
  • Sticker may read: 3149 61100390
  • Reversible latch for left or right hand doors
  • Sold each – lock body only, rods not included
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Not sure this is the right part?
Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .
*We have a fully-staffed customer support team happy to help!

Multipoint Mortise Lock – 60/92 (4991631)

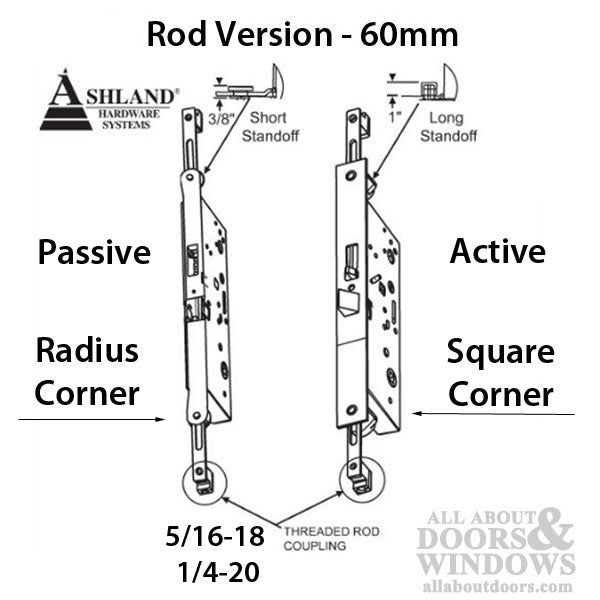

This multipoint mortise lock body is designed for active doors with concealed vertical rod systems. It is commonly used on vinyl doors from manufacturers such as Milgard, Marvin, and similar brands.

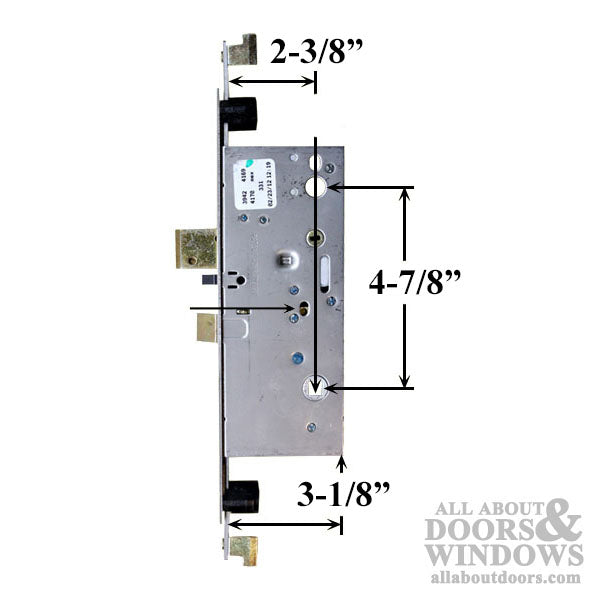

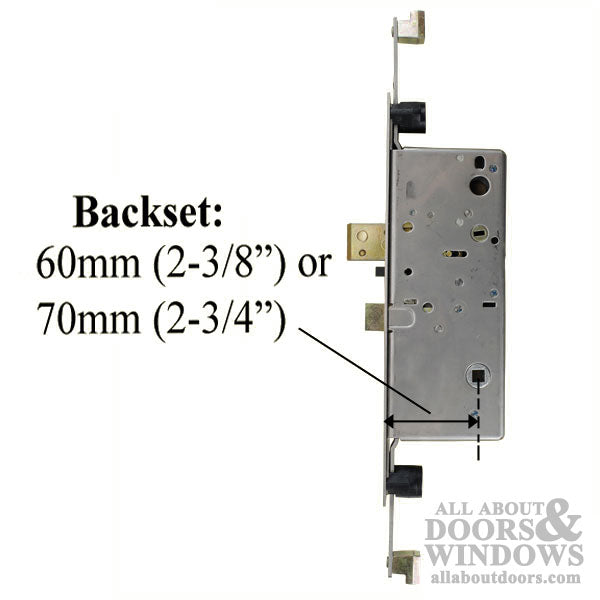

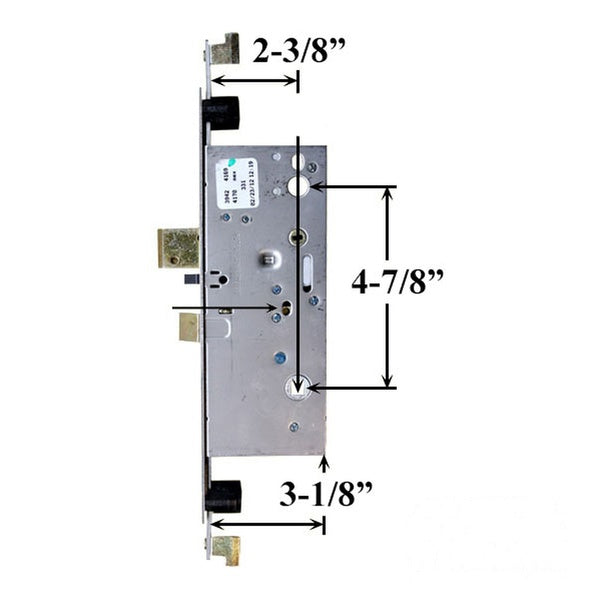

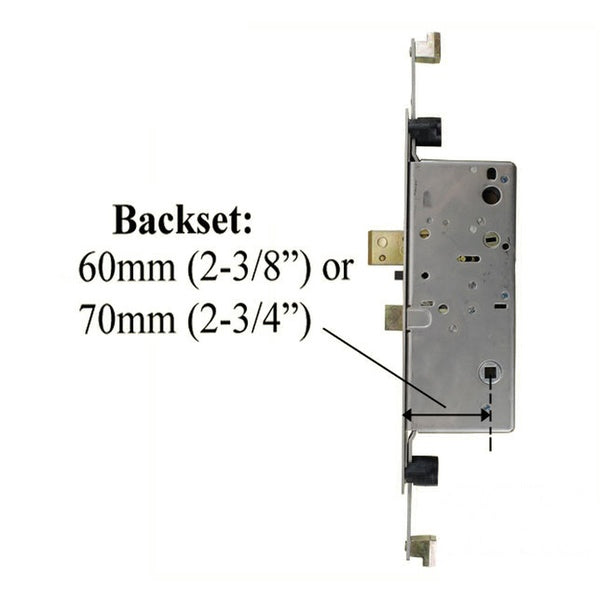

The lock features a 2-3/8 inch (60mm) backset and 3-5/8 inch (92mm) PZ spacing. The attached faceplate measures 10-3/8 inches (263.5mm) in length and 1-1/16 inches (27mm) in width. A long 1-inch (25.4mm) thick plastic standoff is included, and the coupling thread is 1/4-20.

Stamped With

  • Sticker may display: 3149 61100390 or similar numbers with date codes

Technical Information

  • Backset: 2-3/8 inches (60mm)
  • PZ Spacing: 3-5/8 inches (92mm)
  • Faceplate Length: 10-3/8 inches (263.5mm)
  • Faceplate Width: 1-1/16 inches (27mm)
  • Standoff: 1 inch (25.4mm) thick plastic
  • Coupling Thread: 1/4-20
  • Faceplate Attached: Yes

Notes

  • Similar to Strybuc Industries part number 56-121
  • Lift handle to extend rods, turn key or thumbturn to extend deadbolt
  • Latch handing can be reversed: insert screwdriver into slot behind latch, pull down on handing release, rotate latch, and push back into lock case
  • Always check lock function before closing the door

Related Parts

  • Strybuc Industries 56-121 (similar or same part)

Priced and sold each. Lock body only – vertical rods are not included.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

How do I operate this multipoint lock?

Lift the handle to extend the vertical rods, then turn the key or thumbturn to extend the deadbolt.

Can I change the handing on this lock?

Yes, insert a screwdriver into the slot behind the latch, pull down on the handing release until the latch pops out, rotate it, and push it back into the lock case.

What does PZ mean?

PZ refers to the distance from the center of the handle to the center of the keyhole or cylinder, measured in millimeters. This lock has a 92mm PZ spacing.
