Trilennium 3000 Series Grip Handle for Multipoint Locks – Left Hand, SC1 Keyway, Satin Nickel

Trilennium 3000 Series Grip Handle for Multipoint Locks – Left Hand, SC1 Keyway, Satin Nickel

SKU

$539.01 - $690.73
$539.01
$539.01 - $690.73
$539.01
  • PZ (Handle to Cylinder): 6" (152.4mm)
  • Handing: Left Hand (as shown)
  • Keyway: Schlage 5-pin cylinder, SC1 key
  • Door Cross Bore: Standard 2-1/8" (54mm)
  • Door Thickness: 1-3/4" (44.5mm); 2-1/4" (57.2mm) available by special order
  • Escutcheon Plate: 2-7/16" (61.9mm) wide x 10-1/4" (260.4mm) long
  • Finish: Lifetime Brushed/Satin Nickel
  • Designed for active multipoint locks including Trilennium 3-point systems
  • Compatible with Pella, Peachtree IPD, W&F, and other leading door brands
  • Limited stock; may require up to 2-week lead time
Visa Mastercard American Express Discover
Estimated Delivery
Between December 11 and December 15
*Delivery dates are estimates and may vary based on availability and shipping method

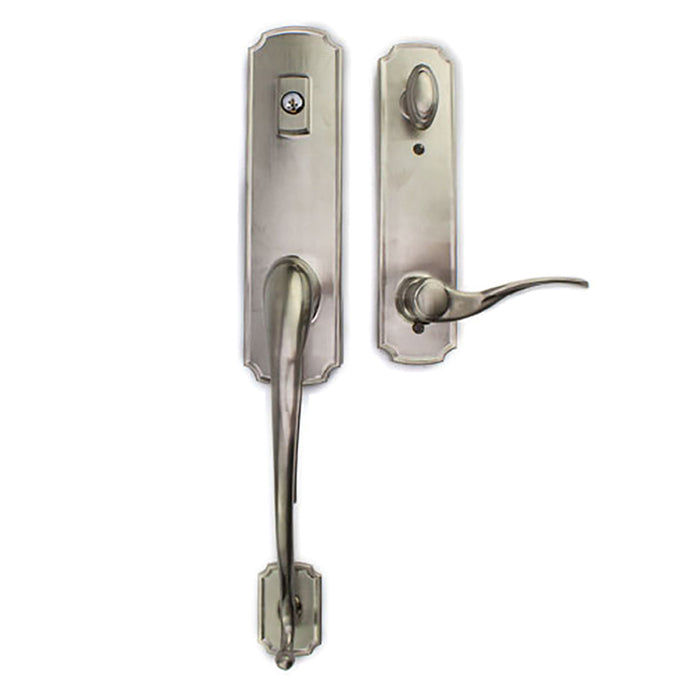

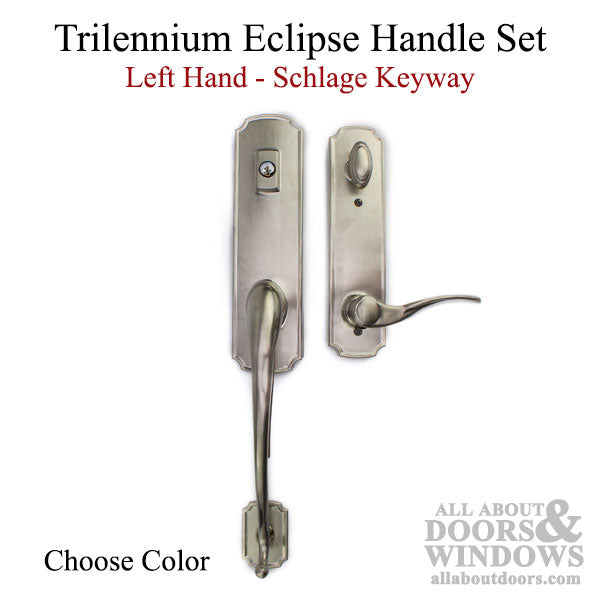

Trilennium Grip Handle – Left Hand, SC1, Satin Nickel (499130101-SC1)

The Trilennium 3000 Series Grip Handle provides a stylish and secure solution for entry doors equipped with active multipoint locks. This left-hand grip handle is designed to work with Trilennium 3-point locking systems and is commonly found on doors from Pella, Peachtree IPD, W&F, and other leading manufacturers.

Featuring a Schlage 5-pin cylinder with SC1 keyway, this handle offers reliable security and easy key compatibility. The handle is handed due to the internal lever and torque body configuration, so be sure to verify your door's handing before ordering.

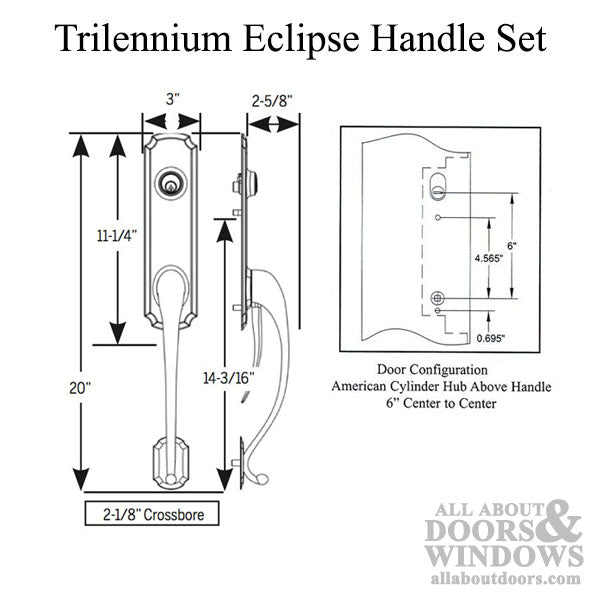

Technical Information

  • PZ (Handle to Cylinder Center): 6 inches (152.4mm)
  • Door Cross Bore: Standard 2-1/8 inches (54mm)
  • Escutcheon Plate Width: 2-7/16 inches (61.9mm)
  • Escutcheon Plate Length: 10-1/4 inches (260.4mm)
  • Door Thickness: 1-3/4 inches (44.5mm); 2-1/4 inches (57.2mm) available by special order
  • Keyway: Schlage 5-pin cylinder, SC1 key
  • Handing: Left Hand
  • Finish: Lifetime Brushed/Satin Nickel

Notes

  • Lock cross bore sizes vary by manufacturer: Pella standard entry doors with Trilennium locks use 2-1/8 inch cross bore, while Peachtree IPD uses 1-11/16 inch cross bore
  • Pinnacle, Eclipse, and Grip hardware will cover all bore sizes
  • Emtek and Horizon hardware is 2 inches wide and covers the optional 1-11/16 inch cross bore

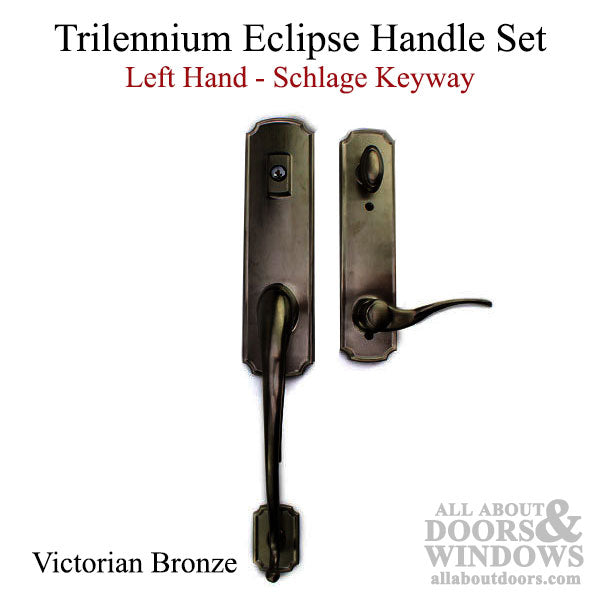

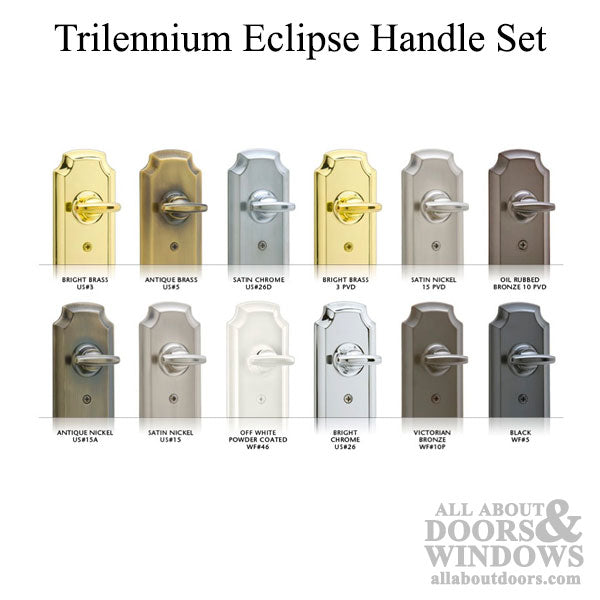

  • Victorian Bronze finish also available; contact us for additional color options

This item is available in limited stock and may require up to a 2-week lead time for ordering.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

How do I determine if I need a left-hand or right-hand grip handle?

Stand outside facing your door. If the hinges are on the left side and the door swings inward, you have a left-hand door and need a left-hand grip handle like this one.

What is the PZ measurement and why does it matter?

PZ is the distance from the center of the handle to the center of the key cylinder. This handle has a 6-inch PZ, which must match your existing door preparation for proper fit.

Will this grip handle fit my Pella door with a Trilennium lock?

Yes, this handle is designed for Trilennium 3-point locking systems and is compatible with Pella standard entry doors that use a 2-1/8 inch cross bore.
