Trilennium 3070 Series Multipoint Lock – 60mm Backset, Right-Hand Inswing

SKU

$420.80 - $546.84

$420.80

$420.80 - $546.84

$420.80

Backset: 2-3/8" (60mm)
Faceplate Width: 7/8" (22mm) – also available in 1" width
Faceplate Length: 65-9/16" (1665.3mm) with radius ends
Faceplate Finish: Stainless Steel
Deadbolt Throw: 15/16" (23.8mm)
Top Latching Bolt: 33-3/32" (840.6mm)
Bottom Latching Bolt: 24-5/16" (617.5mm)
Cylinder Type: American with flat tailpiece
Handing: Right-Hand Inswing (set up for inswing doors)
Crossbore Options: 2-1/8" standard or 1-11/16" optional
Panic release function – pressing inside handle unlocks door
Assembly only – strike plates not included
Sold individually

Quantity

Estimated Delivery

Between December 13 and December 17

*Delivery dates are estimates and may vary based on availability and shipping method

Product Details

Trilennium 3070 Multipoint Lock – 60mm Backset, RHIS (499130074)

The Trilennium 3070 Series Multipoint Lock delivers enhanced security with durable locking latch bolts. This lock is frequently used by Pella and other door manufacturers, making it a reliable replacement option for multipoint door systems.

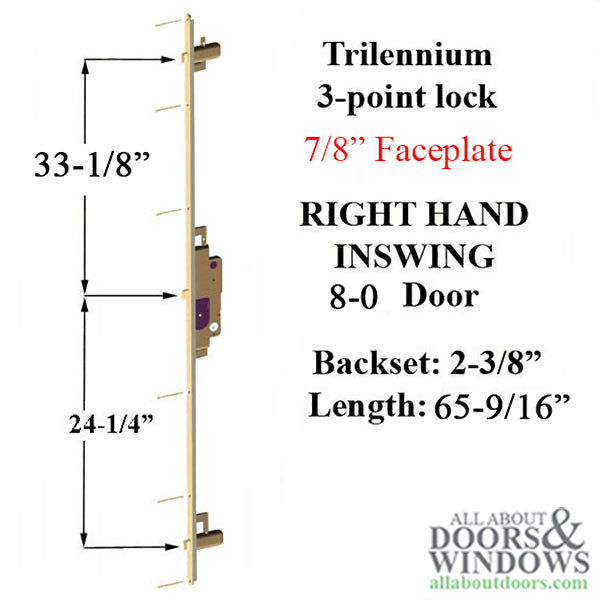

This lock assembly features a 2-3/8 inch (60mm) backset with a 7/8 inch (22mm) wide stainless steel faceplate measuring 65-9/16 inches (1665.3mm) in length with radius ends. The deadbolt throw extends 15/16 inches (23.8mm), while the top latching bolt reaches 33-3/32 inches (840.6mm) and the bottom latching bolt extends 24-5/16 inches (617.5mm).

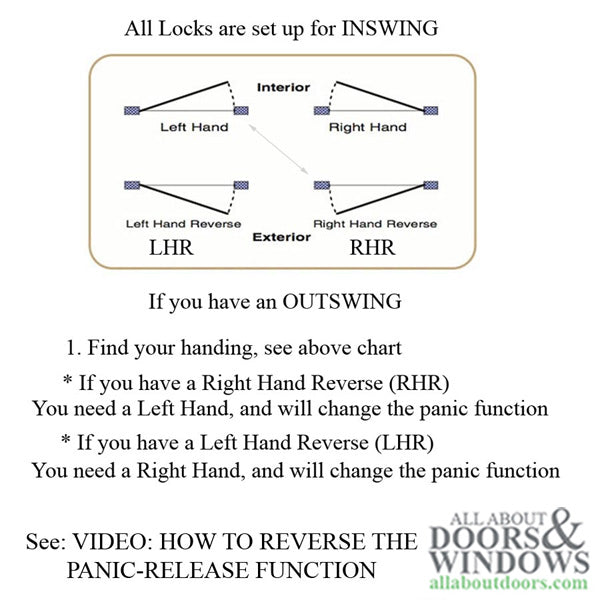

This unit is configured for Right-Hand Inswing doors. All locks in this series are set up for inswing doors. If you have an outswing door, the panic function must be changed before installation. For outswing applications, use the opposite handing and change the panic function (LHIS would use an RHIS lock).

Technical Information

Backset: 2-3/8 inches (60mm)
Faceplate Width: 7/8 inch (22mm)
Faceplate Length: 65-9/16 inches (1665.3mm)
Deadbolt Throw: 15/16 inch (23.8mm)
Top Latching Bolt: 33-3/32 inches (840.6mm)
Bottom Latching Bolt: 24-5/16 inches (617.5mm)
Spindle Diameter: 1/4 inch (7mm)
Cylinder Type: American with flat tailpiece
Standard Crossbore: 2-1/8 inches
Optional Crossbore: 1-11/16 inches
Country of Origin: Made in USA

Notes

Faceplate widths can be 7/8 inch or 1 inch wide
Handle moves down only
To lock: Use key or thumb turn to extend latch to deadbolt function
To unlock: Use key outside or thumb turn/lever inside
Panic release: Pressing down on the inside handle will unlock the door
Standard 2-1/8 inch crossbore works with Trilennium Pinnacle, Eclipse, Rectangular, Curved, or Grip Hardware
Optional 1-11/16 inch crossbore requires handle plate width of 1-7/8 inches or wider
Horizon, Europa, and Emtek plates (1-7/8 to 2 inches wide) will not cover the 2-1/8 inch crossbore used by Pella and other doors with larger holes
Rocky Mountain 2-1/2 inch wide plate fits either crossbore

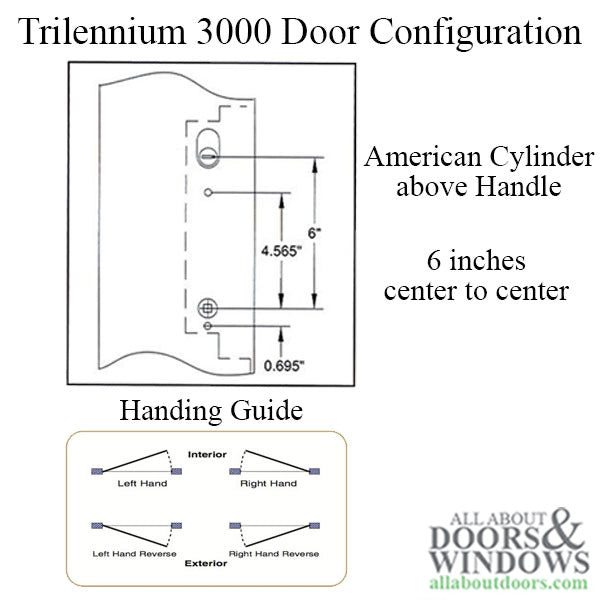

Handing determined by hinge location as viewed from outside – hinge on right means right-hand door

Related Parts

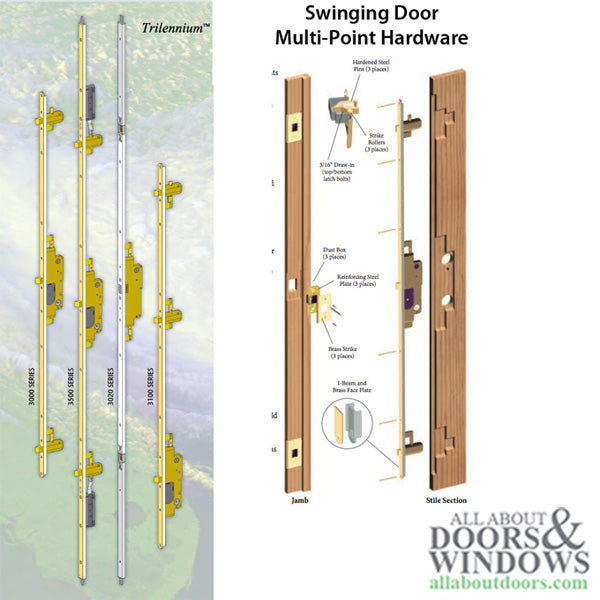

499130054 - Strike kit with 3 strikes, 3 reinforcing plates, 3 dust boxes with screws

Sold individually. Assembly only – strike plates not included.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

How do I determine the handing of my door?

As viewed from the outside of the door, look at where the hinges are located. If the hinges are on the right side, you have a right-hand door.

Can I use this lock on an outswing door?

Yes, but the panic function must be changed before installation. For outswing doors, use the opposite handing lock and change the panic function setting.

What handlesets are compatible with this lock?

For the standard 2-1/8 inch crossbore, use Trilennium Pinnacle, Eclipse, Rectangular, Curved, or Grip Hardware. Rocky Mountain 2-1/2 inch wide plates fit either crossbore option.
