Trilennium 3070 Multipoint Lock – 60mm Backset, Right Hand Inswing

SKU

$460.23 - $545.70

$460.23

$460.23 - $545.70

$460.23

Backset: 2-3/8" (60mm)
PZ: Not specified - contact us for measurement assistance
Faceplate Width: 7/8" (22mm)

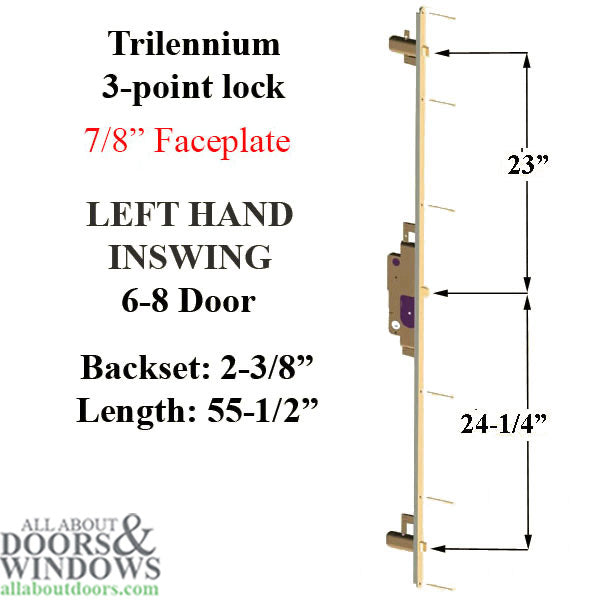

Faceplate Length: 55-1/2" (1410mm) with radius ends
Faceplate Color: Stainless Steel
Deadbolt Throw: 15/16" (24mm)
Top Latching Bolt: 23" (584mm)
Bottom Latching Bolt: 24-1/4" (616mm)
Spindle Diameter: 1/4" (7mm)
Cylinder Type: American with flat tail piece
Handing: Right-handed inswing (reversible)
Crossbore: 2-1/8" standard or 1-11/16" optional
Panic release function included
Lock assembly only - no strike plates included
Sold individually

Quantity

Estimated Delivery

Between December 13 and December 17

*Delivery dates are estimates and may vary based on availability and shipping method

Product Details

Trilennium 3070 Multipoint Lock – 60mm Backset, RH Inswing (499130072)

This Trilennium 3070 series multipoint lock features locking latch bolts and is commonly used by Pella and other door manufacturers. The lock assembly includes a deadbolt and two latching bolts for secure multi-point engagement.

This lock is set up for right-handed inswing doors but can be reversed for left-hand applications. As viewed from outside, the hinge determines handing - if the hinge is on the right, it is a right-hand door. For outswing doors, the panic function and latches need to be changed before installation.

The lock operates with a downward handle motion only. To lock, use the key or thumb turn to extend the latch to deadbolt function. To unlock, use the key from outside or the thumb turn/lever from inside. The panic release feature allows the inside handle to unlock the door when pressed down.

Technical Information

Backset: 2-3/8 inches (60mm)
Faceplate Width: 7/8 inch (22mm)
Faceplate Length: 55-1/2 inches (1410mm) with radius ends
Faceplate Color: Stainless Steel
Deadbolt Throw: 15/16 inch (24mm)
Top Latching Bolt: 23 inches (584mm)
Bottom Latching Bolt: 24-1/4 inches (616mm)
Spindle Diameter: 1/4 inch (7mm)
Cylinder Type: American with flat tail piece
Standard Crossbore: 2-1/8 inches
Optional Crossbore: 1-11/16 inches
Country of Origin: Made in USA

Notes

All locks are set up for inswing doors - outswing doors require panic function and latch changes before installation
Faceplate widths can vary between 7/8 inch and 1 inch
Standard 2-1/8 inch crossbore works with Trilennium Pinnacle, Eclipse, Rectangular, Curved, or Grip hardware
Optional 1-11/16 inch crossbore requires handle plates 1-7/8 inches or wider
Horizon, Europa, and Emtek plates (1-7/8 to 2 inches wide) will not cover the 2-1/8 inch crossbore used by Pella doors
Rocky Mountain 2-1/2 inch wide plates fit either crossbore size

Related Parts

499130054 - Optional strike kit including 3 strikes, 3 reinforcing plates, 3 dust boxes with screws

Sold individually. Lock assembly only - strike plates not included.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

How do I determine if this lock will fit my door?

Measure your backset (edge of door to center of handle bore) - this lock has a 2-3/8 inch (60mm) backset. Also check your crossbore size: standard is 2-1/8 inches, optional is 1-11/16 inches.

Can I use this lock on an outswing door?

Yes, but the panic function and latches need to be changed before installation since all locks ship set up for inswing doors.

What handle hardware is compatible with this lock?

For the standard 2-1/8 inch crossbore, use Trilennium Pinnacle, Eclipse, Rectangular, Curved, or Grip hardware. Rocky Mountain 2-1/2 inch wide plates fit either crossbore size.
