Trilennium 3070 Series Multipoint Lock – 60mm Backset, Left Hand Inswing

SKU

$414.18 - $414.18

$414.18

$414.18 - $414.18

$414.18

Backset: 2-3/8" (60mm)
PZ: Not specified - contact us for measurement assistance
Faceplate Width: 7/8" (22mm) - also available in 1" width
Faceplate Length: 55-1/2" (1410mm) with radius ends
Faceplate Color: Stainless Steel
Deadbolt Throw: 15/16" (24mm)

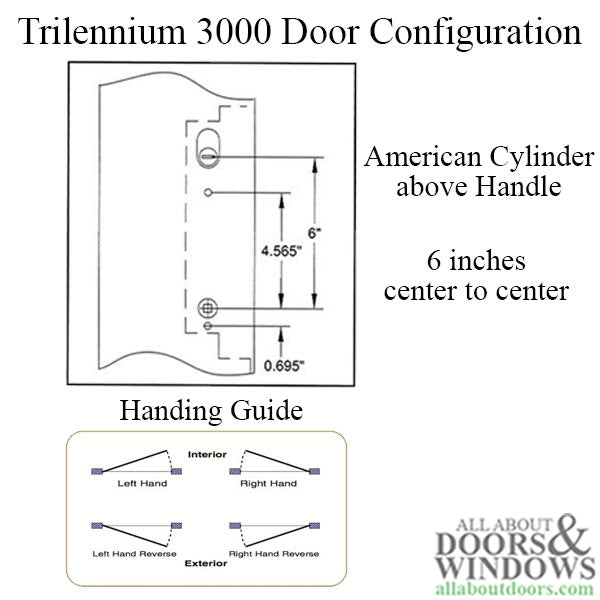

Cylinder Type: American with flat tailpiece
Handing: Left-hand inswing (reversible)
Panic Release: Yes - inside handle unlocks door
Standard Cross Bore: 2-1/8" (54mm)
Optional Cross Bore: 1-11/16" (43mm)
Set up for inswing doors - outswing requires modification before installation
Made in USA
Sold as assembly only - strike plates not included

Quantity

Estimated Delivery

Between December 13 and December 17

*Delivery dates are estimates and may vary based on availability and shipping method

Product Details

Trilennium 3070 Multipoint Lock – 60mm Backset, Left Hand (499130071)

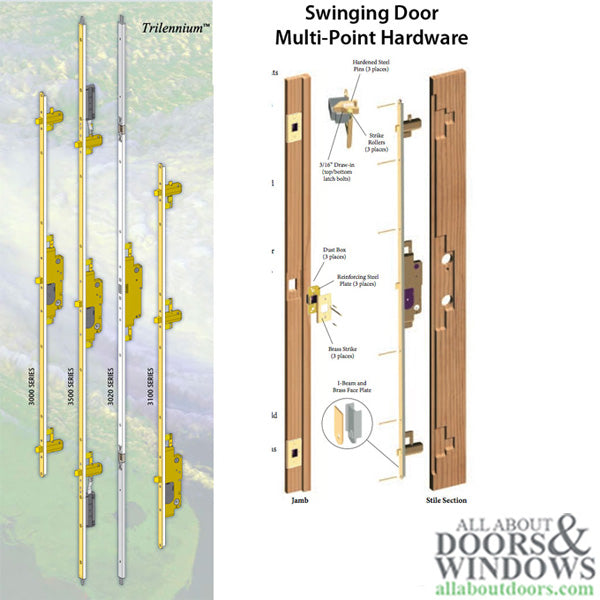

The Trilennium 3070 Series Multipoint Lock delivers enhanced security through its locking latch bolt design. This lock is commonly used by Pella and other door manufacturers, making it an excellent replacement option for existing multipoint lock systems.

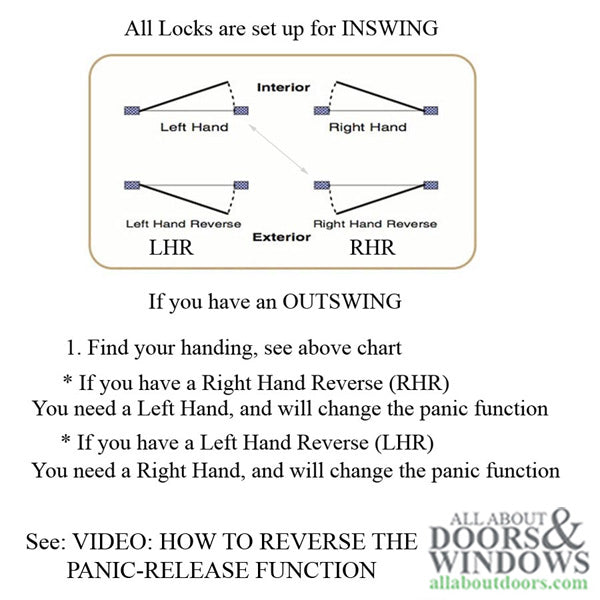

This assembly comes set up for left-hand inswing doors. If you have an outswing door, the panic function and latches must be changed before installation. The lock can be reversed for right-hand applications - see the video below for instructions.

Technical Information

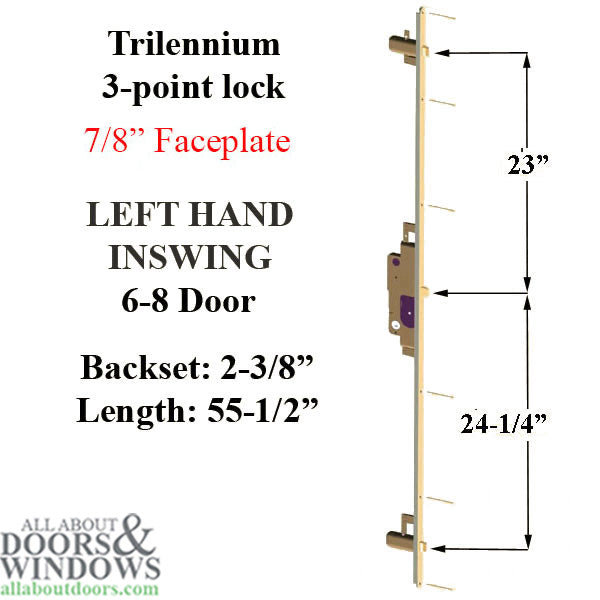

Backset: 2-3/8 inches (60mm)
Faceplate Width: 7/8 inch (22mm) - note that faceplate widths can be 7/8 or 1 inch wide
Faceplate Length: 55-1/2 inches (1410mm) with radius ends
Faceplate Color: Stainless Steel
Deadbolt Throw: 15/16 inch (24mm)
Top Latching Bolt: 23 inches (584mm)
Bottom Latching Bolt: 24-1/4 inches (616mm)
Spindle Diameter: 1/4 inch (7mm)
Cylinder Type: American with flat tailpiece
Handing: Left-hand inswing (reversible)
Made in: USA

Notes

Handle moves down only
To lock: Use key or thumb turn - extends latch to deadbolt function
To unlock: Use key outside or thumb turn/lever inside
Panic Release: Pressing down on inside handle will unlock door
As viewed from outside, hinge determines handing - if hinge is on left, it is a left-hand door
Standard Cross Bore: 2-1/8 inches - compatible with Trilennium Pinnacle, Eclipse, Rectangular, Curved, or Grip Hardware
Optional Cross Bore: 1-11/16 inches - requires handle plate width 1-7/8 inches or wider
The Horizon, Europa, and Emtek plates are only 1-7/8 to 2 inches wide and will not cover the 2-1/8 inch crossbore used by Pella and other doors with larger holes
Rocky Mountain 2-1/2 inch wide plate fits either crossbore

Related Parts

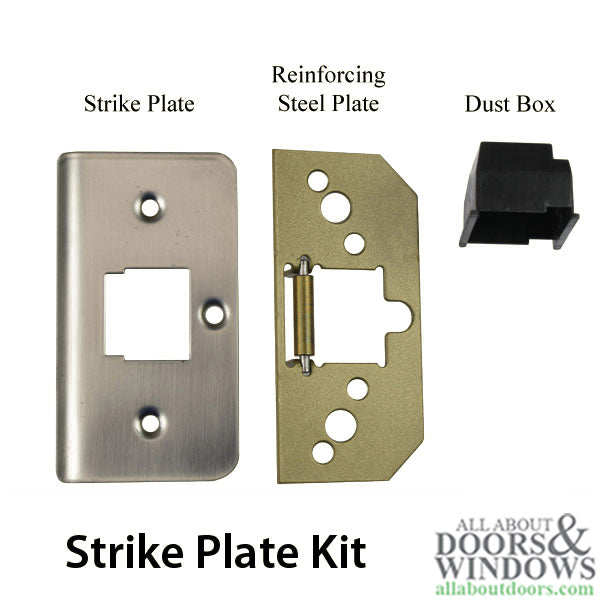

499130054 - Optional strike kit including 3 strikes, 3 reinforcing plates, 3 dust boxes with screws

Sold as assembly only. Strike plates not included.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

How do I determine if I need a left or right hand lock?

As viewed from outside your door, the hinge location determines handing. If the hinge is on the left side, you have a left-hand door.

Can I use this lock on an outswing door?

Yes, but all locks are set up for inswing doors. For outswing applications, the panic function and latches must be changed before installation.

What handle hardware is compatible with this lock?

For the standard 2-1/8 inch crossbore, use Trilennium Pinnacle, Eclipse, Rectangular, Curved, or Grip Hardware. For the optional 1-11/16 inch crossbore, use handle plates 1-7/8 inches or wider.
